Description
Warhorse amplifiers were born to compete. Built to run extremely hard all day
and night, these ultra high-power amps are the product of years of research in
the lanes – and the lab. Every aspect of the Warhorse line was re-assessed and
re-imagined, then tortured mercilessly to ensure performance and the pinnacle of
reliability, from the layout of the board to the rails to the Tiffany RCA connectors,
everything about these amps will make a basshead smile from ear to ear. All this
technology means big power, but don’t forget big reliability! This no-holds-barred
power plant is 100% KICKER quality, which means it passes every test for noise
rejection, THD tolerances, frequency response, and of course – power output. This
is the full package!

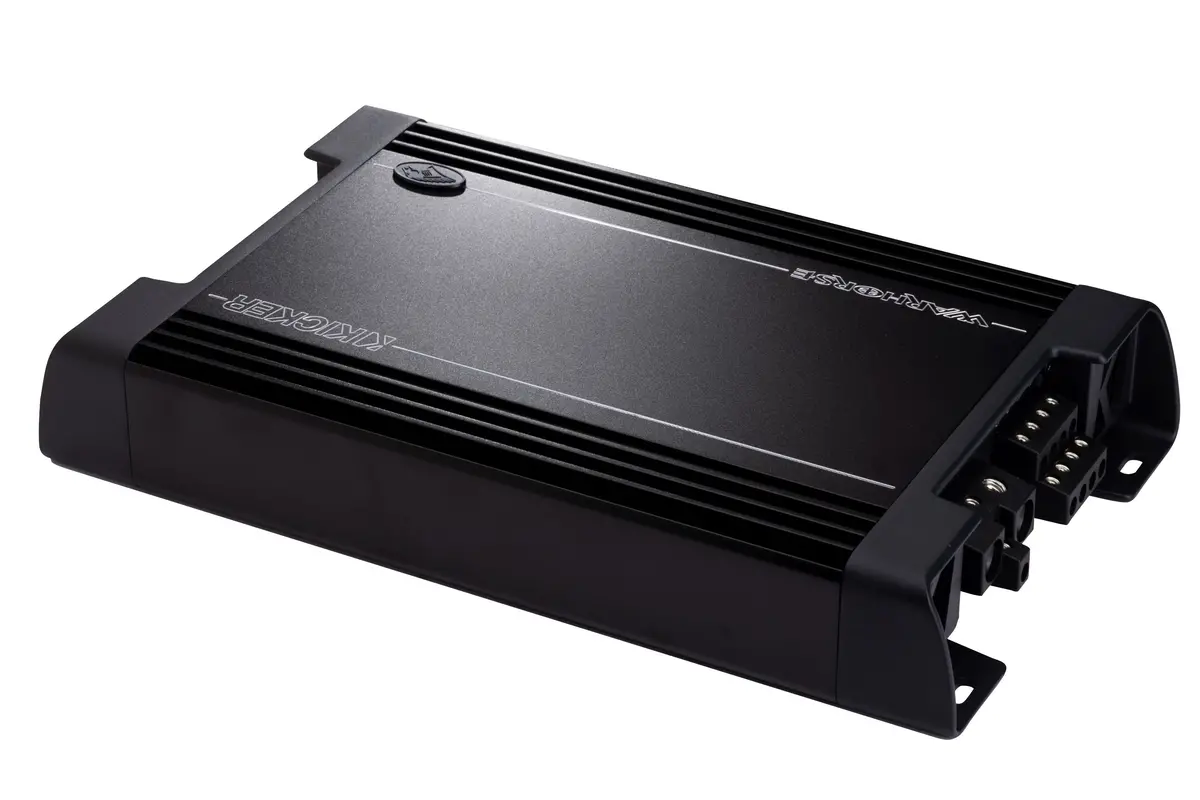

The WXA1000.4 is a full-range beast in its own right. Rated at 250×4 at four Ohms
and 450×4 at 2 Ohms, this amp features 8 AWG speaker outputs. This amp is
more than ready to run a massive multi-speaker door setup in even the loudest
competition vehicle.
Overview
Not your Average Amp
- Fully Start/Stop Compliant – operational down to 6.5V
- Variable Electronic HP/LP/BP Filter for speaker protection
- Quad micro-controller-regulated cooling fans
- Capable of daisy-chaining remote power across multiple amps
- Includes a heavy-duty, magnetic-mount diagnostic tool for monitoring voltage measurements and amp protection status
- Fully compatible with most factory or aftermarket source units (with FIT+ differential inputs)
- 1/0AWG Power & Ground Terminals
- 8AWG Speaker Terminals
- Engineered completely in-house by KICKER R&D
- WARHORSE Install Scenarios: WarhorseInstallScenariosv2.pdf
Specifications
| Model | WXA1000.4 |
| WARHORSE 1000.4 TECH GRAPH DATA | 49WXA10004 Whitepaper PDF |
| WARHORSE 1000.4 Dimensions | 49WXA10004 Product Dimensions PDF |
| What is Competition Mode? | warhorse-competition-mode.pdf |
| Power (@14.4V, <1%THD+N) 4 Ohms Stereo |
250W x 4 |
| Power (@14.4V, <1%THD+N) 2 Ohms Stereo | 450W x 4 |
| Power (@14.4V, <1%THD+N) 4 Ohms Bridged |
900W x 2 |
| **Dynamic Power (watts) 4 Ohms Bridged |
2000W |
| Frequency Response (Hz) | 10-20,000 |
| Signal-to-Noise Ratio (dB; A-weighted, re: rated power) | >90 |
| Signal-to-Noise Ratio (dB; ref: 1W output) | >70 |
| Input Sensitivity | low level 125mV-5V high level 1V-40V |
| Dimensions (in, cm) | H – 2-9/16, 6.5; W – 9-1/8, 23.2; L – 15-3/8, 39.1 |
| Warranty: | 2 Years |
*RMS Power test @ 14.4v @ _ 1% THD+N, Audio Precision analyzer, see www.kicker.com/amp-power-testing for details.
**Dynamic Power test @ 14.4v @ _ 10% THD+N, Audio Precision APx500 analyzer, see www.kicker.com/amp-power-testing for details.
