Description
Warhorse amplifiers were born to compete. Built to run extremely hard all day
and night, these ultra high-power amps are the product of years of research in
the lanes – and the lab. Every aspect of the Warhorse line was re-assessed and
re-imagined, then tortured mercilessly to ensure performance and the pinnacle of
reliability, from the layout of the board to the rails to the Tiffany RCA connectors,
everything about these amps will make a basshead smile from ear to ear. All this
technology means big power, but don’t forget big reliability! This no-holds-barred
power plant is 100% KICKER quality, which means it passes every test for noise
rejection, THD tolerances, frequency response, and of course – power output. This
is the full package!

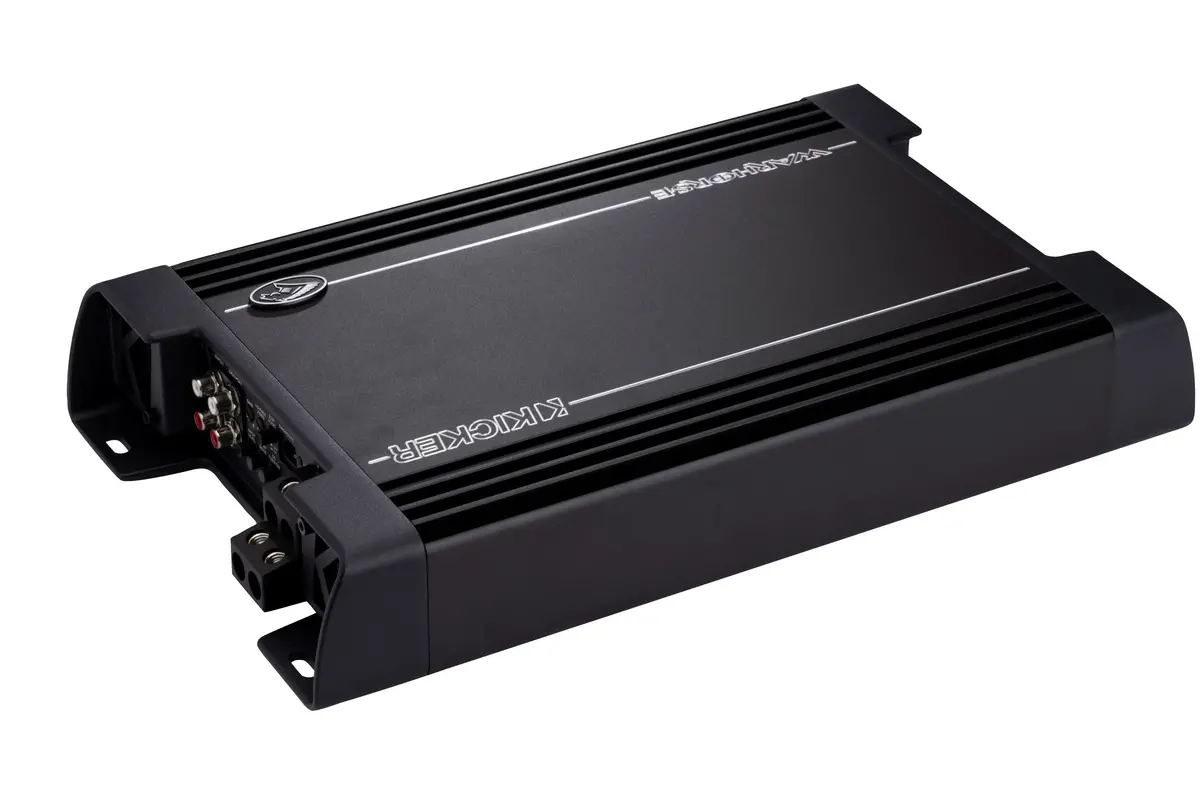

The KICKER Warhorse 3600.1 was built in the spirit of its revolutionary
predecessor. This full-bridge, one-ohm stable amplifier features dual 1/0 power
and ground connections, 4 AWG speaker terminals, and quad microprocessor-
controlled cooling fans for fast, accurate, quiet cooling when you need it. Press
the Competition Mode button, and never worry about gain matching multiple
amplifiers again.
Overview
Not your Average Amp
- Features extreme reliability under intense bass power and overall use
- Full-bridge Class-D design
- Quad micro-controller-regulated cooling fans
- Capable of daisy-chaining remote power across multiple amps
- Competition mode switch to avoid potentiometer creep, fix crossover setting, and gain-match multiple amps
- Includes premium remote bass-level control with a magnetic mount
- Includes a heavy-duty, magnetic-mount diagnostic tool for monitoring voltage measurements and amp protection status
- Fully compatible with most factory or aftermarket source units (with FIT+ differential inputs)
- Engineered completely in-house by KICKER R&D
- WARHORSE Install Scenarios: WarhorseInstallScenariosv2.pdf
Specifications
| Model | WXA3600.1 |
| WARHORSE 3600.1 TECH GRAPH DATA | 49WXA36001 Whitepaper PDF |
| WARHORSE 3600.1 Dimensions | 49WXA36001 Product Dimensions PDF |
| What is Competition Mode? | warhorse-competition-mode.pdf |
| *RMS Power (watts/ch) 1 Ohm Mono (@ 14.4v, <1%THD) | 3600×1 |
| *RMS Power (watts/ch) 2 Ohm Mono (@ 14.4v, <1%THD) | 2500×1 |
| RMS Power (watts/ch) 4 Ohm Mono (@ 14.4v, <0.5%THD) |
1400×1 |
| **Dynamic Power (watts) |
5000 |
| Frequency Response (Hz) | 10-200 |
| Signal-to-Noise Ratio (dB; A-weighted, re: rated power) | >90 |
| Signal-to-Noise Ratio (dB; ref: 1W output) | >70 |
| Input Sensitivity | low level 125mV-5V high level 1V-40V |
| Selectable Electronic Crossover | Variable Low-pass 50-200Hz, 24dB/octave |
| Subsonic Filter | Defeatable @ 15Hz, 24dB/octave |
| Competition Mode | See manual |
| Dimensions (in, cm) | H – 2-9/16, 6.5; W – 9-1/8, 23.2; L – 15-3/8, 39.1 |
| Warranty: | 2 Years |
*RMS Power test @ 14.4v @ _ 1% THD+N, Audio Precision analyzer, see www.kicker.com/amp-power-testing for details.
**Dynamic Power test @ 14.4v @ _ 10% THD+N, Audio Precision APx500 analyzer, see www.kicker.com/amp-power-testing for details.
