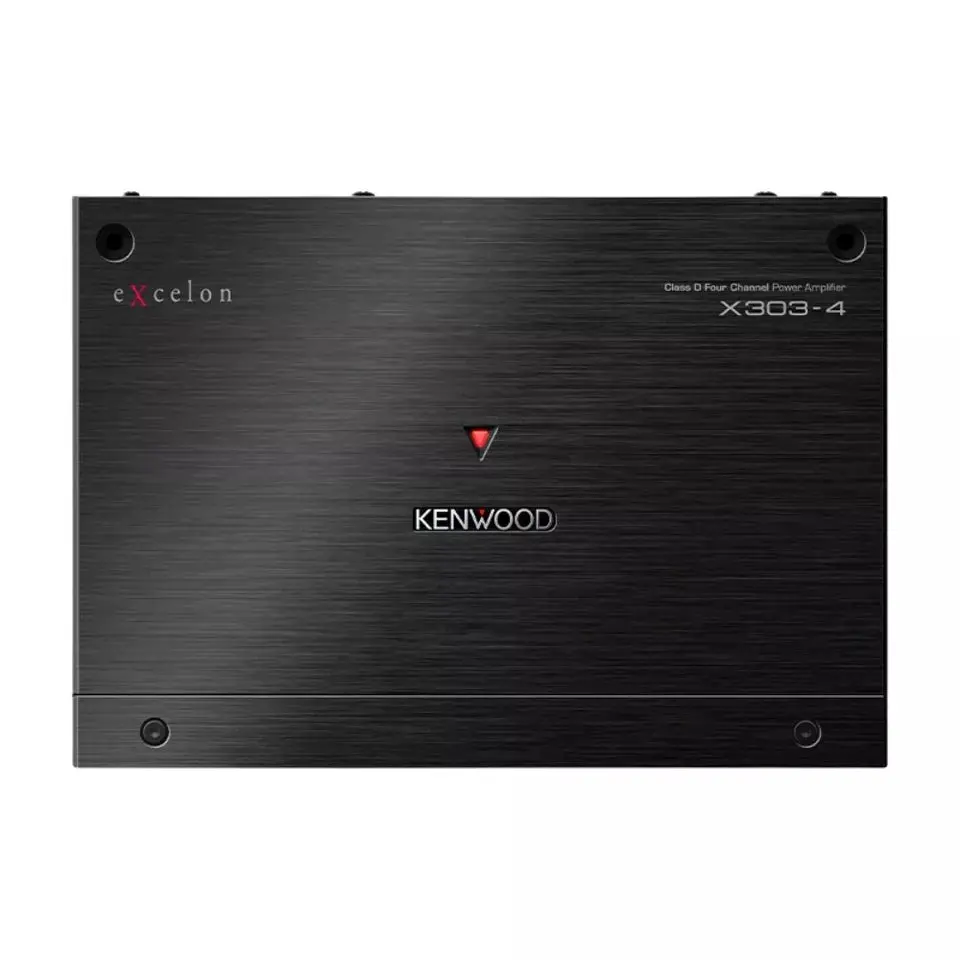

Description
Replaces the X302-4
Highlights
- Max Power 600W
- RMS 50W x4 (4Ω)
- RMS 75W x4 (2Ω)
- Size (inch) (W) 8-3/8″ x (H) 2-1/16″ x (D) 5-7/8″
- High-Resolution Audio Certified
- Variable Low Pass Filter
- Bass Boost
Additional Features
Rich and Immersive High-Resolution Audio
High-Resolution Audio is high-quality sound that exceeds CD standard. High-resolution audio captures and beautifully expresses all the details of your favorite music. Through ultra-high and low frequencies, immerse yourself in a rich and high-quality sonic experience.
Smooth waveforms. Loss of smoothness. Fine waveforms
*The product with this logo is conformed to High-Resolution Audio standard defined by Japan Audio Society. This logo is used under license from Japan Audio Society.
Output Coil with Magnetic Shield
Prevents magnetic flux from radiating from the subwoofer’s coil, resulting in reduced noise and enhanced sound quality.
High Quality Capacitors
PMLCAP’s (Polymer Multi-Layer Capacitors) are utilized in the LC filter circuits to decrease distortion, ensuring clear detail for a truer to life sound.
Gauge-style terminals lock wire
into position with set screw for secure installation.
One-side Connection
All terminals and connections are on one side for easier installation and a cleaner look.
①Fuse (20A x2)
②Battery terminal (POWER IN BATT.)
③Power control terminal
④Ground terminal (GND)
⑤Speaker output terminals (A.ch/B.ch)
⑥Speaker level input terminal
⑦Line in terminal
⑧Input sensitivity control（A.ch/B.ch）
⑨Bass Boost Level control (B.ch）
⑩Filter switch (A.ch/B.ch)
⑪Filter frequency control (A.ch/B.ch)
Speaker Level Input Harness
Speaker Level Input Harness is included to connect to speaker wires from factory installed receivers.
| Max Power | 600W |
| RMS Power Output (4Ω) | 50W x 4 |
| RMA Power Output (2Ω) | 75W x 4 |
| RMS Power Output Bridged | 150w x 2 (Bridged) |
| Features |
Speaker Level Input |
| Dimensions | (W)8-3/8” x (H)2-1/16” x (D)5-7/8” |
| Weight | 3.1lbs (1.4kg) |
