Description
The KICKER LX-Series is a perfect marriage of SQL design and high-powered output, utilizing feedback from the industry to deliver the most requested features while maintaining the highest performance possible. All multi-channel amplifiers are bridgeable and come with a wired control center (LXCC). LX Amps with sub sections come with a robust remote level control (LXRC) featuring SHOCwave2.0™.
Highlights
From the Ground Up

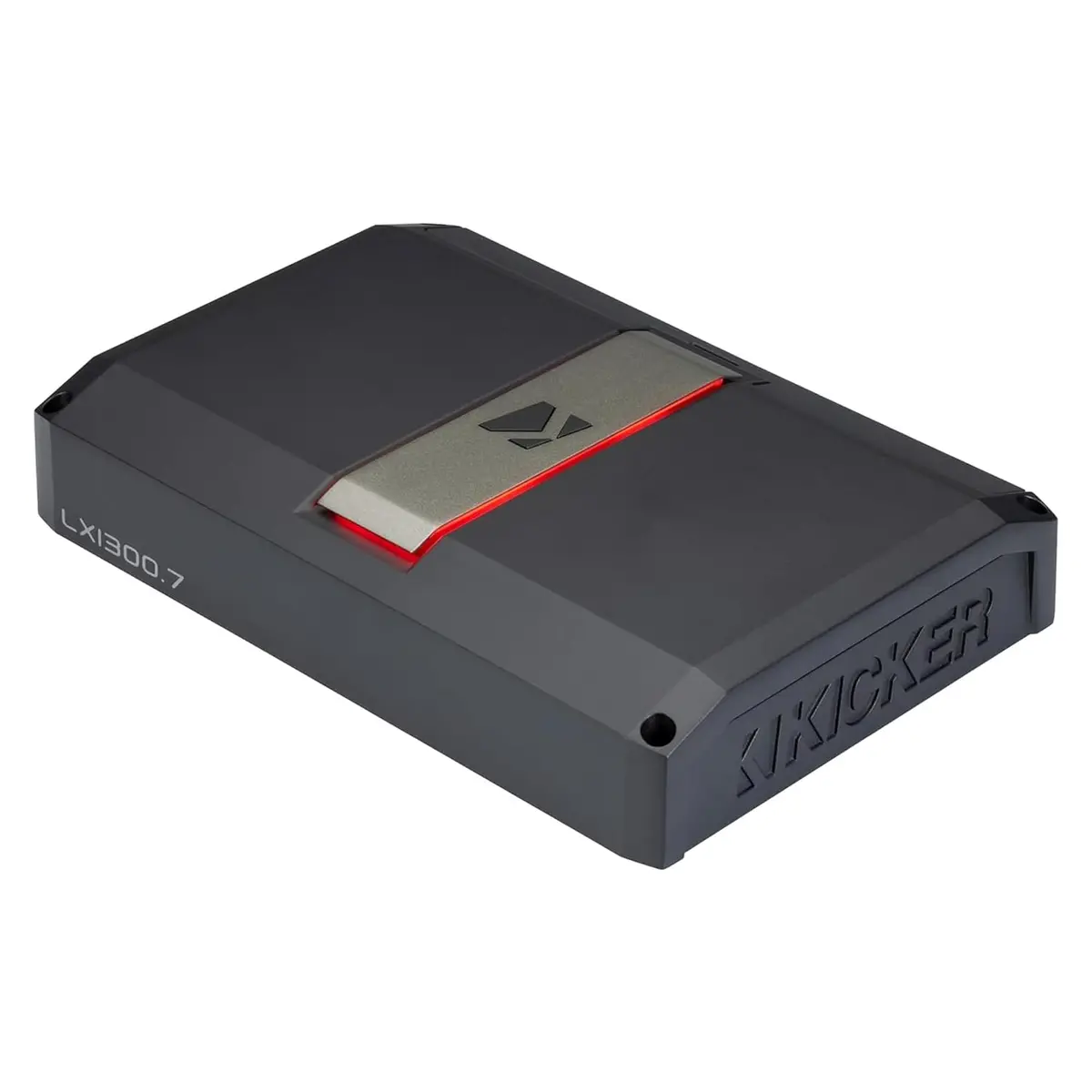

The LX-Series represents KICKER’s high-power premium amplifier line designed in-house from the ground up. Precision control, next-level flexibility, designed for performance, built to last.
- Incrementally dial in entire system with the included LX Control Center
- Monitor and adjust sub section with the included LXRC Dash Remote
- Class-D design for lower current draw, longer playing times, and lower operating temperatures
- Gain-match LEDs show you perfect gain setting
- Customize the appearance with reversible center panel and choice of 11 RGB LED accent colors
- Equipped with FIT+™ technology, accepting low- and high-level signals up to 40V, with differential inputs designed to eliminate unwanted noise for crystal-clear sound
- LX features choice of turn-on modes and comprehensive protections for thermal, circuit, and voltage stability, ensuring reliable performance
Comes with the LX CONTROL CENTER (LXCC)
- Diagnostic Readouts: Monitor battery voltage, LED output clip indication, amp temperature, and protection status in real time
- Precision Control: Adjust gain trim, left-channel time delay, and selectable crossover type, slope, and frequency. Allows for both HP, LP or BP crossovers for all full-range channels
- Parametric Bass Boost: 0-6dB with adjustable center frequency and Q for the sub channel
Comes with the LX REMOTE CONTROL (LXRC)
- Dynamic fingertip dash remote of bass level adjustment
- Features SHOCwave2.0™ (Sub-Harmonic Octave Creation), KICKER’s 2nd-gen digital bass restoration algorithm that recovers lost, low-bass frequencies vital to your music selections
- Displays battery voltage in fuel-gauge-style readout
- Control of its RGB LED brightness
- Output clipping indicator to prevent distortion and protect your system
Specifications
| RMS Power [Watts/Channel] @ 14.4V |
Amp 1 & Amp 2 (Stereo Channels): 2Ω Stereo: 175 x 4 4Ω Stereo: 125 x 4 4Ω Bridged: 350 x 2 Sub Channel: 1Ω mono: 700W 2Ω mono: 550W 4Ω mono: 300W |
| Dynamic Power [Watts] | 1500 |
| Frequency Response [Hz] | Stereo Channels: 20-20k Sub Channel: 10-160 (+0/-1dB) |
| Signal-to-Noise Ratio (a-weighted, re: rated power) |
>95dB |
| Signal-to-Noise Ratio (ref: 1W output) |
>75dB |
| Dimensions [in, cm] | Height: 2-3/8 (6 cm) Width: 8-7/16 (21.4 cm) Length: 12-5/8 (32 cm) |
| Input Sensitivity | High level 1V–40V Low level 125mV–5V |
| Variable Electronic Crossover | Amp 1 & Amp 2 (Stereo Channels): Off/HP/LP/BP HP: 20–5kHz LP: 40–5kHz Sub Channel: LP 40–160Hz, 24dB/octave Linkwitz-Riley Selectable Topology: 12, 18, or 24dB/oct Butterworth; 12 or 24dB/oct Linkwitz-Riley |
| Variable Subsonic Filter | 24dB/octave Linkwitz-Riley, variable hi-pass @ 10–80Hz (sub channel only) |
| KickEQ+™ (Sub Channel) | 0–6dB, variable center 20–80Hz, variable bandwidth 1–5 |
| Warranty | 2 Years (Exclusive Authorized Dealer for LX Amplifiers) |
