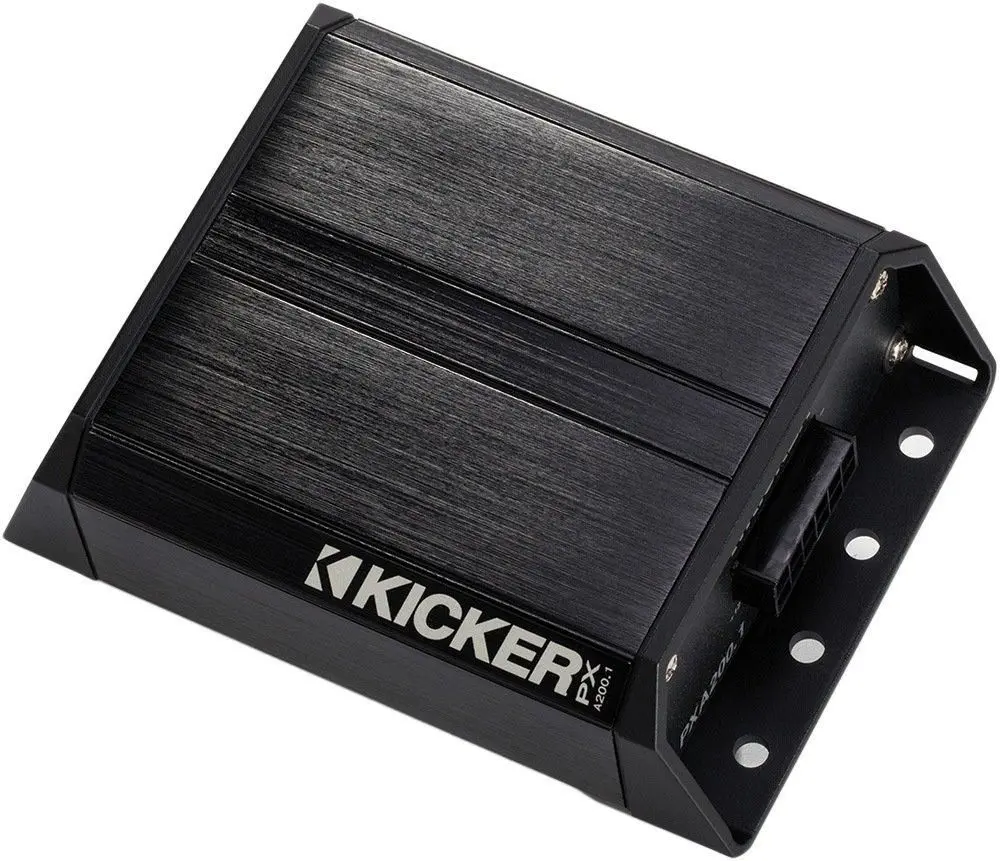

The PXA200.1 Mono Amplifier is purpose-built for anyone who needs big power everywhere they go. Roads optional.
This amplifier is perfect for motorcycles, side by sides, ATV’s or your boat! This weatherproof amp delivers huge power, on or off the road. A 24dB selectable crossover with 24dB subsonic filter, made to craft your sound to exacting standards..to control your bass on the go, connect the optional CXRC remote for easy control of your sound.
- Mono Subwoofer Amplifier (selectable to work in any vehicle with a 12-volt charging system)
- 200 watts RMS x 1 at 1/2 ohm
- 100 watts RMS x 1 at 1 ohm
- 50 watts RMS x 1 at 2 ohm
- Frequency response: 25-120 Hz
- Switchable low-pass filter (60, 80, 100 or 120 Hz at 24 dB/ octave)
- KickEQ™ Bass Boost (selectable 0dB or +6dB, centered at 40Hz)
- Fixed subsonic filter (25 Hz, 24 dB/octave)
- Preamp and speaker-level inputs as well as two auto turn-on modes (DC offset or 12-volt trigger)
- 14-gauge power and ground leads recommended — wiring and hardware not included with amplifier
- Fuse rating: 15A x 1
- RoHS Compliant
Specifications
| POWER [watts/ch], 4 OHM MONO | 25 x 1 |
| POWER [watts/ch], 2 OHM MONO | 50 x 1 |
| POWER [watts/ch], 1 OHM MONO | 100 x 1 |
| POWER [watts/ch], 0.5 OHM MONO | 200 x 1 |
| DIMS [in] | 4-3/4 L x 1-9/16 H x 3-7/16 W |
| DIMS [cm] | 12 L x 4 H x 8.7 W |
| FREQUENCY RESPONSE [Hz] | 25-120 |
| INPUT SENSITIVITY | Low Level: 125mV-5V, High Level: 250mV-10V |
| SIGNAL-TO-NOISE RATIO | >95dB, a-weighted, re: rated power |
| ACTIVE CROSSOVER | Selectable 60Hz, 80Hz, 100Hz or 120 Hz low pass; 24dB/octave slope |
| SUBSONIC FILTER | 25Hz, 24dB/octave slope |
| KickEQ™ BOOST | Selectable 0 or +6dB @ 40Hz |
| Remote Bass | Yes |
What’s in the Box
- Mono Amplifier
- Owner’s Manual
- 12″ Input/Output harness
- In-line fuse holder on 14-gauge wire
- 15A ATO fuse (installed)
- Four 1″ Self-tapping screws
- Two 14-16 Gauge crimp-on ring terminals
- Two 11-7/8″ plastic wire ties
