Description

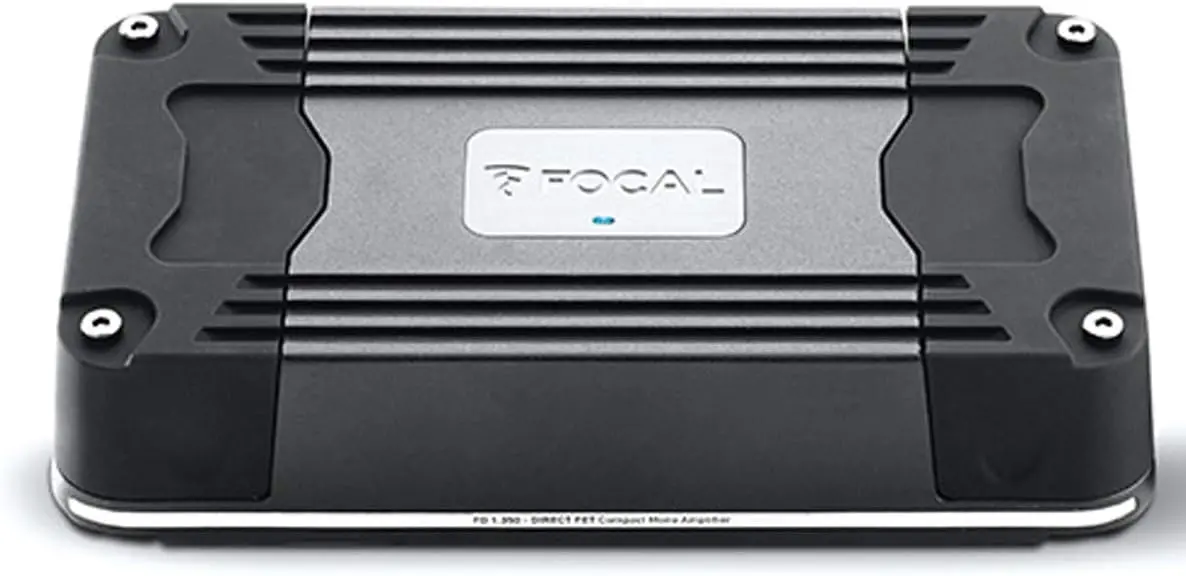

Ultra Compact Mono Amplifier
The FDS 1.350 is a mono block amplifier specifically designed for handling a subwoofer channel. It has a power of 210 and 350 Watts RMS under 4 and 2 Ohms respectively. In order to configure the system’s bass according to the car’s installation; it is equipped with an active crossover, bass correction and phase adjustment.
Advantages
- D Class – Direct Fet ® Technology – Efficient heat dissipation and precision
- Stable under 2 Ohms
- Stackable aluminium chassis with high heat dissipation
- Low noise operational amplifiers New Japan Radio® NJM4580
- Low ESR capacitors – 105°C (220°F)
- Pseudo-balanced inputs
- Cable accessories included – easy to install
Specifications:
| Mono Class D amplifier with dual output | High-level inputs with auto-detection / RCA low-level inputs |
|---|---|
| CEA power (4 Ohms) | 1 x 210 Watts RMS |
| Power max (2 Ohms) | 1 x 350 Watts RMS |
| Low-pass crossover | 40Hz – 400Hz |
| Progressive phase adjustment | (0-180°) |
| Bass boost | (0/6dB/12dB) |
| Protections | Short circuit / low impedance / reversal of polarity / DC / power drop / heat protection |
| Dimensions (L X H X W) | 7-13/16 x 4-1/4 x 1-11/16 in (199 x 108 x 43mm) |
| Weight | 1.8lbs |
