Description
Complete* Kicker Amplifier and Subwoofer Bundles
*for factory radio compatibility, please contact us about line output converters
Kicker 50GOLD124 50th Anniversary Edition 12″ Subwoofer + Kicker 46CXA8001T Mono Amplifier + Kicker 46CXARCT Bass Knob + 8 Gauge Amplifier Wiring Kit + 17 feet 2-Channel RCA Cable – Amplifier and Subwoofer Bundle

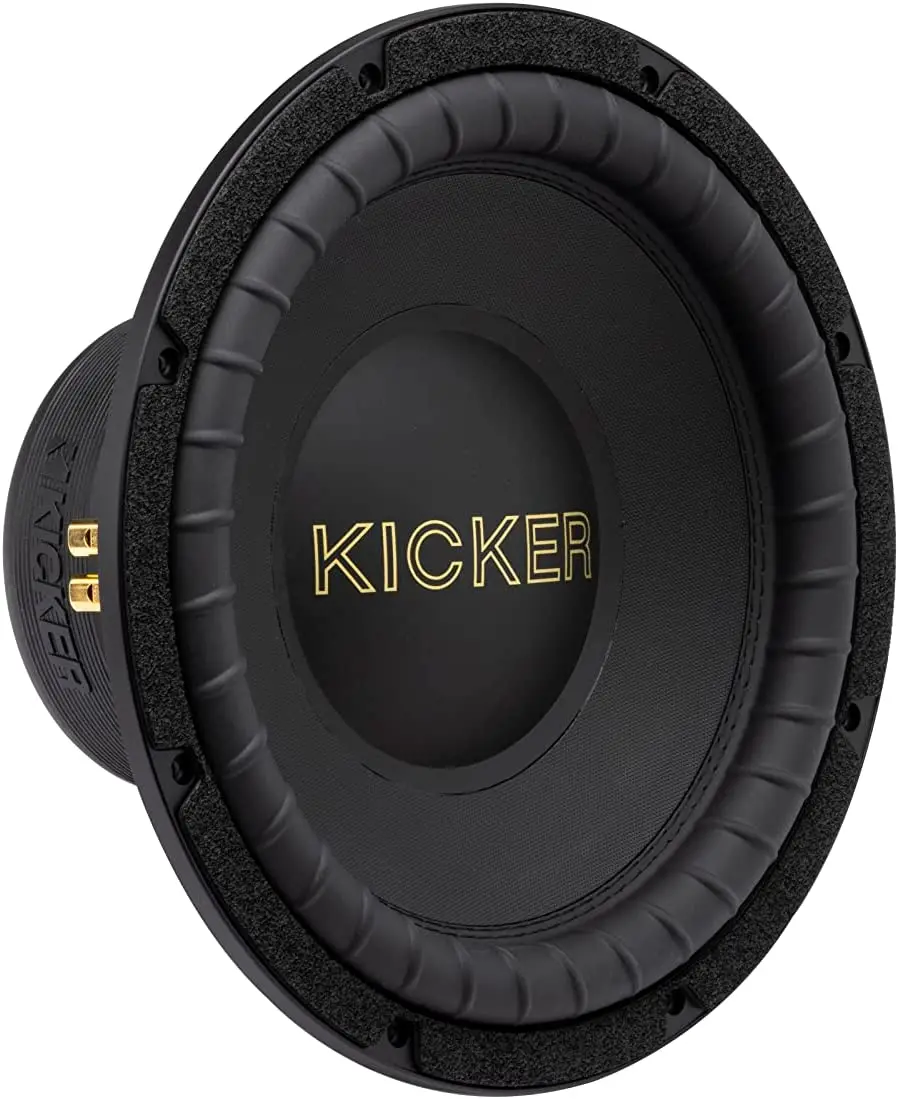

Subwoofer Highlights
- Commemorative 50th anniversary edition subwoofer
- Large, ribbed Santoprene surround for high excursion and distortion-free bass
- Integrated Dust Cap Provides Stability under Stress
- Double-stacked magnet and full-coverage steel basket
- KICKER sub-family features – UniPlate, Spiralead tinsel leads, progressive-roll spider
- Forced-Air Cooling™ for outstanding reliability
- Oversized, gold push terminals for max signal transfer
Subwoofer Specifications
| Model | GOLD12 |
| Size | 12″, 30 cm |
| Impedance | 4 Ohms |
| Rec. Amp Power watt RMS | 250-500 |
| Peak Power watts | 1000 |
| Sensitivity dB 1W, 1m | 87.1 |
| Mounting Depth | 5 3/4″, 14.5 cm |
| Mounting Diameter | 11″, 27.9 cm |
| Min Sealed | 1″, 28.3 cm |
| Max Sealed | 2″, 56.6 cm |
| Min Vented | 1.75″, 49.6 cm |
| Max Vented | 2.25″, 63.76 cm |
Amplifier Highlights
- Mono subwoofer amplifier
- 300 watts RMS x 1 at 4 ohms (600 watts RMS x 1 at 2 ohms)
- 800 watts RMS x 1 at 1 ohm
- CTA-2006 compliant
- Class D amp technology
- Frequency response: 25-200 Hz
- Variable low-pass filter (50-200 Hz, 12 dB/octave)
- Fixed subsonic filter (25 Hz, 24 dB/octave)
- Variable bass boost (0-6 dB at 40 Hz)
Amplifier Features
- Preamp inputs and outputs
- Speaker-level inputs (speaker wire to RCA adapters required)
- Optional remote bass level controller available
- 3-second delay for turn-on and turn-off
- Includes hardware for vertical mounting
- Wiring, fuse, and hardware not included with amplifier
- 4-gauge power and ground leads and an 80-amp fuse recommended
Amplifier Specifications
| Amplifier Class | D |
| Low-Pass Crossover Frequency | 50-200 Hz |
| Low-Pass Slope (dB/octave) | 12 dB/octave |
| High-Pass Crossover Frequency | N/A |
| High-Pass Slope (dB/octave) | N/A |
| Bass Boost | 0-6 dB |
| Bass Boost Frequency | 40 Hz |
| Fan Cooled | No |
| Fuse Rating | 80 |
| Speaker Level Inputs | RCA |
| Preamp Outputs | 1 pair |
46CXARC Bass Knob
Customize your bass, right from your front seat.
The CXARC is a remote bass controller, compatible with select CX and PX KICKER amplifiers equipped with a REMOTE BASS jack on its end.
8AWG Amplifier Power Kit
- True American Wire Gauge Oxygen Free Copper for High-Current Delivery
- Fine Stranding and Frosted Insulation for Superior Flexibility
- Flux Tinned for Corrosion Resistance
- Double Strength Terminal for Best Power and Reliability
- Compact Mini-ANL Fuse Block Design
This Kit Includes
- 18.5ft 8AWG Power Cable with 6ft Braided Sleeve and Ring Terminal.
- 3ft. 8AWG Ground Cable with Double Strength Terminal.
- 19ft Remote Turn-on Wire.
- (1) Mini- ANL Fuse Block.
- (1) 60A Mini-ANL Fuse.
- (1) Firewall Grommet.
- (2) 8GA Spade Terminals.
- (1) Remote Spade Terminal.
- (1) Remote Butt Connector.
- (2) Fuse Block Mounting Screws.
- (2) Self-Tapping Screws.
- (6) Cable Ties.
17 feet 2-Channel RCA Cable
- 17 ft RCA Cable.
- Coaxial construction.
- Flux Tinned OFC Wires.
- Split-tip Center Pin and Segmented Shield.
- Micro Barrel Design.
- Frosted Outer Jacket.
