Description
Complete* Kicker Amplifier and Subwoofer Bundles
*for factory radio compatibility, please contact us about line output converters
Kicker 48CWR84 (x2) 8″ 4-Ohm Subwoofer + 46CXA4001T 400 watt Mono-channel Amplifier + 46CXARCT Bass Tuner Knob + 8 Gauge Amplifier Wiring Kit + 17′ 2-Channel RCA Cable – Amplifier and Subwoofer Bundle

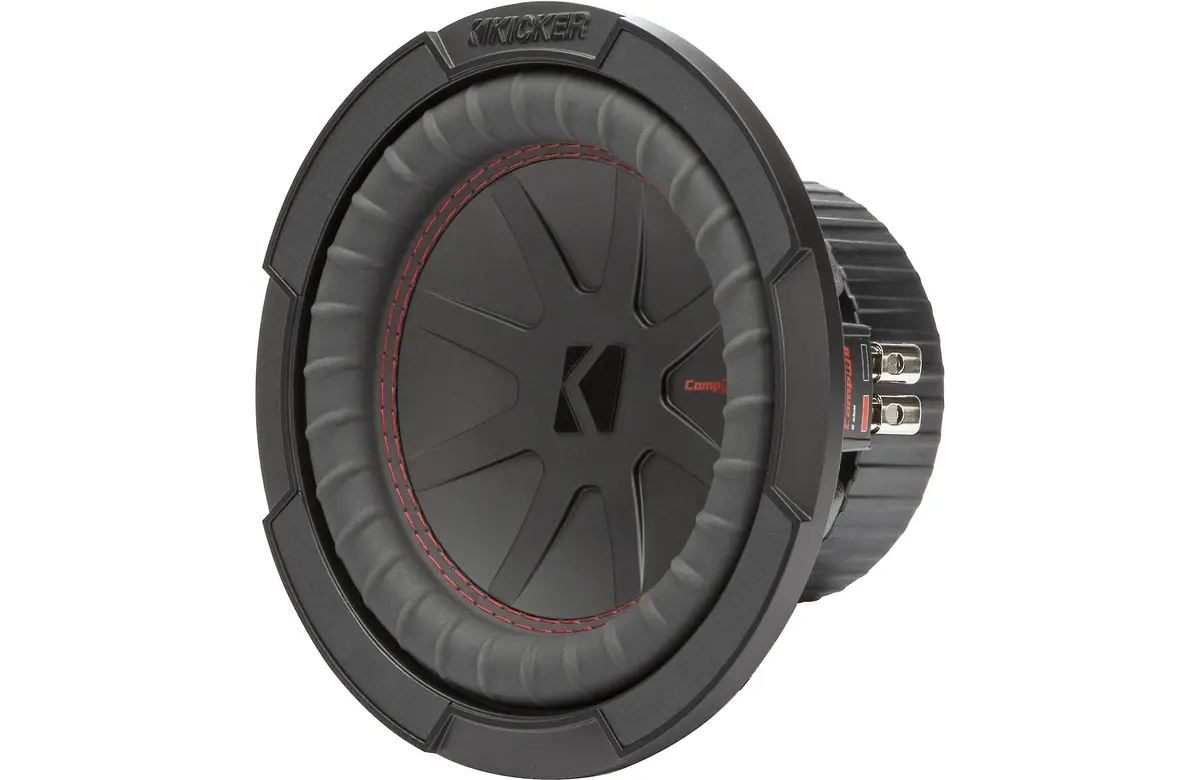

Subwoofer Highlights
- Ribbed Santoprene Surround
- Provides Large Excursion and Distortion-Free Bass
- Rigid SoloKon Cone System with 360 Degree Bracing
- Stitched Surround for Unsurpassed Reliability
- Sturdy, Spring Loaded Wire Terminals
- Double Stacked Magnet and Full Coverage Steel Basket
WHAT MAKES IT SUPERIOR?
-New and Improved – KICKER’s Workhorse Bass-maker
-Features Forced-Air Cooling™ – 25% Cooler for Increased Reliability
-Legendary CompR Subwoofer is the Model of Power and Durability
Subwoofer Specifications
| Woofers [in, cm] | 8, 20 |
| Impedance [Ohms] | 2 or 4 |
| Rec. Amp Power [watts RMS] | 300 |
| Peak Power Handling [watts] | 600 |
| Frequency Response [Hz] | 30-500 |
| Sensitivity [dB 1w/1m] | 82.1 |
| Mounting Depth [in, cm] | 4-1/8, 10.5 |
| Xmax [Linear Excursion] [mm] | 10.5 |
Amp Highlights
- Mono subwoofer amplifier.
- 150 watts RMS x 1 at 4 ohms (300 watts RMS x 1 at 2 ohms).
- 400 watts RMS x 1 at 1 ohm.
- CTA-2006 compliant.
- Class D amp technology.
- Frequency response: 25-200 Hz.
- Variable low-pass filter (50-200 Hz, 12 dB/octave).
- Fixed subsonic filter (25 Hz, 24 dB/octave).
- Variable bass boost (0-6 dB at 40 Hz).
Amp Features
- Preamp inputs and outputs.
- Speaker-level inputs (speaker wire to RCA adapters required)
- Optional remote bass level controller available.
- 3-second delay for turn-on and turn-off.
- Includes hardware for vertical mounting.
- Wiring, fuse, and hardware not included with amplifier.
- 8-gauge power and ground leads and a 50-amp fuse recommended.
Amp Specifications
| Amplifier Class | D |
| Low-Pass Crossover Frequency | 50-200 Hz |
| Low-Pass Slope (dB/octave) | 12 dB/octave |
| High-Pass Crossover Frequency | N/A |
| High-Pass Slope (dB/octave) | N/A |
| Bass Boost | 0-6 dB |
| Bass Boost Frequency | 40 Hz |
| Fan Cooled | No |
| Fuse Rating | 40 |
| Speaker Level Inputs | RCA |
| Preamp Outputs | 1 pair |
Kicker 46CXARC Bass Knob
Customize your bass, right from your front seat.
The CXARC is a remote bass controller, compatible with select CX and PX KICKER amplifiers equipped with a REMOTE BASS jack on its end.
8AWG Amplifier Power Kit
- True American Wire Gauge Oxygen Free Copper for High-Current Delivery
- Fine Stranding and Frosted Insulation for Superior Flexibility
- Flux Tinned for Corrosion Resistance
- Double Strength Terminal for Best Power and Reliability
- Compact Mini-ANL Fuse Block Design
This Kit Includes
- 18.5ft 8AWG Power Cable with 6ft Braided Sleeve and Ring Terminal.
- 3ft. 8AWG Ground Cable with Double Strength Terminal.
- 19ft Remote Turn-on Wire.
- (1) Mini- ANL Fuse Block.
- (1) 60A Mini-ANL Fuse.
- (1) Firewall Grommet.
- (2) 8GA Spade Terminals.
- (1) Remote Spade Terminal.
- (1) Remote Butt Connector.
- (2) Fuse Block Mounting Screws.
- (2) Self-Tapping Screws.
- (6) Cable Ties.
17 feet 2-Channel RCA Cable
- 17 ft RCA Cable.
- Coaxial construction.
- Flux Tinned OFC Wires.
- Split-tip Center Pin and Segmented Shield.
- Micro Barrel Design.
- Frosted Outer Jacket.
