Kicker 48CWR154 (x2) 15″ 4-Ohm Dual Voice Coil Subwoofer + Kicker 46CXA18001T Mono Amplifier + Kicker 46CXARCT + 4 Gauge Amplifier Wiring Kit + 17 feet 2-Channel RCA Cable – Amplifier and Subwoofer Bundle
Subwoofer Highlights
- 15″ subwoofer with dual 4-ohm voice coils
- Injection-molded polypropylene cone
- Double-stitched Santoprene rubber surround
- Steel basket
- Power handling: 800 watts RMS (400 watts per coil)
- Peak power handling: 1600 watts
- Frequency response: 25-500 Hz
- Sensitivity: 89.4 dB
- Top-mount depth: 7.9125″
- Sealed box volume: 1.8 – 3.0 cu. ft.
- Ported box volume: 3.0 – 5.0 cu. ft.
- Grille not included
- Warranty: 1 year
Subwoofer Features
Dual Voice Coils: This woofer features dual 4Ω voice coils, offering wiring flexibility. When the voice coils are wired in parallel, the woofer presents a 2Ω load. When the voice coils are wired in series, the woofer presents an 8Ω load.
Cooling: Kicker engineers developed a Forced Air Cooling system, using the motor structure to pull air across the voice coils, helping the sub run up to 25% cooler than the previous model.
Sealed Enclosures: Sealed enclosures provide the most control over a woofer and provide accurate sonic reproduction, making them suitable to all types of music. Kicker recommends sealed enclosures from 1.8 ft³ to 3.0 ft³.
Vented Enclosures: Vented (or ported) enclosures typically provide better overall efficiency than sealed so they are suitable for use with smaller amplifiers, giving you more bass output from a given amount of power. Kicker recommends the following ported enclosures:
- Minimum Enclosure Volume: 3.0 ft³ with a 15½” x 2¾” x 25¾” slot port
- Maximum Enclosure Volume: 5.0 ft³ with a 15½” x 3″ x 22″ slot port
Subwoofer Specifications
| Woofers [in, cm] | 15, 30 |
| Impedance [Ohms] | 2 Ohms |
| Rec. Amp Power [watts RMS] | 800 |
| Peak Power Handling [watts] | 1600 |
| Frequency Response [Hz] | 25-500 |
| Sensitivity [dB 1w/1m] | 89.4 |
| Mounting Depth [in, cm] | 7-15/16, 20.1 |
| Xmax [Linear Excursion] [mm] | 14.5 |
Amplifier Highlights

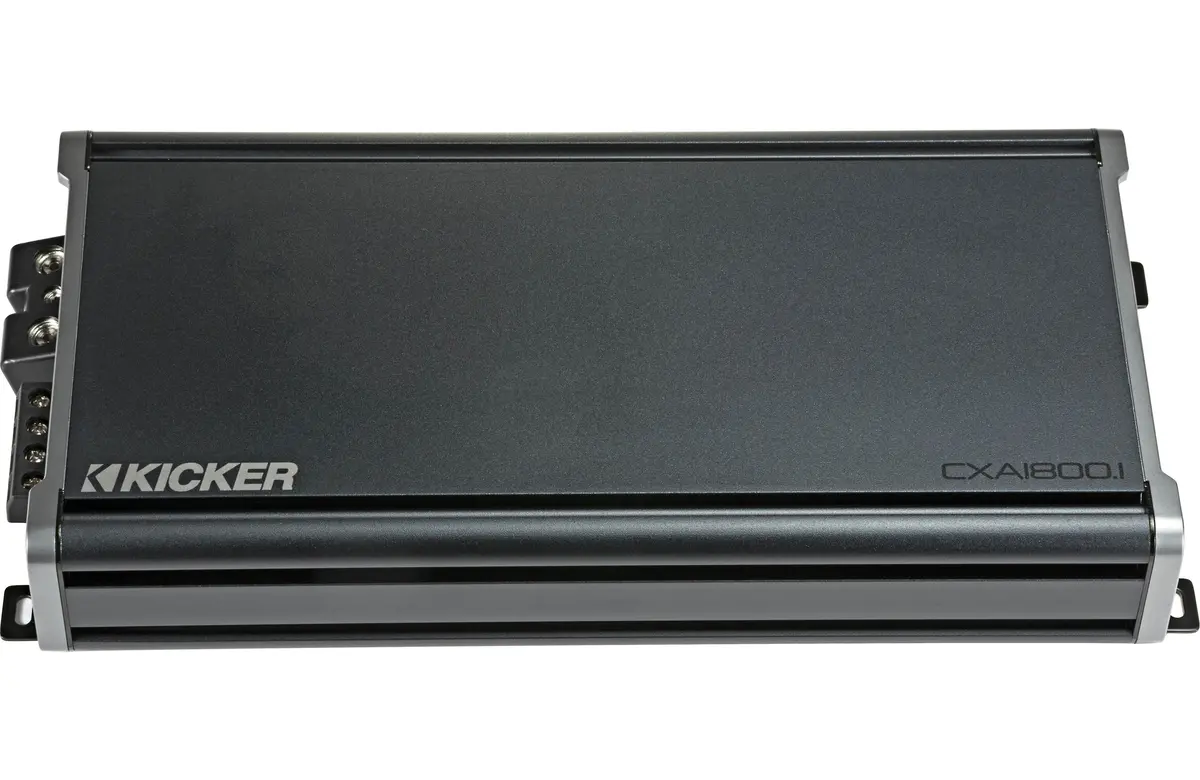

The CXA1800.1 Mono Amplifier is built for big bass in a sleek, yet affordable package. Using a Class-D power plant and FIT+™ (Fail-safe Integration Technology-PLUS) for superior dependability, this amp features a variable bass boost with KickEQ™, giving you as much as a 6dB of extra bump with a simple turn of the optional CXARC Remote Bass Controller.
- Efficient Class-D amplifier
- Three-second turn-on/off delay to eliminate unwanted interference
- Variable 12dB crossovers provides control to dial in perfect sound
- KickEQ™ 6dB variable bass boost for those additional low frequencies
- 24dB subsonic filter for protection from potentially damaging frequencies
- FIT+™ (Fail-safe Integration Technology-PLUS) means it works with nearly every radio
- Accepts up to 40-volt input signal
- Small footprint for easier installation
- Compatible with CXARC Remote Bass Control
- Vertical mounting hardware included for another unique look
Amplifier Specifications
| Power (watts/ch) 4 Ohm | 900×1 |
| Power (watts/ch) 2 Ohm | 1800×1 |
| Power (watts/ch) 1 Ohm | 1800×1 +/-10% |
| Frequency Response (Hz) | 25-200Hz |
| Input Sensitivity | 250mV-10V (Low Level) 1V-40V (High Level) |
| Signal-to-Noise Ratio | 95dB |
| Active Crossover | Variable Lo-pass 50Hz–200Hz, 12dB/octave |
| Subsonic Filter | 25Hz @24dB/octave |
| KickEQ™ Boost | Variable 0-6dB @40Hz |
46CXARC Bass Knob
Customize your bass, right from your front seat.
The CXARC is a remote bass controller, compatible with select CX and PX KICKER amplifiers equipped with a REMOTE BASS jack on its end.
4 Gauge Wiring Kit
- 18.5ft 4AWG Power Cable with 6ft Braided Sleeve and Ring Terminal
- 3ft. 4AWG Ground Cable with Double Strength Terminal
- 19ft Remote Turn-on Wire
- (1) Mini- ANL Fuse Block
- (1) 60A Mini-ANL Fuse
- (1) Firewall Grommet
- (2) 4GA Spade Terminals
- (1) Remote Spade Terminal
- (1) Remote Butt Connector
- (2) Fuse Block Mounting Screws
- (2) Self-Tapping Screws
- (6) Cable Ties
17 feet 2-Channel RCA Cable
- 17 ft RCA Cable.
- Coaxial construction.
- Flux Tinned OFC Wires.
- Split-tip Center Pin and Segmented Shield.
- Micro Barrel Design.
- Frosted Outer Jacket.
