Description

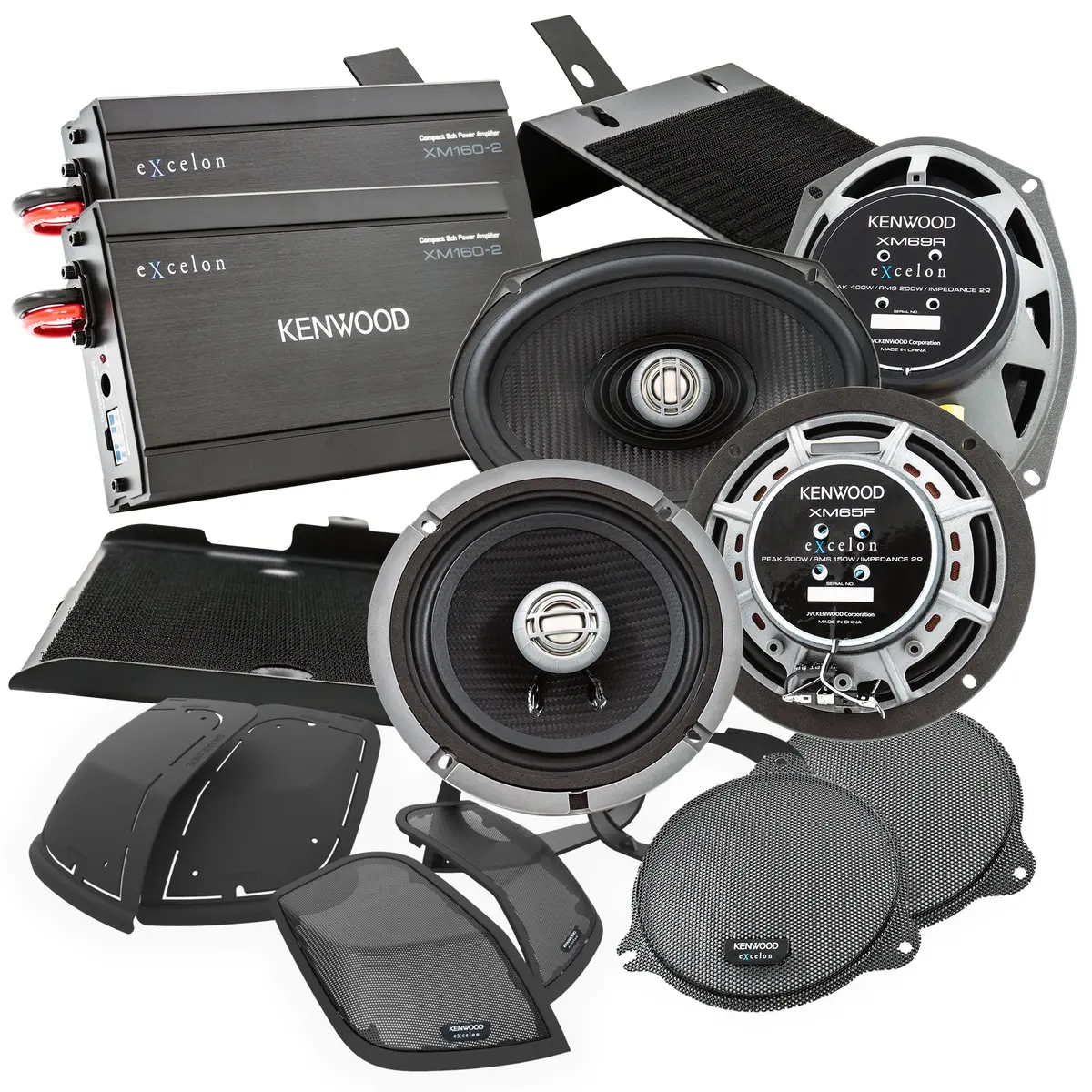

Kenwood P-HD3FR Motorcycle Bundle for 2014-Up Harley-Davidson models includes Kenwood XM160-2 2-Channel Class D Amplifier + Kenwood XM69R 6×9″ Rear Facing Touring Speakers + Kenwood XM65F 6.5″ Front Facing Touring Speakers
- System includes two 6-1/2″ fairing speakers, two 6″x9″ saddlebag speakers, two 2-channel amps, mounting plates, and an amp wiring kit.
- Designed for select 2014-up Harley-Davidson® Road Glide and Street Glide motorcycles.
- No flashing required.
Amp Highlights
This Bundle Includes TWO (x2) Amplifiers
- 2-channel motorcycle amplifier.
- 80 watts RMS x 2 at 2 ohms.
- Class D amp technology.
- Designed for select 2014-up Harley-Davidson motorcycles.
- Mounting plates for Road Glide, Street Glide, and Ultra model Harleys included.
- Power, speaker, and input wiring harnesses included.
- Speaker-level inputs compatible with factory radios and aftermarket receivers.
- Bypass Port provides signal for system expansion.
- Fuse rating: 15A x 1.
- Dimensions: 8.1″W x 1.62″H x 4.08″D.
- Warranty: 2 years.
6×9″ Speaker Highlights
- 6″x9″ full-range motorcycle speakers
- Designed for select Harley-Davidson motorcycles
- Injection-molded polypropylene cone
- 1″ PEI dome tweeter
- Power handling up to 200 watts RMS (400 watts peak)
- Frequency response: 20-25,000 Hz
- Sensitivity: 94 dB
- 2-ohm impedance
- Grilles not included
- Top-mount depth: 3″
- Warranty: 2 years
6×9″ Speaker Features
Overview: The Kenwood XM69R 6″x9″ 2-way speakers are designed specifically for mounting into the hardshell saddlebag lids on select Harley-Davidson motorcycles. The XM69Rs feature IMPP (Injection-Molded Polypropylene) woofer cones with rubber surrounds and 1″ PEI dome tweeters. The speakers feature a sealed design to prevent water ingress and include 2 pairs of silicon mounting gaskets. The 2-ohm speakers can handle up to 200 watts RMS (400W peak) and have a frequency response of 20Hz-25kHz.
Compatibility: The XM69R speakers can be installed in the following Harley-Davidson motorcycles using one of two saddlebag lid installation kits, which are sold separately:
- CA-CUT14: 2014-up Harley-Davidson Street Glide, Ultra Classic, Road Glide, and Road Glide Ultra.
- CA-LID98: 1998-2013 Harley-Davidson Street Glide, Electra Glide Classic, Ultra Classic, Road Glide, and Road Glide Ultra.
6×9″ Speaker Specifications
| Speaker Size | 6×9 |
| Design | 2-Way |
| Tweeter | 1″ Dome |
| Impedance | 2-Ohms |
| Tweeter Composition | PEI |
| Woofer Composition | IMPP |
| Woofer Surround | Rubber |
6×9 Speaker Dimensions
| Top-Mount Depth Inches | 2 15/16 |
| Bottom-Mount Depth Inches | N/A |
| Cutout Diameter or Length | 0 |
| Mounting Height | 0.317 |
6.5″ Speaker Highlights
- 6-1/2″ full-range motorcycle speakers
- Designed for select Harley-Davidson motorcycles
- Injection-molded polypropylene cone
- 1″ PEI dome tweeter
- Power handling up to 150 watts RMS (300 watts peak)
- Frequency response: 40-25,000 Hz
- Sensitivity: 92 dB
- 2-ohm impedance
- Grilles included
- Top-mount depth: 2.25″
- Warranty: 2 years
6.5″ Speaker Features
Harley Davidson Integration: The Kenwood XM65F motorsports 6-1/2″ speakers are designed for installation into select 2014-up Harley-Davidson Street Glide/Street Glide Ultra, Road Glide/Road Glide Ultra, and CVO Ultra motorcycles. The XM65F speakers mount into the factory front location using the factory mounting hardware and wiring. Replacement speaker grilles are provided.
Construction: The XM65F speakers feature a 6-1/2″ IMPP (Injection Molded Polypropylene) woofer cone and a coaxially-mounted 1″ PEI (Poly-Ether-Imide) dome tweeter.
Compatibility: The Kenwood XM65F speakers are designed to replace the factory front speakers in the following Harley-Davidson bikes
| Model | Year | Chassis |
| Street Glide | 2014-Up | FLHX (with radio only or with amp installed) |
| Limited Ultra | 2014-Up | FLHTK (with radio only or with amp installed) |
| Ultra | 2014-Up | CVO (with factory Stage 1 amp installed) |
| Road Glide | 2015-Up | FLTR (with radio only or amp installed) |
| Limited Road Glide Ultra | 2020-Up | FLTRK (with radio only or amp installed) |
| Road Glide Ultra | 2016-Up | FLTRU (with radio only or amp installed) |
6.5″ Speaker Specifications
| Design | 2-Way |
| Tweeter Design | Dome |
| Impedance | 2 Ohms |
| Tweeter Composition | PEI |
| Woofer Composition | IMPP |
| Woofer Surround | Rubber |
| Sensitivity (1W at 1 meter) | 92 |
| Frequency Response | 40 – 25k Hz |
| Maximum RMS Wattage | 150 |
| Peak Power Handing (Watts) | 300 |
6.5″ Speaker Dimensions
| Top-mount Depth Inches | 2 5/16 |
| Bottom-mount Depth Inches | 2 5/8 |
| Cutout Diameter or Length Inches | 5 5/8 |
| Mounting Height Inches | 0.705 |
