Description

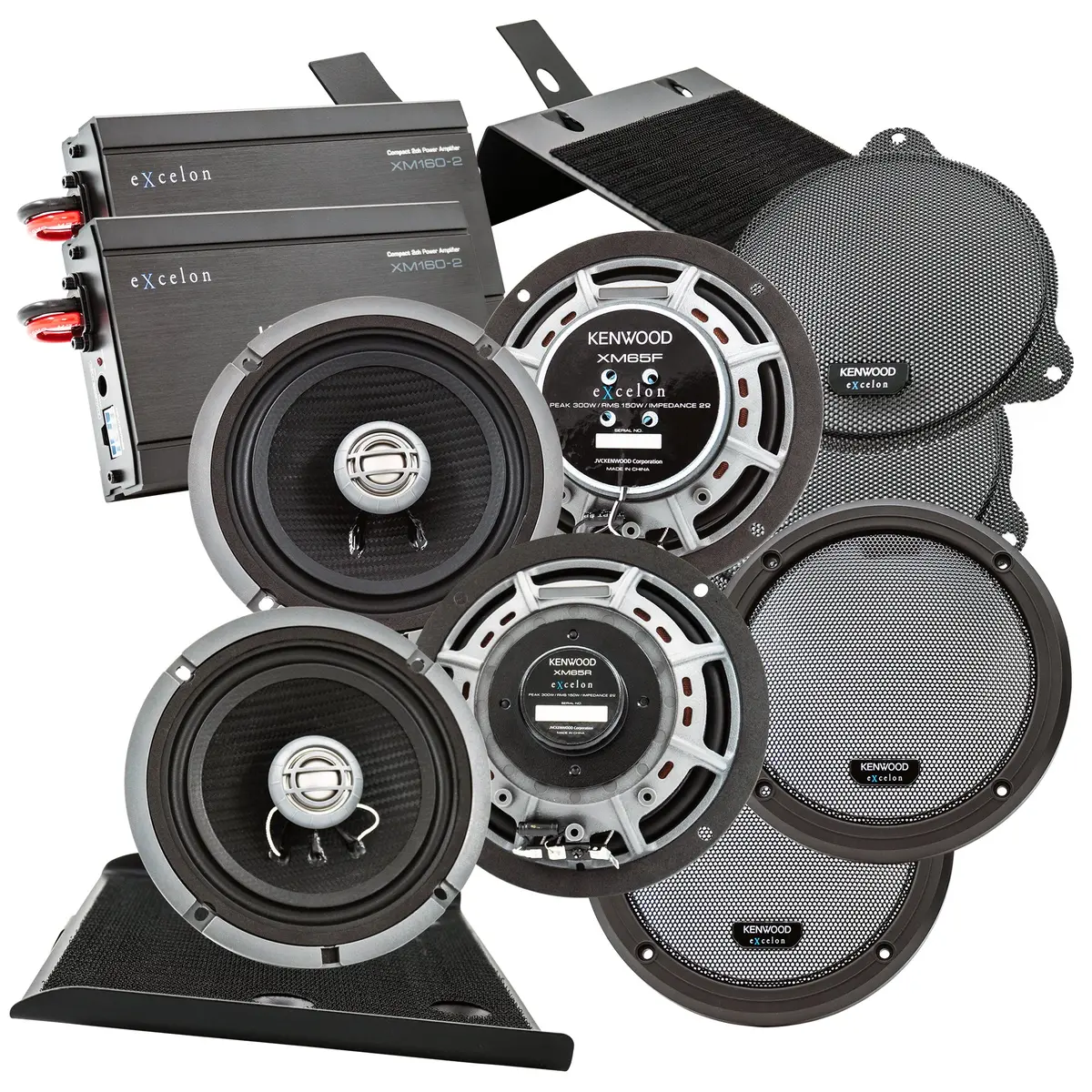

Kenwood P-HD4UT Motorcycle Bundle for 2014-Up Harley-Davidson models includes (x2) Kenwood XM160-2 2-Channel Class D Amplifier + Kenwood XM65F 6.5″ Front Facing Touring Speakers + Kenwood XM65R 6.5″ Rear Facing Touring Speakers
- System includes two 6-1/2″ fairing speakers, two 6-1/2″ rear speakers, two 2-channel amps, Road Glide mounting plate, Street Glide mounting plate, Street Glide grilles, and power, speaker, and input wiring.
- Designed for select 2014-up Harley-Davidson® Ultra series models with rear seat and Tour Pak.
- No flashing required.
Amp Highlights
This Bundle Includes TWO (x2) Amplifiers
- 2-channel motorcycle amplifier.
- 80 watts RMS x 2 at 2 ohms.
- Class D amp technology.
- Designed for select 2014-up Harley-Davidson motorcycles.
- Mounting plates for Road Glide, Street Glide, and Ultra model Harleys included.
- Power, speaker, and input wiring harnesses included.
- Speaker-level inputs compatible with factory radios and aftermarket receivers.
- Bypass Port provides signal for system expansion.
- Fuse rating: 15A x 1.
- Dimensions: 8.1″W x 1.62″H x 4.08″D.
- Warranty: 2 years.
Front Speaker Highlights
- 6-1/2″ full-range motorcycle speakers
- Designed for select Harley-Davidson motorcycles
- Injection-molded polypropylene cone
- 1″ PEI dome tweeter
- Power handling up to 150 watts RMS (300 watts peak)
- Frequency response: 40-25,000 Hz
- Sensitivity: 92 dB
- 2-ohm impedance
- Grilles included
- Top-mount depth: 2.25″
- Warranty: 2 years
Front Speaker Features
Harley Davidson Integration: The Kenwood XM65F motorsports 6-1/2″ speakers are designed for installation into select 2014-up Harley-Davidson Street Glide/Street Glide Ultra, Road Glide/Road Glide Ultra, and CVO Ultra motorcycles. The XM65F speakers mount into the factory front location using the factory mounting hardware and wiring. Replacement speaker grilles are provided.
Construction: The XM65F speakers feature a 6-1/2″ IMPP (Injection Molded Polypropylene) woofer cone and a coaxially-mounted 1″ PEI (Poly-Ether-Imide) dome tweeter.
Compatibility: The Kenwood XM65F speakers are designed to replace the factory front speakers in the following Harley-Davidson bikes
| Model | Year | Chassis |
| Street Glide | 2014-Up | FLHX (with radio only or with amp installed) |
| Limited Ultra | 2014-Up | FLHTK (with radio only or with amp installed) |
| Ultra | 2014-Up | CVO (with factory Stage 1 amp installed) |
| Road Glide | 2015-Up | FLTR (with radio only or amp installed) |
| Limited Road Glide Ultra | 2020-Up | FLTRK (with radio only or amp installed) |
| Road Glide Ultra | 2016-Up | FLTRU (with radio only or amp installed) |
Front Speaker Specifications
| Design | 2-Way |
| Tweeter Design | Dome |
| Impedance | 2 Ohms |
| Tweeter Composition | PEI |
| Woofer Composition | IMPP |
| Woofer Surround | Rubber |
| Sensitivity (1W at 1 meter) | 92 |
| Frequency Response | 40 – 25k Hz |
| Maximum RMS Wattage | 150 |
| Peak Power Handing (Watts) | 300 |
Front Speaker Dimensions
| Top-mount Depth Inches | 2 5/16 |
| Bottom-mount Depth Inches | 2 5/8 |
| Cutout Diameter or Length Inches | 5 5/8 |
| Mounting Height Inches | 0.705 |
Rear Speaker Highlights
- 6-1/2″ full-range motorcycle speakers
- Designed for select Harley-Davidson motorcycles
- Injection-molded polypropylene cone
- 1″ PEI dome tweeter
- Power handling up to 150 watts RMS (300 watts peak)
- Frequency response: 40-25,000 Hz
- Sensitivity: 92 dB
- 2-ohm impedance
- Grilles included
- Top-mount depth: 2.25″
- Warranty: 2 years
Rear Speaker Features
Harley Davidson Integration: The Kenwood XM65F motorsports 6-1/2″ speakers are designed for installation into select 2014-up Harley-Davidson Street Glide/Street Glide Ultra, Road Glide/Road Glide Ultra, and CVO Ultra motorcycles. The XM65F speakers mount into the factory front location using the factory mounting hardware and wiring. Replacement speaker grilles are provided.
Construction: The XM65F speakers feature a 6-1/2″ IMPP (Injection Molded Polypropylene) woofer cone and a coaxially-mounted 1″ PEI (Poly-Ether-Imide) dome tweeter.
Compatibility: The Kenwood XM65F speakers are designed to replace the factory front speakers in the following Harley-Davidson bikes
| Model | Year | Chassis |
| Street Glide | 2014-Up | FLHX (with radio only or with amp installed) |
| Limited Ultra | 2014-Up | FLHTK (with radio only or with amp installed) |
| Ultra | 2014-Up | CVO (with factory Stage 1 amp installed) |
| Road Glide | 2015-Up | FLTR (with radio only or amp installed) |
| Limited Road Glide Ultra | 2020-Up | FLTRK (with radio only or amp installed) |
| Road Glide Ultra | 2016-Up | FLTRU (with radio only or amp installed) |
Rear Speaker Specifications
| Design | 2-Way |
| Tweeter Design | Dome |
| Impedance | 2 Ohms |
| Tweeter Composition | PEI |
| Woofer Composition | IMPP |
| Woofer Surround | Rubber |
| Sensitivity (1W at 1 meter) | 92 |
| Frequency Response | 40 – 25k Hz |
| Maximum RMS Wattage | 150 |
| Peak Power Handing (Watts) | 300 |
Rear Speaker Dimensions
| Top-mount Depth Inches | 2 5/16 |
| Bottom-mount Depth Inches | 2 5/8 |
| Cutout Diameter or Length Inches | 5 5/8 |
| Mounting Height Inches | 0.705 |
