Description

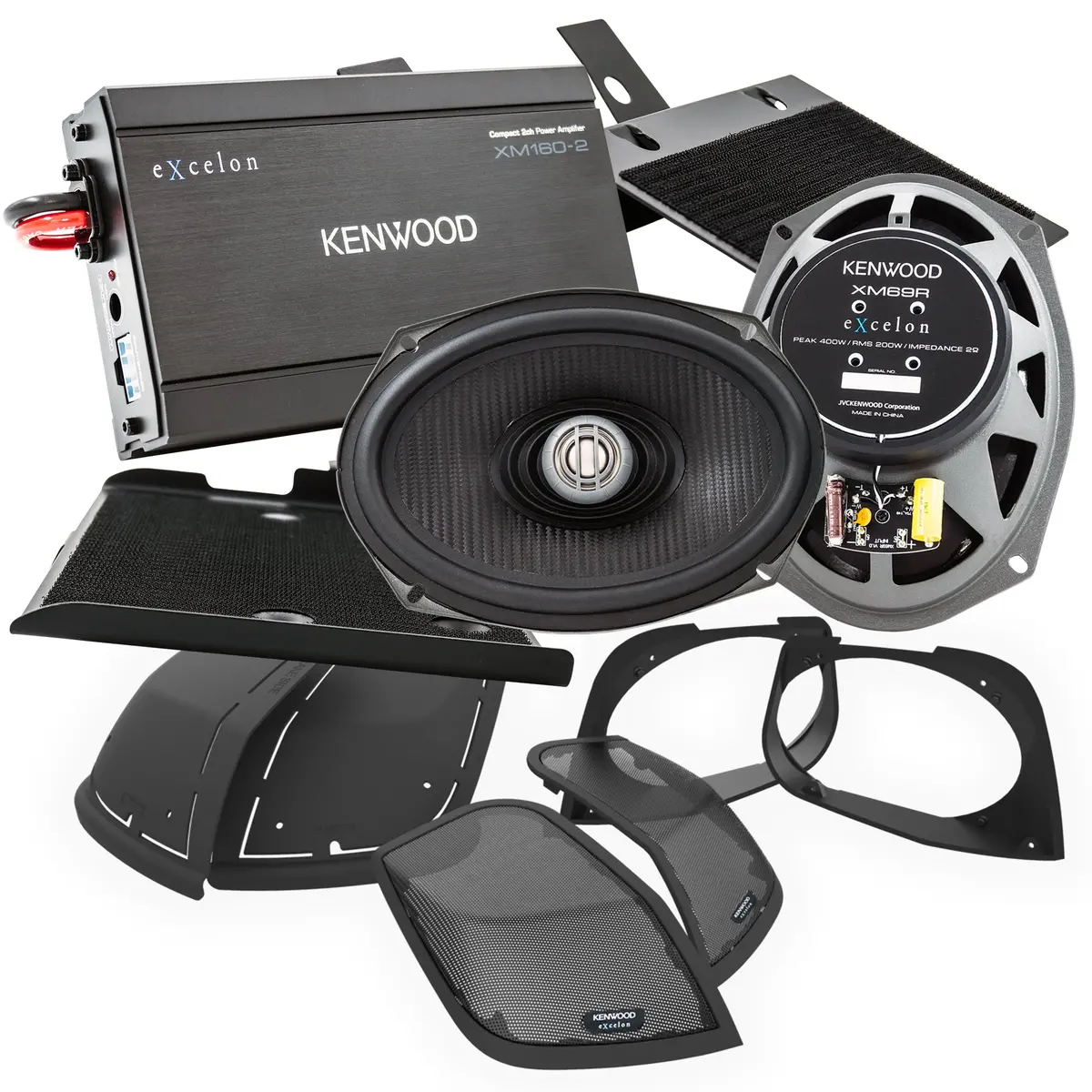

Kenwood P-HD2R Motorcycle Bundle for 2014-Up Harley-Davidson models includes Kenwood XM160-2 2-Channel Class D Amplifier + Kenwood XM69R 6×9″ Rear Facing Touring Speakers
- System includes two 6″x9″ saddlebag speakers, a 2-channel amp, Road Glide mounting plate, Street Glide mounting plate, cut-in kit with grilles, power, speaker, and input wiring.
- Designed for select 2014-up Harley-Davidson Road Glide and Street Glide motorcycles.
- No flashing required.
Amp Highlights
- 2-channel motorcycle amplifier.
- 80 watts RMS x 2 at 2 ohms.
- Class D amp technology.
- Designed for select 2014-up Harley-Davidson motorcycles.
- Mounting plates for Road Glide, Street Glide, and Ultra model Harleys included.
- Power, speaker, and input wiring harnesses included.
- Speaker-level inputs compatible with factory radios and aftermarket receivers.
- Bypass Port provides signal for system expansion.
- Fuse rating: 15A x 1.
- Dimensions: 8.1″W x 1.62″H x 4.08″D.
- Warranty: 2 years.
Speaker Highlights
- 6″x9″ full-range motorcycle speakers
- Designed for select Harley-Davidson motorcycles
- Injection-molded polypropylene cone
- 1″ PEI dome tweeter
- Power handling up to 200 watts RMS (400 watts peak)
- Frequency response: 20-25,000 Hz
- Sensitivity: 94 dB
- 2-ohm impedance
- Grilles not included
- Top-mount depth: 3″
- Warranty: 2 years
Features
Overview: The Kenwood XM69R 6″x9″ 2-way speakers are designed specifically for mounting into the hardshell saddlebag lids on select Harley-Davidson motorcycles. The XM69Rs feature IMPP (Injection-Molded Polypropylene) woofer cones with rubber surrounds and 1″ PEI dome tweeters. The speakers feature a sealed design to prevent water ingress and include 2 pairs of silicon mounting gaskets. The 2-ohm speakers can handle up to 200 watts RMS (400W peak) and have a frequency response of 20Hz-25kHz.
Compatibility: The XM69R speakers can be installed in the following Harley-Davidson motorcycles using one of two saddlebag lid installation kits, which are sold separately:
- CA-CUT14: 2014-up Harley-Davidson Street Glide, Ultra Classic, Road Glide, and Road Glide Ultra.
- CA-LID98: 1998-2013 Harley-Davidson Street Glide, Electra Glide Classic, Ultra Classic, Road Glide, and Road Glide Ultra.
Speaker Specifications
| Speaker Size | 6×9 |
| Design | 2-Way |
| Tweeter | 1″ Dome |
| Impedance | 2-Ohms |
| Tweeter Composition | PEI |
| Woofer Composition | IMPP |
| Woofer Surround | Rubber |
Speaker Dimensions
| Top-Mount Depth Inches | 2 15/16 |
| Bottom-Mount Depth Inches | N/A |
| Cutout Diameter or Length | 0 |
| Mounting Height | 0.317 |
