Description
This potent monoblock subwoofer amplifier employs our high-speed NexD™ switching design to achieve unprecedented efficiency and amazing power output in a very compact chassis. The XD1000/1v2 is capable of delivering 1000 W of continuous power into a 2 ohm load (14.4V, 1% THD), making it a great choice to drive higher power subwoofer systems.
Designed specifically for subwoofer applications, the XD1000/1 includes a variable slope low-pass filter with continuously variable cutoff frequency selection from 50-500 Hz and a defeatable infrasonic filter (30 Hz, 24 dB/oct.). The XD1000/1v2 also features the v2 Spec feature set, which consists of automatic turn-on capability (via signal sensing or DC-offset sensing), and a dual-range differential-balanced input section able to handle a wide range of input voltage levels. With the addition of an HD-RLC remote level control (sold separately), the amplifier’s level can be directly controlled from the driver’s seat.

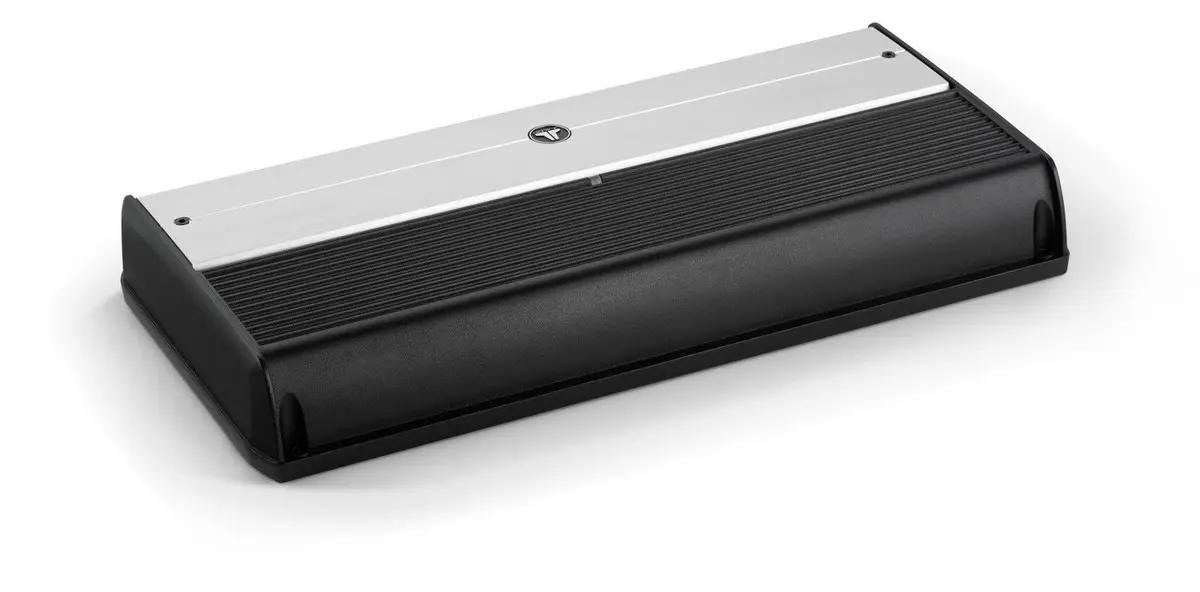

This amplifier features a black powder-coat finish and a gasketed, brushed aluminum cover for the controls.
Specifications
Rated Continuous (RMS) Power @ 14.4 V
| @ 4 Ω | 600 W RMS x 1 |
| @ 3 Ω | 800 W RMS x 1 |
| @ 2 Ω | 1000 W RMS x 1 |
| @ 1.5 Ω | N/A |
Rated Continuous (RMS) Power @ 12.5 V
| @ 4 Ω | 500 W RMS x 1 |
| @ 3 Ω | 650 W RMS x 1 |
| @ 2 Ω | 800 W RMS x 1 |
| @ 1.5 Ω | N/A |
General Specifications
| Frequency Response | 7 Hz – 500 Hz (+0, -1dB) |
| S/N Ratio, referred to highest rated power | >83 dB below rated power (A-weighted, 20 Hz – 20 kHz noise bandwidth) |
| S/N Ratio, referred to 1 W | >53 dB (A-weighted, 20 Hz – 20 kHz noise bandwidth) |
| Damping Factor @ 4 Ω | >1000 / 50 Hz |
| Damping Factor @ 2 Ω | >500 / 50 Hz |
| THD+N @ Rated Power | <1% @ 2 Ω per Ch. |
| Input Voltage Range @ RCA Inputs | Switchable from 200 mV – 2 V RMS (Low) to 800 mV – 8 V RMS (High) |
| Min.Copper Power / Ground Wire Gauge | 4 AWG wire |
| Fuse Rating | 80 A (AFS, AGU or MaxiFuse™) |
Signal Processing
| Filter Mode(s) | Low-Pass only |
| Filter Slope(s) | 12/24 dB/octave |
| Filter Frequency Range | 50 Hz – 500 Hz |
| Detented, Calibrated Filter Freq. Potentiometer | Yes |
| Filter Defeat Function | Yes |
| Infrasonic Filter | 30 Hz, defeatable |
| Bass Boost EQ | No |
| Output Polarity Switch | No |
| Remote Subwoofer Level Control | Optional (HD-RLC) |
| Remote Bass EQ Boost Control | No |
| Pass-Through Preamp Output | Buffered |
Physical Specifications
| Height (H) | 2.05 in / 52 mm |
| Width (W) | 14.73 in / 374 mm |
| Depth (D) | 7.09 in / 180 mm |
