Description

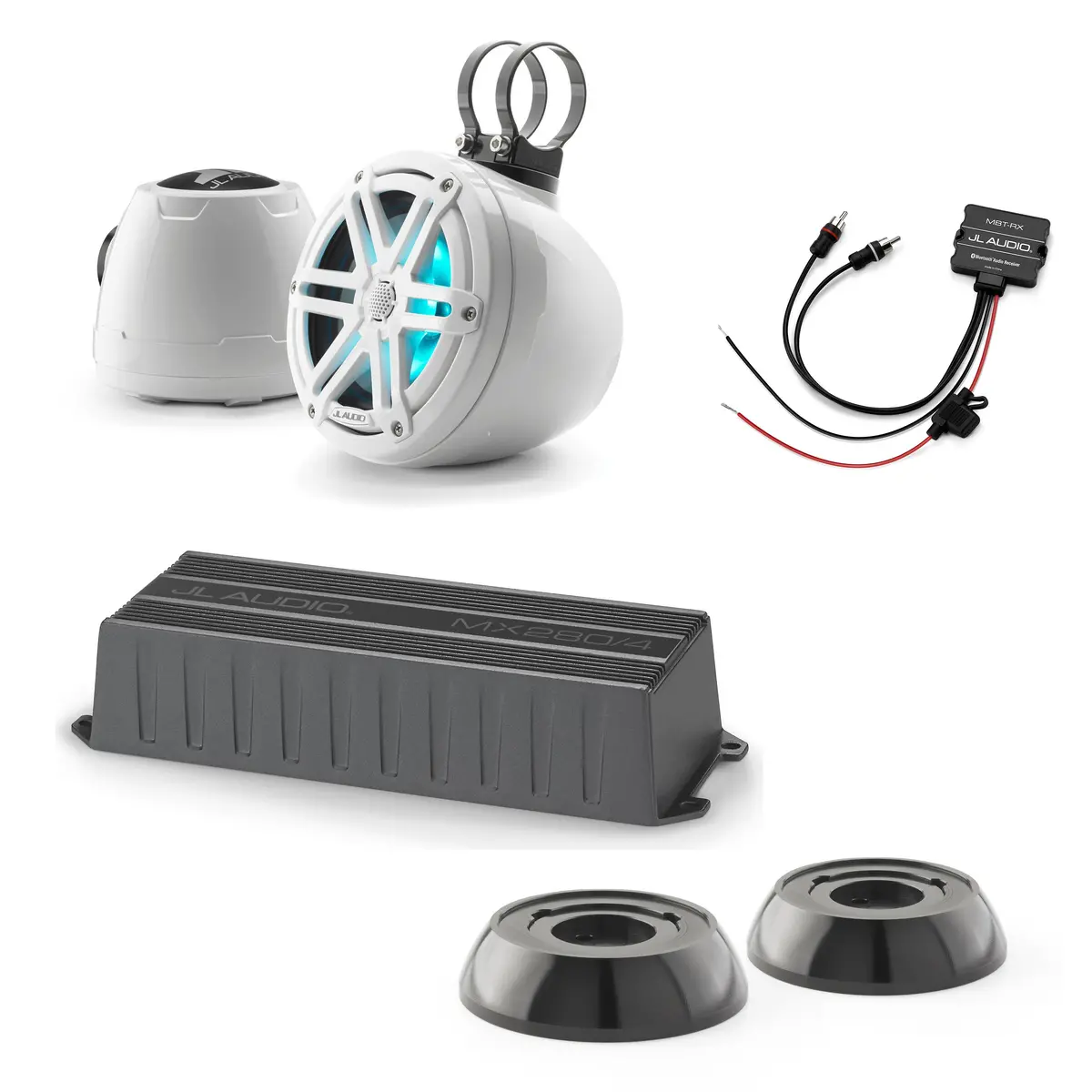

JL Audio MX280/4 4-channel Marine Amplifier + M3-650VEX-GW-S-GW-I 6.5″ Enclosed Coaxial Tower Speakers w/ LEDs + MBT-RX Audio Receiver + PS-SWMCP-B-SM Mounting for Jet Skis
Amp Highlights
4-Channel Class D Full-Range Amplifier, 70 W x 4 @ 2 Ω / 50 W x 4 @ 4 Ω – 14.4V
Engineered specifically for powersports applications, the 4-channel MX280/4 amplifier employs our high-speed NexD™ switching design to deliver plenty of clean power, without straining charging systems. Its tiny, cast aluminum chassis is highly resistant to corrosion, with an IPX6 water-resistance rating, making it perfect for motorcycles, ATV’s or other utility vehicles.
Generating a solid 50W x 4 into 4 ohms (14.4V, 1% THD), the MX280/4 is fully bridgeable, so it can be used as a 3-channel amplifier, or as a 2-channel amplifier producing a potent 140W x 2 into 4 ohms.
Other features include independent front and rear crossovers with selectable full-range, high-pass or low-pass filter controls and a dual-range input section that accepts a wide range of input voltage levels, from line-level all the way to high-power speaker level signals.
This amplifier features a black powder-coated finish, a gasket cover for the controls and stainless steel hardware for durability.
Amp Specifications
Rated Continuous (RMS) Power @ 14.4 V
| @ 4 Ω | 50 W RMS x 4 |
| @ 2 Ω | 70 W RMS x 4 |
| Bridged @ 4Ω | 140 W RMS x 2 |
Rated Continuous (RMS) Power @ 12.5 V
| @ 4 Ω | 36 W RMS x 4 |
| @ 2 Ω | 52 W RMS x 4 |
| Bridged @ 4Ω | 100 W RMS x 2 |
General Specifications
|
Frequency Response |
20 Hz – 20 kHz (+0, -1dB) |
| S/N Ratio, referred to highest rated power | >89.5 dB below rated power (A-weighted, 20 Hz – 20 kHz noise bandwidth) |
| S/N Ratio, referred to 1 W | >68 dB (A-weighted, 20 Hz – 20 kHz noise bandwidth) |
| Damping Factor @ 4 Ω | >60 / 50 Hz |
| Damping Factor @ 2 Ω | >30 / 50 Hz |
| THD+N @ Rated Power | <1% @ 2 Ω per Ch. |
| Input Voltage Range @ RCA Inputs | Switchable from 250 mV – 4 V RMS (Low) to 750 mV – 15 V RMS (High) |
| Min.Copper Power / Ground Wire Gauge | 8 AWG wire |
| Fuse Rating | 35 A (AFS, AGU or MaxiFuse™) |
Speaker Highlights
M3 6.5-inch Marine Enclosed Coaxial Speaker System (60 W, 4 Ω) – Gloss White Enclosure, Gloss White Sport Grille with RGB Illumination
Ideal for powersports, marine and off-road vehicle applications, these enclosed speaker systems include our high-performance, M3 6.5-inch marine coaxial speakers with silk dome tweeters housed in rugged, injection-molded enclosures to deliver clean, loud audio
Speaker Features
| Continuous Power Handling (RMS) | 60 W |
| Peak Music Power | 225 W |
| Recommended Amplifier Power (RMS) | 20 – 120 W / Ch. |
| System Efficiency | 89.5 dB @ 1 W / 1 m |
| System Nominal Impedance | 4 Ω |
| System Frequency Response | 100 Hz – 25 KHz ± 3 dB |
Speaker Specifications
| Enclosure Diameter (A) | 7.03 in / 179 mm |
| Enclosure Depth (B) | 6.16 in / 156 mm |
| Height including Mounting Clamp Receiver* (C) | 7.27 in / 185 mm |
| Mounting Clamp Receiver / Enclosure Offset (D) | 0.20 in / 5 mm |
MBT-RX
- Marine-rated Bluetooth® adapter
- Add Bluetooth audio streaming capability to almost any audio system
- IPX6 water-resistant
- Includes 5-foot RCA cable
- Ideal for boats and powersports vehicles
- Warranty: 2 years
PS-SWMCP-B-SM
Black Anodized Surface Mounting fixture for VeX models. Sold in pairs.
Designed to attach VeX™ Enclosed Speaker Systems to flat surfaces, these low-profile mounting fixtures are precision-machined from marine-grade aluminum to create rock-solid attachment points. A swivel-mounting base is included with each fixture for 360 degrees of total rotation, allowing precise aiming of each VeX™ pod for optimum sound. Each fixture features a tough, black anodized finish that’s UV/corrosion-resistant and includes stainless-steel hardware for years of durability in all outdoor environments. Each mounting fixture set is designed to mount two VeX™ Pods.
