Description
JL Audio MM105 Digital Media Marine Receiver + JL Audio XDM600/6 6-channel Car and Marine Amplifier + x3 Pairs M3-650X-C-GW 6.5″ Marine Speakers with White Classic Grilles Marine Bundle.
Source Unit Highlights

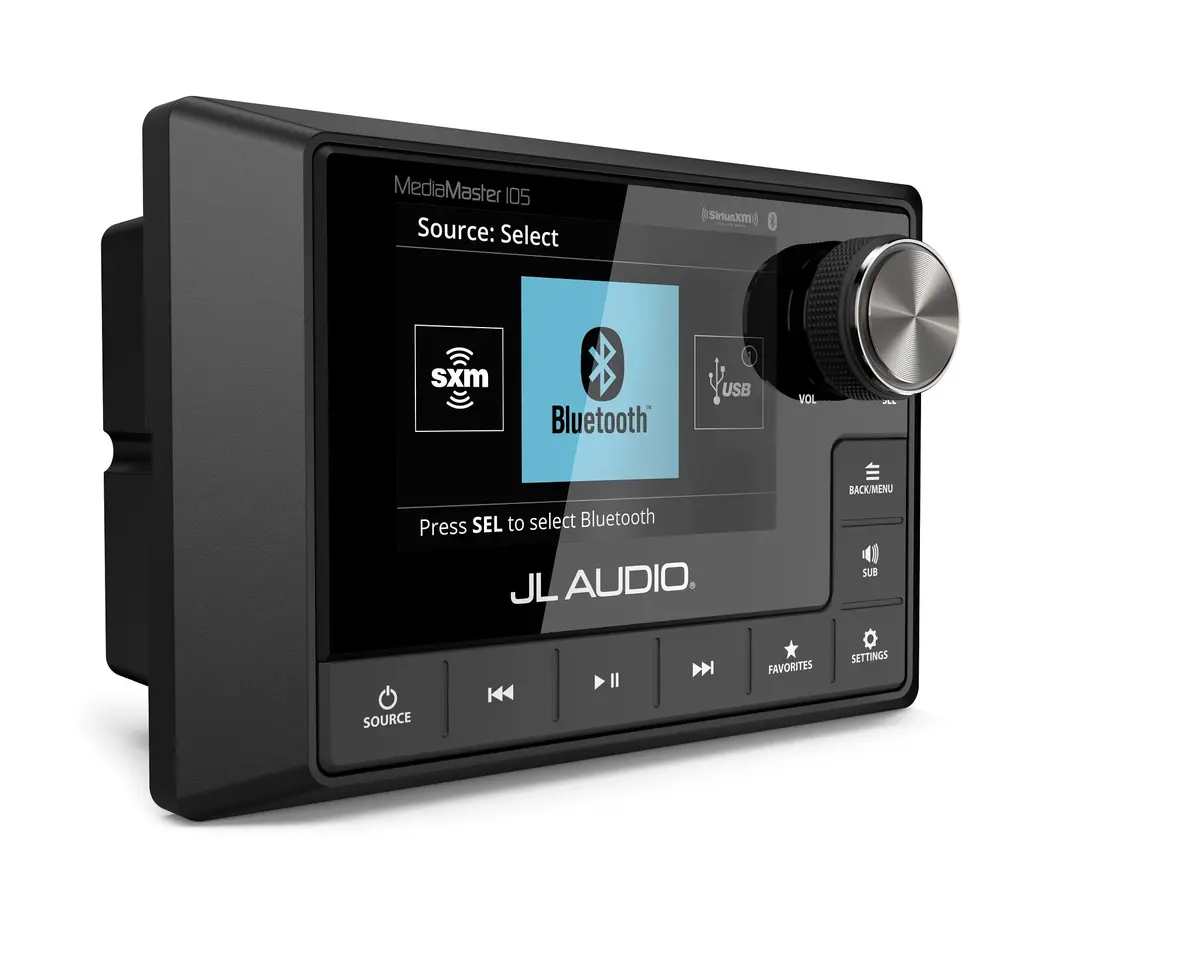

With the MediaMaster® 105, a Premium Source Unit designed to withstand anything Mother Nature can dish out. This source unit delivers top-flight sound performance and advanced audio features specifically designed for marine and powersports applications. Its rugged, weatherproof (IP67 rated) chassis houses an ultra-bright, 3.5-inch full-color LCD display, with separate Day / Night lighting themes for outstanding visibility, even in bright sunshine. When in motion, you will also appreciate the clean user interface with big text and large backlit controls.
- Injection-molded mica-filled polypropylene cone bodies with synthetic rubber surrounds, specifically formulated with UV inhibitors for marine duty.
- Marine-grade, synthetic fiber spiders with progressive roll designs to withstand high humidity.
- Specifically engineered polymer baskets are corrosion and UV-resistant and encapsulate the woofer’s motor system to prevent corrosion.
- Gold-plated, marine-grade brass connection terminals
- Marine-grade stainless steel mounting hardware is included.
Source Unit Features
| Input Operating Voltage | 10 – 15.9 VDC |
| Standby Current Draw | 120 mA |
| Operating Current Draw | 1.5 A |
| Recommended Fuse Value | 5 A |
| Remote Turn-on Capacity | 500 mA (max) |
| Operating Temperature Range | -4 F to +158 F (-20 C to +70 C) |
| Display Size / Type | 3.5-inch / TFT LCD backlighted |
| Display Resolution | 320 x 480 |
| Output Channels | One stereo pair and mono subwoofer RCA plugs per zone |
| Output Zones | Relative, Absolute, Fixed or Off |
| Maximum Output Voltage | 4V RMS (Relative or Absolute), Selectable 4V/2V/1V RMS (Fixed |
Source Unit Specifications
| Tuner | |
| FM Tuner with RDS | 87.5 MHz to 107.9 MHz (0.2 MHz step) |
| AM Tuner | 530 kHz to 1710 kHz (10 kHz step) |
| DAB+ Tuner | 170 MHz to 230 MHz |
| Favorites | 24 presets across all tuners |
| Bluetooth® | |
| Profile | A2DP v1.2, AVRCP v1.4 |
| Core Specification | Version 2.1 + EDR |
| Codec | SBC, Qualcomm® aptX™ audio |
| Connection Range | Up to 35 ft / 11 m |
| USB | |
| Interface | USB 2.0 host |
| Maximum Current Output | USB1: 1 A / USB2: 500 mA |
| Supported Audio Formats | MP3, MP4, WAV, AAC, M4A, M4B |
| Apple Compatibility | iPhone 5 or beyond (functionality contingent upon compatible iOS release) |
Source Unit Physical Specifications
| Height (H) | 3.91 in / 99 mm |
| Width (W) | 5.95 in / 151 mm |
| Depth (D1) | 2.56 in / 65 mm |
| Depth (D2) | 3.94 in / 100 mm |
| Mounting Hole Height (A) | 3.27 in / 83 mm |
| Mounting Hole Width (B) | 4.72 in / 120 mm |
Amplifier Highlights
6-Channel Class D Full-Range Car/Marine Amplifier, 100 W x 6 @ 2 Ω / 75 W x 6 @ 4 Ω – 14.4V
The incredibly flexible XDM600/6 packs a serious full-range wallop and delivers a stunning 100 watts to each of its six channels into 2 ohms (14.4V, 1% THD). The technology that makes this much power possible in such a compact chassis is our advanced NexD™ high-speed switching design, which permits full bandwidth Class D operation with extremely low distortion and remarkable efficiency.
Suitable for car or boat installations, the XDM600/6 is built with marine-grade materials and features an exclusive, dual-mode input filter for noise-free performance in boats or cars. Automatic turn-on capability (via signal sensing or DC-offset sensing) is also onboard for easy factory system upgrades.
With the XDM600/6, you have plenty of great use options. Configure it as a six-channel satellite amplifier with 75 W x 6 @ 4 Ω, or bridge four of its channels to create a staggered power four-channel amplifier with 200 W x 2 @ 4 Ω for your front satellites and 75 W x 2 @ 4 Ω for your rear satellites. You can also drive two subwoofers with 200 W each, plus a pair of satellites with 75W x 2.
The XDM600/6 includes a 12 dB / octave filter for each channel bank, which can be configured as a low-pass or high-pass filter and offers continuously variable cutoff frequency selection from 50-500 Hz. With the addition of an optional HD-RLC or MHD-RLC (water-resistant) remote level controller (each sold separately), you have the ability to adjust the level of two, four, or all six amplifier channels directly from the driver’s seat or cockpit.
Finished in a sleek, black powder-coat, all controls are protected beneath a gasketed, removable top cover for easy access.
Amp Specifications
Rated Continuous (RMS) Power @ 14.4 V
| @ 4 Ω | 75 W RMS x 6 |
| @ 2 Ω | 100 W RMS x 6 |
| Bridged @ 4Ω | 200 W RMS x 3 |
Rated Continuous (RMS) Power @ 12.5 V
| @ 4 Ω | 60 W RMS x 6 |
| @ 2 Ω | 90 W RMS x 6 |
| Bridged @ 4Ω | 180 W RMS x 3 |
General Specifications
| Frequency Response | 12 Hz – 22 kHz (+0, -1dB) |
| S/N Ratio, referred to highest rated power | >104 dB below rated power (A-weighted, 20 Hz – 20 kHz noise bandwidth) |
| S/N Ratio, referred to 1 W | >84 dB (A-weighted, 20 Hz – 20 kHz noise bandwidth) |
| Damping Factor @ 4 Ω | >150 / 50 Hz |
| Damping Factor @ 2 Ω | >75 / 50 Hz |
| THD+N @ Rated Power | <1% @ 2 Ω per Ch. |
| Input Voltage Range @ RCA Inputs | 200 mV – 4 V RMS |
| Min.Copper Power / Ground Wire Gauge | 4 AWG wire |
| Fuse Rating | 50 A (AFS, AGU or MaxiFuse™) |
Signal Processing
| Filter Mode(s) | Low-Pass or High-Pass |
| Filter Slope(s) | 12 dB/octave |
| Filter Frequency Range | 50 Hz – 500 Hz |
| Detented, Calibrated Filter Freq. Potentiometers | Yes |
| Filter Defeat Function | Yes |
| Remote Level Control | Optional HD-RLC or MHD-RLC (water-resistant) |
| Remote Level Modes | 2 or 4 or All Channels |
| Channel Input Mode Switch | Yes (2/4/6 ch.) |
| Pass-Through Preamp Output | None |
| Source Channel Selection for PreOuts | N/A |
Physical Specifications
| Height (H) | 2.05 in / 52 mm |
| Width (W) | 10.23 in / 260 mm |
| Depth (D) | 7.09 in / 180 mm |
| Net Weight | 5.8 lb / 2.63 kg |
Speaker Highlights
- 6-1/2″ 2-way marine speakers (pair)
- injection-molded, mica-filled polypropylene woofer with synthetic rubber surround
- 3/4″ silk dome tweeter
- UV- and corrosion-resistant polymer baskets and grilles
- designed for free-air applications (no enclosures needed)
- for best performance, speaker needs at least 2 cubic feet of airspace
- handles up to 60 watts RMS (225 watts peak power)
- frequency response: 55-25,000 Hz
- sensitivity: 89.5 dB
- cutout diameter: 4.972
- frame diameter: 6.91
- mounting depth: 2.825
- warranty: 2 years
Speaker Features
| Speaker Size | 6 1/2 |
| Design | 2-way |
| Tweeter Design | 3/4″ Dome |
| Tweeter Composition | Silk |
| Woofer Composition | Mica-Filled IMPP |
| Woofer Surround | Rubber |
| Parts Warranty | 2 Years |
| Labor Warranty | 2 Years |
Speaker Specifications
| Sensitivity | 89.5 dB at 1 watt |
| Frequency Response | 55 – 25k Hz |
| Max RMS Power Handling | 60 |
| Peak Power Handling (Watts) | 225 |
| Impedance (Ohms) | 4 |
| Top-mount Depth (Inches) | 2 7/8 |
| Bottom-mount Depth (Inches) | N/A |
| Cutout Diameter or Length (inches) | 5 |
