Description
JL Audio MM105 Weatherproof Source Unit with Full-Color LCD Display + x2 Pairs M3-650X-S-GW 6.5″ White Marie Speaker with Sports Grilles
Speakers require an amplifier for power.
Source Unit Highlights

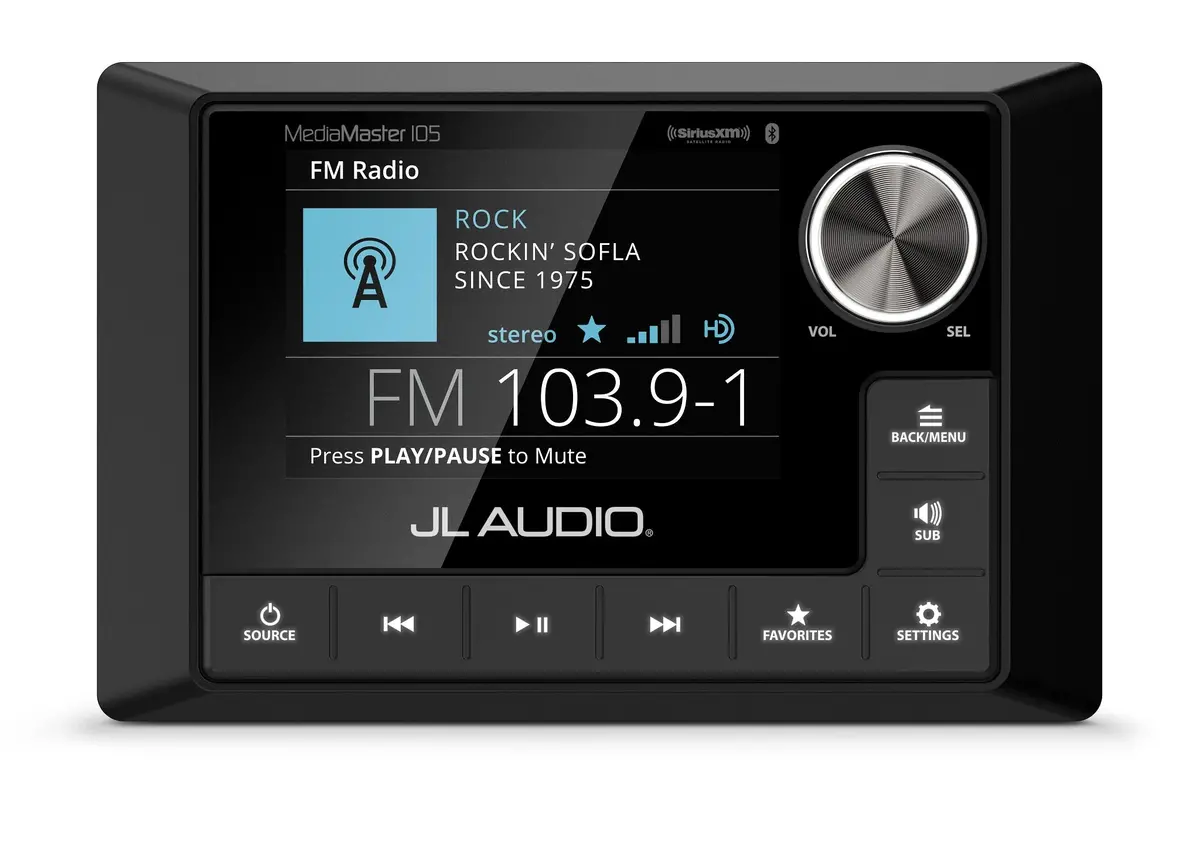

With the MediaMaster® 105, a Premium Source Unit designed to withstand anything Mother Nature can dish out. This source unit delivers top-flight sound performance and advanced audio features specifically designed for marine and powersports applications. Its rugged, weatherproof (IP67 rated) chassis houses an ultra-bright, 3.5-inch full-color LCD display, with separate Day / Night lighting themes for outstanding visibility, even in bright sunshine. When in motion, you will also appreciate the clean user interface with big text and large backlit controls.
- Injection-molded mica-filled polypropylene cone bodies with synthetic rubber surrounds, specifically formulated with UV inhibitors for marine duty.
- Marine-grade, synthetic fiber spiders with progressive roll designs to withstand high humidity.
- Specifically engineered polymer baskets are corrosion and UV-resistant and encapsulate the woofer’s motor system to prevent corrosion.
- Gold-plated, marine-grade brass connection terminals
- Marine-grade stainless steel mounting hardware is included.
Source Unit Features
| Input Operating Voltage | 10 – 15.9 VDC |
| Standby Current Draw | 120 mA |
| Operating Current Draw | 1.5 A |
| Recommended Fuse Value | 5 A |
| Remote Turn-on Capacity | 500 mA (max) |
| Operating Temperature Range | -4 F to +158 F (-20 C to +70 C) |
| Display Size / Type | 3.5-inch / TFT LCD backlighted |
| Display Resolution | 320 x 480 |
| Output Channels | One stereo pair and mono subwoofer RCA plugs per zone |
| Output Zones | Relative, Absolute, Fixed or Off |
| Maximum Output Voltage | 4V RMS (Relative or Absolute), Selectable 4V/2V/1V RMS (Fixed |
Source Unit Specifications
| Tuner | |
| FM Tuner with RDS | 87.5 MHz to 107.9 MHz (0.2 MHz step) |
| AM Tuner | 530 kHz to 1710 kHz (10 kHz step) |
| DAB+ Tuner | 170 MHz to 230 MHz |
| Favorites | 24 presets across all tuners |
| Bluetooth® | |
| Profile | A2DP v1.2, AVRCP v1.4 |
| Core Specification | Version 2.1 + EDR |
| Codec | SBC, Qualcomm® aptX™ audio |
| Connection Range | Up to 35 ft / 11 m |
| USB | |
| Interface | USB 2.0 host |
| Maximum Current Output | USB1: 1 A / USB2: 500 mA |
| Supported Audio Formats | MP3, MP4, WAV, AAC, M4A, M4B |
| Apple Compatibility | iPhone 5 or beyond (functionality contingent upon compatible iOS release) |
Physical Specifications
| Height (H) | 3.91 in / 99 mm |
| Width (W) | 5.95 in / 151 mm |
| Depth (D1) | 2.56 in / 65 mm |
| Depth (D2) | 3.94 in / 100 mm |
| Mounting Hole Height (A) | 3.27 in / 83 mm |
| Mounting Hole Width (B) | 4.72 in / 120 mm |
Speaker Highlights
- 6½” 2-way marine speakers (pair)
- Injection-molded, mica-filled polypropylene woofer with synthetic rubber surround
- ¾” silk dome tweeter
- UV- and corrosion-resistant polymer baskets and grilles
- Designed for free-air applications (no enclosures needed)
- for best performance, speaker needs at least 2 cubic feet of airspace
- Handles up to 60 watts RMS (225 watts peak power)
- Frequency response: 55-25,000 Hz
- Sensitivity: 89.5 dB
- Cutout diameter: 4.972
- Frame diameter: 6.9
- Mounting depth: 2.825
- Warranty: 2 years
Speaker Specifications
| Speaker Size | 6½ |
| Design | 2-way |
| Tweeter Design | ¾ Dome |
| Tweeter Composition | Silk |
| Woofer Composition | Mica-Filled IMPP |
| Woofer Surround | Rubber |
| Sensitivity | 89.5 dB at 1 watt |
| Frequency Response | 55 – 25k Hz |
| Max RMS Power Handling | 60 |
| Peak Power Handling (Watts) | 225 |
| Impedance (Ohms) | 4 |
| Top-mount Depth (Inches) | 2⅞ |
| Bottom-mount Depth (Inches) | N/A |
| Cutout Diameter or Length (inches) | 5″ |
