Description
Highlights

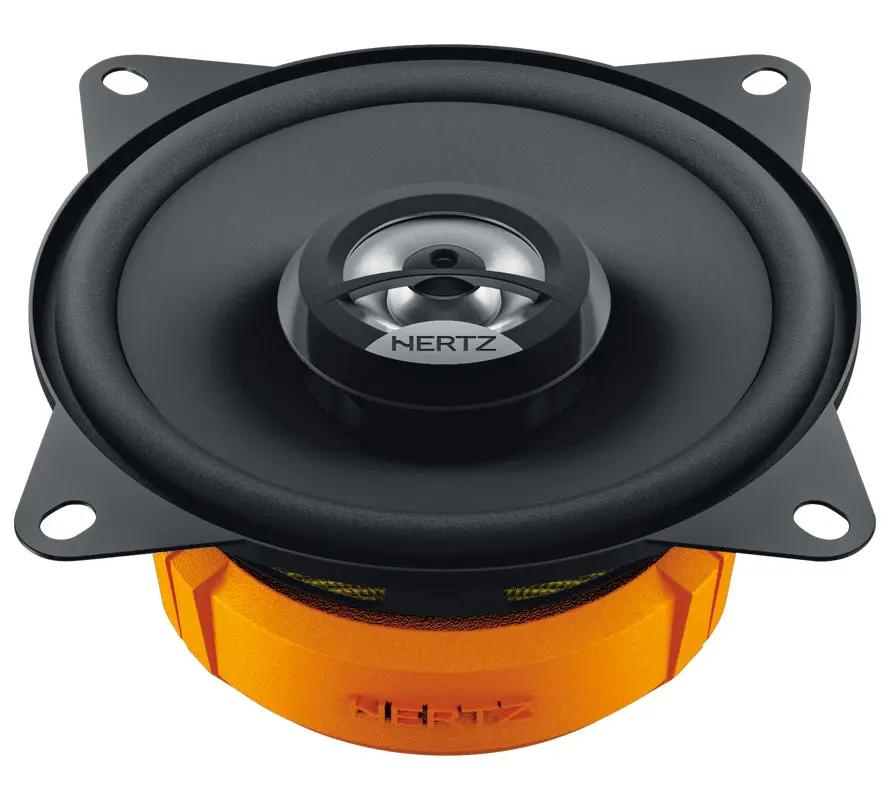

To meet all installation needs, without giving up on Hertz quality and performance, The DCX 100.3 car audio coaxials is designed with maniacal care to provide a linear frequency response and ensure high reliability. A Neodymium magnet, PEI dome tweeter, built-in crossover, TPU (Thermoplastic polyurethane) surround and a pressed-paper cone provide the optimum ratio between installation friendliness and sound with dynamic and emotional impact.
Features
- 2-Way car speakers
- 2 Year Warranty
- 4″ treated paper woofer with polyurethane surround
(grilles not included)
Specifications
| Component | 2-Way Coaxial |
| Size mm (in.) | 100, (4) |
| Woofer Magent Size d x d x h mm (in.) | 70 x 32 x 10 (2.7 x 1.3 x 0.4 in.) |
| Weight of one Speaker kg, lb. | 0.45, 0.99 |
| Power Handling – Peak | 60 W |
| Power Handling – Continuous | 30 W |
| Impedance | 4 Ω |
| Frequency response | 70 ÷ 21k Hz |
| Sensitivity | 92 dB SPL |
| Voice coil Ø | 25 (1.0) mm (in.) |
| Woofer size | 100 (4.0) mm (in.) |
| Tweeter size | 15 (0.6) mm (in.) |
| Woofer magnet | High density flux ferrite |
| Tweeter magnet | Neodymium |
| Woofer cone | Water-repellent pressed paper |
| Tweeter dome | PEI |
Electro-acoustic Specifications
| D mm | 85 |
| Re Ohm | 3,3 |
| Fs Hz | 115 |
| Vas I | 1,7 |
| Mms g | 5,0 |
| Cms mm/N | 0, 38 |
| BL T*M | 3,5 |
| Qts | 0,79 |
| Qes | 0,96 |
| Qms | 4,33 |
| Spl dB | 92 |
Physical Specifications
| A | 99 mm (3.9 in.) |
| A3 | 129 mm (5.1 in.) |
| B | 94 mm (3.7 in.) |
| C | 50 mm (2.0 in.) |
| D | 43 mm (1.7 in.) |
