Description
Highlights

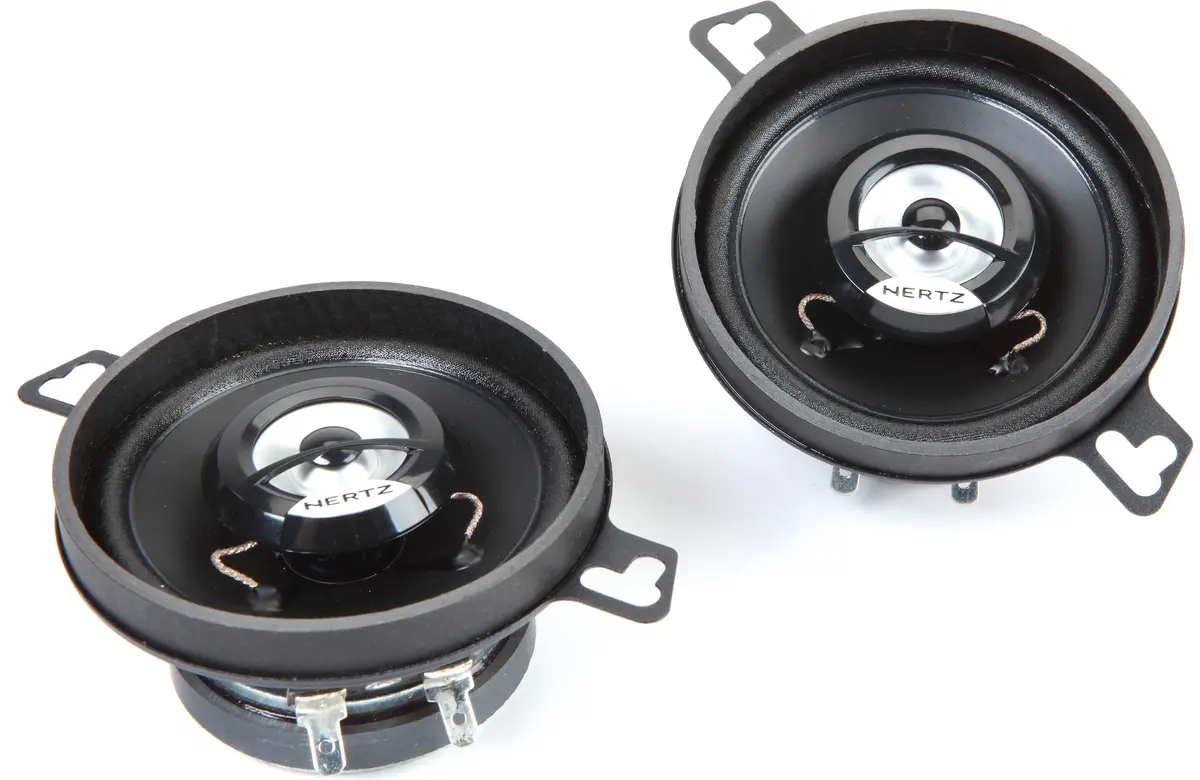

The DCX 87.3 is a coax combining a woofer made of the highest performance materials with a neodymium tweeter featuring the exclusive PEI dome. Despite its compact size, the DCX 87.3 features an oversized magnetic group for ultimate control, still maintaining a compact size. For those who look for a high performance two-way coax, the DCX 87.3 is able to ensure wide frequency response and excellent sound in any installation.
Features
- 2-Way car speakers
- 2 Year Warranty
- 3-1/2″ treated paper woofer with cloth surround
(grilles not included)
Specifications
| Component | 2-Way Coaxial |
| Size mm (in.) | 87 (3.4) |
| Power Handling – Peak W | 60 W |
| Power Handling – Continuous W | 30 W |
| Impedance | 4 Ω |
| Depth mm (in.) | 45 (1.8) |
| Frequency response Hz | 130 ÷ 21k Hz |
| Woofer Magnet Size D x d x h mm (in.) | 60 x 24 x 8 (2.4 x 0.9 x 0.3) |
| Weight of One Speaker kg (lb.) | 0.31 (0.68) |
| Sensitivity dB SPL | 92 dB SPL |
| Voice coil Ø | 20 (0.8) mm (in.) |
| Woofer size mm (in.) | 87 (3.4) mm (in.) |
| Tweeter size mm (in.) | 15 (0.6) mm (in.) |
| Woofer magnet | High density flux ferrite |
| Tweeter magnet | Neodymium |
| Woofer cone | Water-repellent pressed paper |
| Tweeter dome | PEI |
Electro-Acoustic Specifications
| D mm | 70 |
| Re Ohm | 3,1 |
| Fs Hz | 190 |
| Vas I | 0,7 |
| Mms g | 2,0 |
| Cms mm/N | 0,35 |
| BL T*m | 2,5 |
| Qts | 1 |
| Qes | 1,25 |
| Qms | 5,66 |
| Spl dB | 92 |
Physical Specifications
| A | 87 mm (3.4 in.) |
| A3 | 120 mm (4.7 in.) |
| B | 81 mm (3.2 in.) |
| C | 45 mm (1.8 in.) |
| D | 34 mm (1.3 in.) |
