Description
Highlights

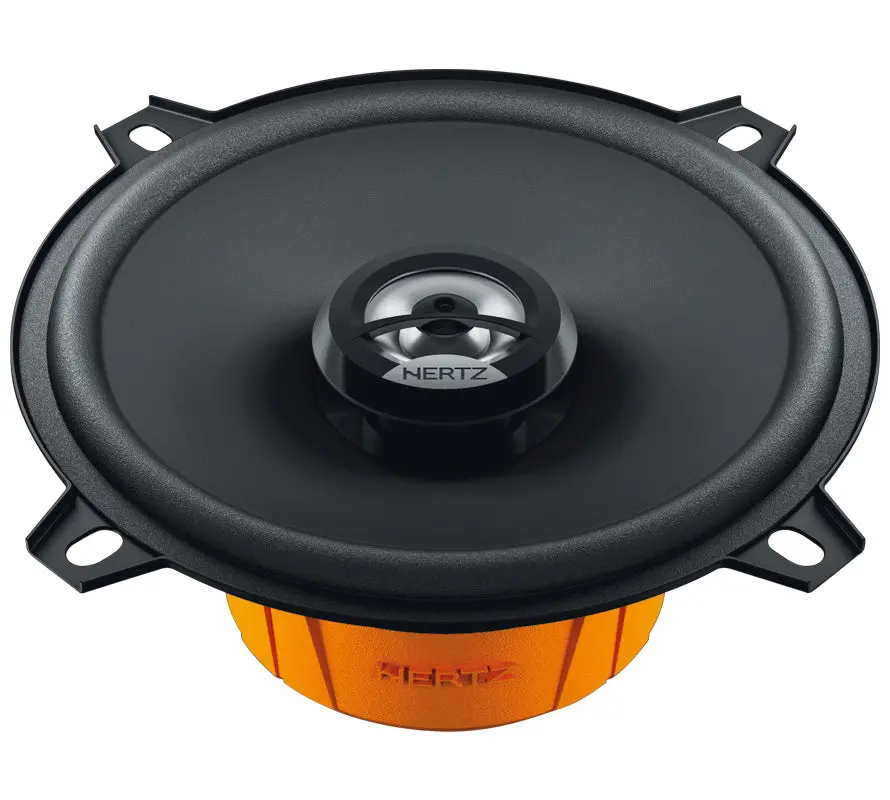

To meet all installation needs, without giving up on Hertz quality and performance, The Dieci DCX 130.3 car audio coaxials were designed with maniacal care to provide a linear frequency response and ensure high reliability. A Neodymium magnet, PEI dome tweeter, built-in crossover, TPU (Thermoplastic polyurethane) surround and a pressed-paper cone provide the optimum ratio between installation friendliness and sound with dynamic and emotional impact.
Features
- 2-Way car speakers
- 2 Year Warranty
- 5-1/4″ treated paper woofer with polyurethane surround
(grilles not included)
Specifications
| Component | 2-Way Coaxial |
| Size mm (in.) | 130 (5) |
| Depth mm (in.) | 59 (2.3) |
| Woofer Magnet Size D x d x h mm (in.) | 70 x 32 x 15 (2.7 x 1.3 x 0.6) |
| Weight of one Speaker kg (lb.) | 0.56 (1.23) |
| Power Handling – Peak | 80 W |
| Power Handling – Continuous | 40 W |
| Impedance | 4 Ω |
| Frequency response | 65 ÷ 21k Hz |
| Sensitivity dB SPL | 93 dB SPL |
| Voice coil Ø | 25 (1.0) mm (in.) |
| Woofer size | 130 (5.0) mm (in.) |
| Tweeter size | 15 (0.6)mm (in.) |
| Woofer magnet | High density flux ferrite |
| Tweeter magnet | Neodymium |
| Woofer cone | Water-repellent pressed paper |
| Tweeter dome | PEI |
Electro-Acoustic Specifications
| D mm | 122 |
| Re Ohm | 3,3 |
| Fs Hz | 82 |
| Vas I | 7 |
| Mms g | 7,4 |
| Cms mm/N | 0,51 |
| BL T*m | 3,8 |
| Qts | 0,76 |
| Qes | 0,93 |
| Qms | 4,3 |
| Spl dB | 93 |
Physical Specifications
| A | 130 mm (5.0 in.) |
| A3 | 151 mm (5.9 in.) |
| B | 116 mm (4.6 in.) |
| C | 59 mm (2.3 in.) |
| D | 52 mm (2.0 in.) |
