Description

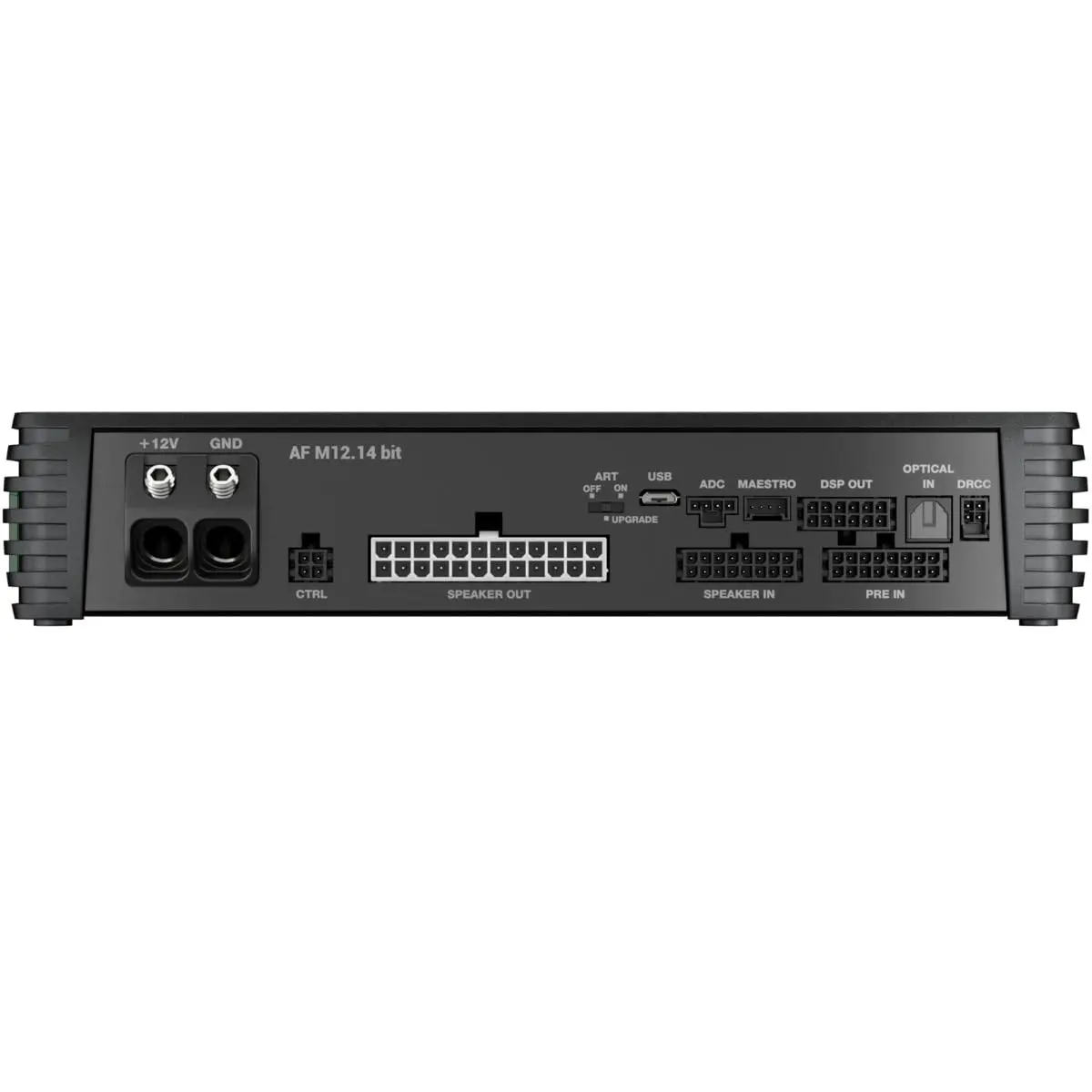

Audison AF M12.14 bit DSP Amplifier 12x90W @ 2 ohm Class D Fully Bridgeable
AF M12.14 bit boasts twelve high-fidelity amplified channels 60 x 12 @4Ω*, 90W x 12 @2Ω* with the audiophile sound of the latest generation Audison D-Class technology. Higher switching frequencies, steeper filtering, and higher-tolerance components deliver sound above and beyond the expectation of Class D – in an amazingly compact package! This is combined with native DSP working at 24 bit/96 kHz, extending the audio band up to 40 kHz and earning the coveted High-Resolution certification. Bridging channel pairs results in 180 x 6 @4Ω*, guaranteeing flexible and powerful performance.
*Output Continuous Power (RMS) @14.4 VDC, 1% THD, all channels driven.
Highlights and Specs:
| Channels | 12 amplified |
| Class | D-Class |
| Watts | 60W x 12 @4Ω, 90W x 12 @2Ω, 180W x 6 @4Ω (bridged) |
| Total power RMS | 1080 W |
| Efficiency | 80% |
| Size | 240 x 47 x 156 / 9.44 x 1.85 x 6.14 |
| Weight | 2.04kg |
Features:
- Improved audio performance and power thanks to the latest generation of ADT (Audison D-Class) technology
- Unbeatable power/volume ratio up to 0.68 W RMS/cm³ reaching 82% of efficiency
- Hi-Res compatibility performance, with an extended audio band up to 40 kHz, made possible by and DSP working operation at 24 bit/96 kHz
- Maximum versatility thanks to the possibility of using the bridging option for each pair of power outputs
- Up to 14 output channels (12 amplified, 2 native pre-outs) controlled by the DSP to expand the system with other amplifiers
- 8 high/low-level inputs (and an optical Toslink digital input) support total connectivity even with the most complex OEM systems
- Extension card slot (additional 4 analog or 1 digital inputs)
- Electrical signal analysis for each input channel ensures proper integration and correction
- Acoustic analysis (with your USB microphone) integrates the response graph into the equalizer display. This ensures efficient tuning and great sound!
- Advanced signal routing options allow the technician to go beyond the predefined system definitions in the Configuration Wizard
