Description
Highlights

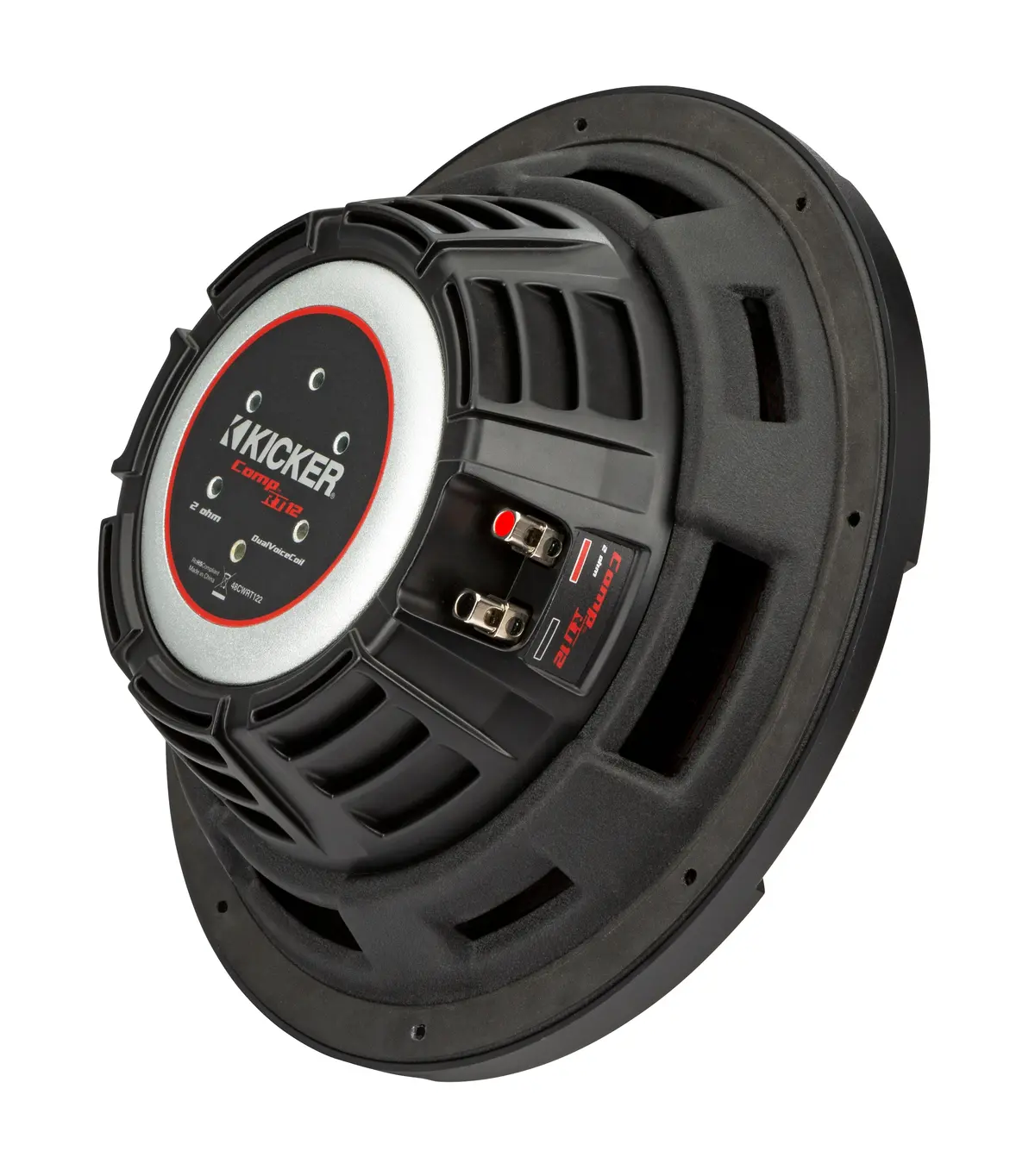

- 10″ shallow-mount subwoofer with dual 2-ohm voice coils
- injection-molded polypropylene cone
- rubber surround
- power handling: 400 watts RMS (800 watts peak)
- frequency response: 25-500 Hz
- sensitivity: 84.8 dB
- top-mount depth: 3.4125″
- sealed box volume: 0.4 – 1.25 cu. ft.
- ported box volume: 1.25 – 1.75 cu. ft.
- grille not included
- warranty: 1 year
Features
Dual Voice Coils: This woofer features dual 2Ω voice coils, offering wiring flexibility. When the voice coils are wired in parallel, the woofer presents a 1Ω load. When the voice coils are wired in series, the woofer presents a 4Ω load.
Shallow-Mount: Kicker’s CompRT series is designed to minimize depth, giving you subwoofer options where standard enclosures don’t fit.
All-Weather: Although not marine certified, Kicker describes the CompRT series as weatherproof.
Cooling: Kicker engineers developed a Forced Air Cooling system, using the motor structure to pull air across the voice coils, helping the sub run up to 20% cooler than the previous model.
Sealed Enclosures: Sealed enclosures provide the most control over a woofer and provide accurate sonic reproduction, making them suitable to all types of music. Kicker recommends sealed enclosures from 0.4 ft³ to 1.25 ft³.
Vented Enclosures: Vented (or ported) enclosures typically provide better overall efficiency than sealed so they are suitable for use with smaller amplifiers, giving you more bass output from a given amount of power. Kicker recommends the following ported enclosures:
- Minimum Enclosure Volume: 1.25 ft³ with a 10″ x 2″ x 20″ slot port
- Maximum Enclosure Volume: 1.75 ft³ with a 10″ x 2½” x 20″ slot port
Specifications
| Size | 10″ |
| Impedance (Ohms) | 1, 4 |
| Cone Material | Polypropylene |
| Surround Material | Santoprene Rubber |
| Free Air | No |
| Dual Voice Coil | Yes |
| Sensitivity | 84.8 dB at 1 watt |
| Max RMS Power Handling | 400 |
| Peak Power Handling | 800 |
Measurements
| Top Mount Depth | 3 1/2″ |
| Bottom Mount Depth | 4 1/4″ |
| Cutout Diameter or Length | 9 1/8″ |
