Description
Highlights

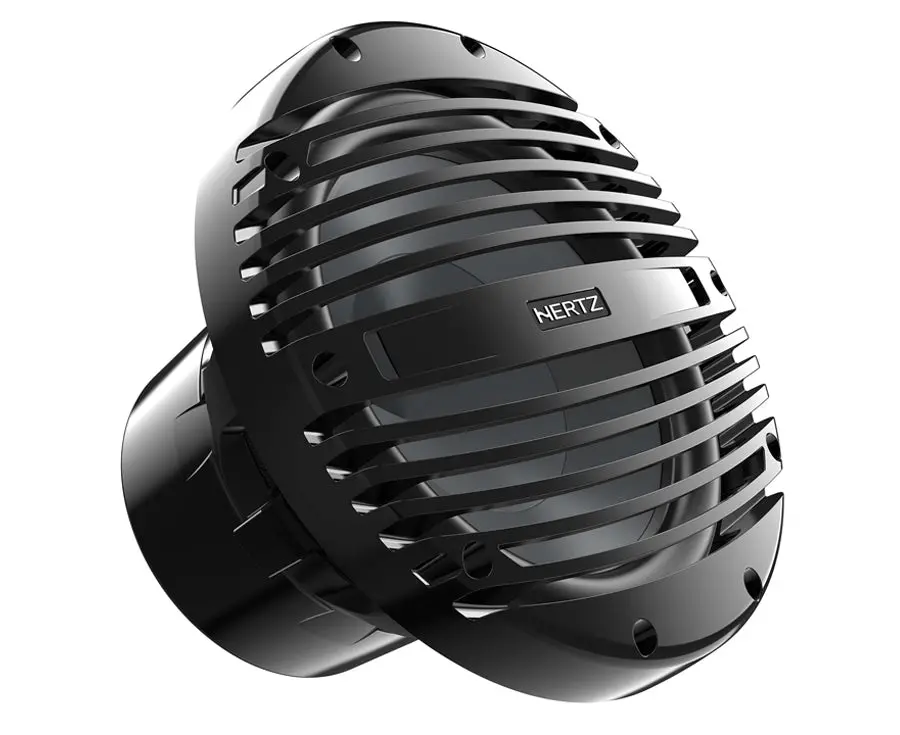

The HMS 10 B-2 (white) B-C (black) long throw 10” marine subwoofers are engineered for infinite baffle application. The 2 Ohm configuration makes the most of the amplifier power. It relieves the main speakers from the hard work of reproducing the lowest frequency range, adding bass output and punch to maximize the overall system performance. The FEM optimized high-excursion mobile equipment of HMS 10 B with a 50 mm (2”) voice coil is driven by a massive magnetic group, to obtain a perfect control also at very high level SPL. Engineered and tested for the real environment of application (UV, salt-fog, vibrations, water spray, thermal shock, dust ) HMS 10 B-C2 is nature-proof. The progressive design aramid fiber spider with silicone-insulated lead wires ensures durability and constant performance over time. The gold-plated corrosion resistant brass connection terminals with silicone cap protect the lead wire junction point.
Specifications
| Size mm (in.) | 250 (10) |
| Power Handling – Peak W | 500 |
| Power Handling – Continuous W | 250 |
| Impedance Ω | 2 |
| Sensitivity dB SPL | 88.5 |
| Voice coil Ø mm (in.) | 50 (2) |
| Xmax mm | 12.3 |
| X-mech mm (in.) | ±16.3 (0.64) |
| Re Ω | 2.1 |
| Fs Hz | 43 |
| Vas l | 30,46 |
| Qts | 0.6 |
| Qes | 0.63 |
| Qms | 12.3 |
| Spl dB | 88.5 |
Physical Specifications
| A | 277 mm | 10.91 in. |
| B | 230 mm | 9.06 in. |
| C | 191 mm | 7.52 in. |
| D | 145 mm | 5.71 in. |
| F | 46 mm | 1.81 in. |
Frequency Response
