Description
JL Audio XDM800/8 8-Channel Class D Marine and Car Amplifier + x2 Pairs of JL Audio M6-880X-S-GMTI-I 8.8″ Marine Speakers with Gunmetal Gray Grilles and LEDs + MLC-RW Marine Accessory Bundle.
Amp Highlights
8-Channel Class D Full-Range Car/Marine Amplifier, 100 W x 8 @ 2 Ω / 75 W x 8 @ 4 Ω – 14.4V
The ultra-versatile XDM800/8 delivers eight channels of crystal-clear, full-range power and is capable of delivering a whopping 100 watts to each of its channels @ 2 ohms (14.4V, 1% THD). The technology that makes this much power possible in such a compact chassis is our advanced NexD™ high-speed switching design, which permits full bandwidth Class D operation with extremely low distortion and remarkable efficiency.
Suitable for car or boat installations, the XDM800/8 is built with marine-grade materials and features an exclusive, dual-mode input filter for noise-free performance in boats or cars. Automatic turn-on capability (via signal sensing or DC-offset sensing) is also onboard for easy factory system upgrades.
The XDM800/8 includes a 12 dB / octave filter for each channel bank, which can be configured as a low-pass or high-pass filter, and offers continuously variable cutoff frequency selection from 50-500 Hz. With the addition of an optional HD-RLC or MHD-RLC (water-resistant) remote level controller (each sold separately), you have the ability to adjust the level of two, four, or all eight amplifier channels directly from the driver’s seat or cockpit.
Here are a few examples of how the XDM800/8 can be used:
- Eight-channel Satellite Amp: drive four pairs of speakers with 75 W x 8
- Big Four-Channel Satellite Amp: bridge to produce 200W x 4 @ 4Ω
- Six-Channel System Amp: drive front and rear satellites with 75 W x 4 @ 4Ω, plus two 4Ω subwoofers with 200 W each
- Staggered Six-Channel Satellite Amp: drive front speakers with 200 W x 2 @ 4Ω, plus four 4Ω speakers with 75 W each
- Staggered Five-Channel Satellite Amp: drive three front speakers with 200 W @ 4Ω + rear speakers with 75 W x 2
- Four-Channel System Amp: drive left and right speakers with 200W x 2 @ 4Ω, plus two 4Ω subwoofers with 200W each
Finished in a sleek, black powder-coat, all controls are protected beneath a gasketed, removable top cover for easy access.
Amp Specifications
Rated Continuous (RMS) Power @ 14.4 V
| @ 4 Ω | 75 W RMS x 8 |
| @ 2 Ω | 100 W RMS x 8 |
| Bridged @ 4Ω | 200 W RMS x 4 |
Rated Continuous (RMS) Power @ 12.5 V
| @ 4 Ω | 60 W RMS x 8 |
| @ 2 Ω | 90 W RMS x 8 |
| Bridged @ 4Ω | 180 W RMS x 4 |
General Specifications
| Frequency Response | 12 Hz – 22 kHz (+0, -1dB) |
| S/N Ratio, referred to highest rated power | >104 dB below rated power (A-weighted, 20 Hz – 20 kHz noise bandwidth) |
| S/N Ratio, referred to 1 W | >84 dB (A-weighted, 20 Hz – 20 kHz noise bandwidth) |
| Damping Factor @ 4 Ω | >150 / 50 Hz |
| Damping Factor @ 2 Ω | >75 / 50 Hz |
| THD+N @ Rated Power | <1% @ 2 Ω per Ch. |
| Input Voltage Range @ RCA Inputs | 200 mV – 4 V RMS |
| Min.Copper Power / Ground Wire Gauge | 4 AWG wire |
| Fuse Rating | 80 A (AFS, AGU or MaxiFuse™) |
Signal Processing
| Filter Mode(s) | Low-Pass or High-Pass |
| Filter Slope(s) | 12 dB/octave |
| Filter Frequency Range | 50 Hz – 500 Hz |
| Detented, Calibrated Filter Freq. Potentiometers | Yes |
| Filter Defeat Function | Yes |
| Remote Level Control | Optional HD-RLC or MHD-RLC (water-resistant) |
| Remote Level Modes | 2 or 4 or All Channels |
| Channel Input Mode Switch | Yes (2/4/6/8 ch.) |
| Pass-Through Preamp Output | None |
| Source Channel Selection for PreOuts | N/A |
Physical Specifications
| Height (H) | 2.05 in / 52 mm |
| Width (W) | 14.73 in / 374 mm |
| Depth (D) | 7.09 in / 180 mm |
Speaker Highlights

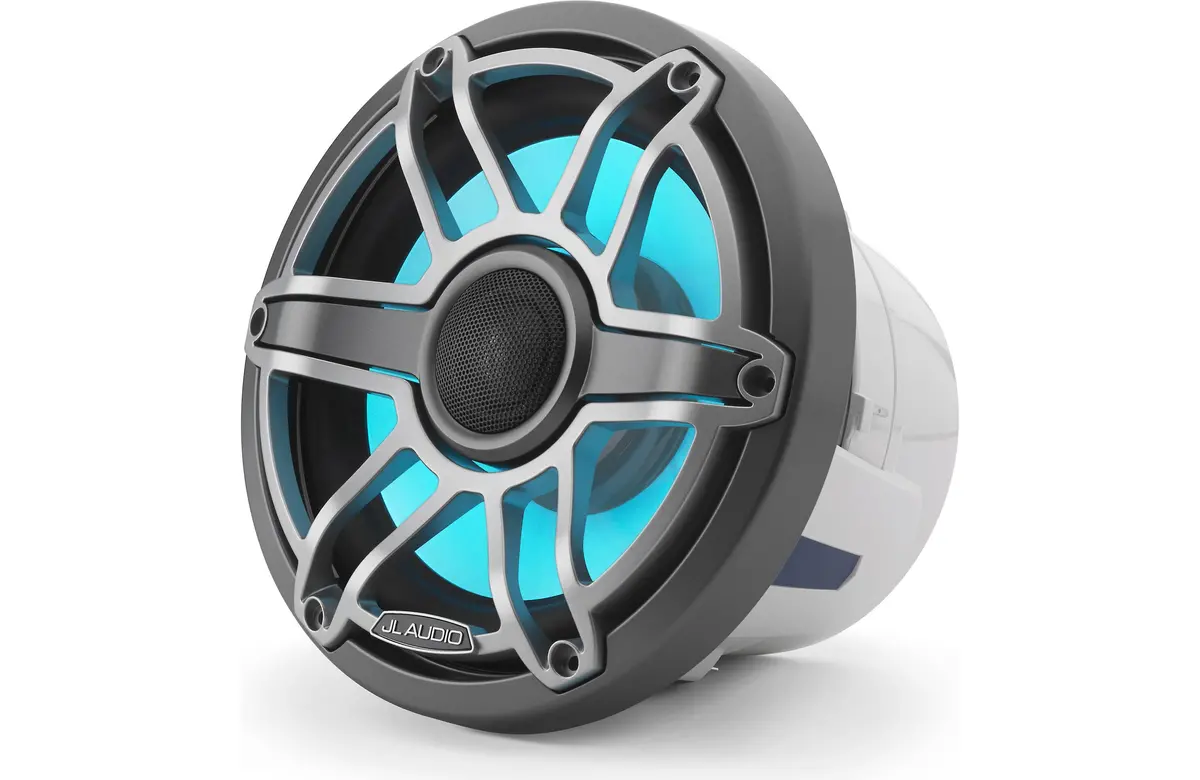

M6 8.8-inch Marine Coaxial Speakers with Transflective™ LED Lighting (125 W, 4 Ω) – Gunmetal Trim Ring, Titanium Sport Grille
The same principle that makes our 7.7-inch marine speakers dominate over conventional 6.5-inch designs is delivered in a more powerful dose in our M6-880X 8.8-inch coaxials, with the added visual impact of our patent-pending, Transflective™ RGB LED lighting.
These 8.8-inch diameter monsters offer significant performance advantages over our 7.7 inch models, and a huge advantage over conventional 6.5 inch marine coaxials. Thanks to 36% more cone area and almost double the excursion capability, the M6-880X’s are capable of +6 dB greater low frequency output than our M6-770X 7.7-inch coaxial systems! The bass is so impressive that the M6-880X can be used without a subwoofer while still packing a very serious low-frequency punch. Used with a subwoofer, they offer vastly better dynamics and mid-bass impact than smaller speakers, making them the best choice when ultimate performance is desired.
To make sure that the high-frequencies sound just as good as the bass, our engineers have designed an oversized, 1.25-inch, silk dome tweeter for this model. This new tweeter plays louder, cleaner and extends lower in frequency to better mate with the 8.8-inch woofer. A multi-order, true 2-way passive crossover is concealed within the woofer chassis, shielded from vibration and corrosion. Also included, is an automatic tweeter protection circuit to minimize the possibility of tweeter failure.
Although M6-880X Coaxial Systems can be used with as little as 50 W per channel, but for best audio performance we recommend amplifiers capable of between 50-250 W of continuous power per channel. The patent-pending Transflective™ RGB LED technology emits a smooth lighting effect through the woofer cone, with a choice of several lighting colors. Add an optional RGB controller to create thousands of color variations. Professional installation is strongly recommended.
Sold as a pair.
Speaker General Specifications
| Continuous Power Handling (RMS) | 125 W |
| Recommended Amplifier Power (RMS) | 50 – 250 W / Ch. |
| System Efficiency | 90.5 dB @ 1 W / 1 m |
| System Nominal Impedance | 4 Ω |
| System Frequency Response | 38 Hz – 20 KHz ± 3 dB |
Speaker Physical Specifications
| Frame Outer Diameter (A) | 8.80 in / 224 mm |
| Bolt Hole Circle Diameter (B) | 7.97 in / 202 mm |
| Frontal Grille Protrusion* (C) | 1.45 in / 37 mm |
| Mounting Hole Diameter (D) | 7.375 in / 187 mm |
| Mounting Depth (E) | 5.00 in / 127 mm |
| *Frontal grille protrusion measured from mounting surface | |
MLC-RW
The MLC-RW is an advanced controller designed for managing RGB LED lighting circuits. Outfitted with PWM technology and high-capacity circuitry, the MLC-RW produces up to 30 amps (400 watts) of continuous output to power modern, multi-LED networks.
All LED functions are easily controlled with the included rotary encoder or using your handheld device via built-in WiFi connection.
