Description
System Tuning DSP with Digital Optical (Toslink) Input / 8-ch. Stereo RCA Outputs / 1 Digital Optical (Toslink) Output

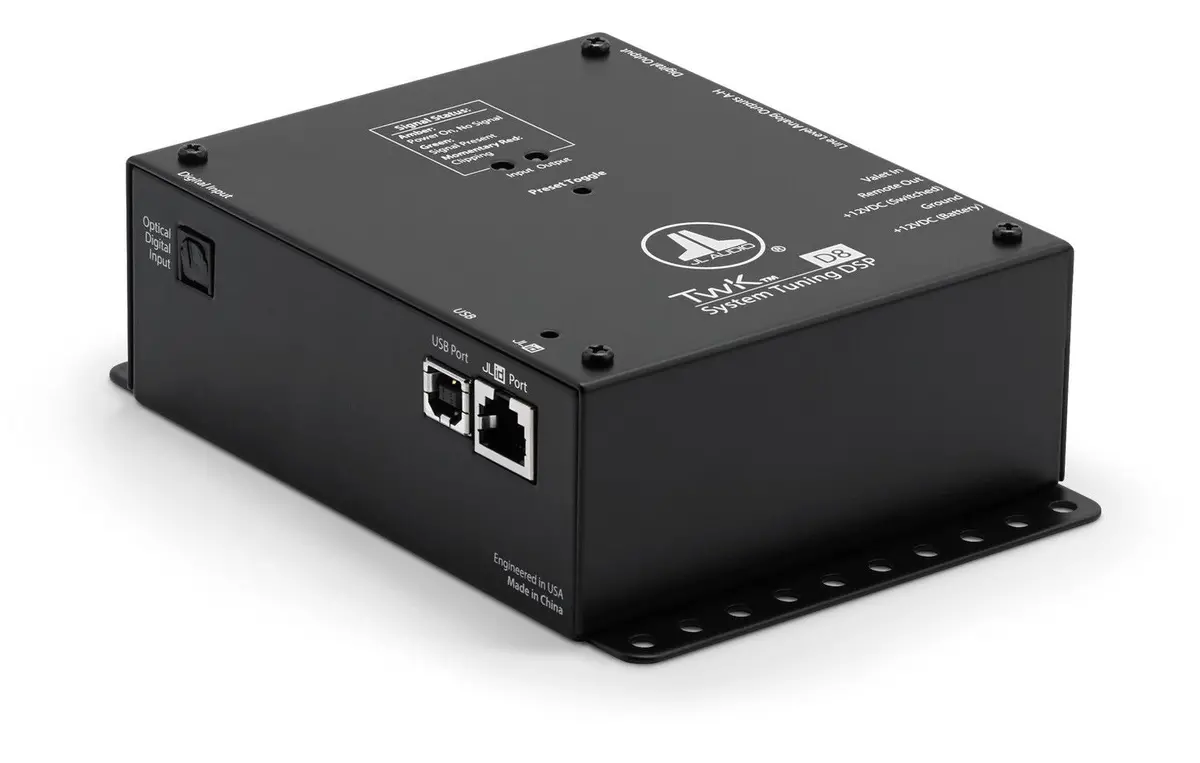

The TwK™ D8 is a state-of-the-art digital signal processor engineered to deliver world-class system tuning capabilities, in an easy-to-use format.
Equipped with an advanced 24-bit DSP processor, the TwK™ D8 is equipped with a digital optical (Toslink) input and connects directly to our FiX™ 82 OEM Integration DSP, or any 2-channel digital (S/PDIF) output, to maintain an all-digital signal path. Functionally identical to the TwK™ 88, the TwK™ D8 is also equipped with flexible input/output options, 80 total bands of equalization and powerful mixing tools. The included DRC-200 Digital Remote Controller lets you add dual configurable level controls, preset toggle, plus LED status reporting, all from the driver’s seat. Connect your TwK™ via PC to the companion TüN™ Software Interface to take advantage these powerful features:
Highlights
- All-digital, optical (Toslink) input connects directly to any digital (S/PDIF) output.
- Flexible setup features:
- Individual level trim, linkable for tuning
- Individual polarity controls, linkable for tuning
- Powerful input mixing tools
- 8 Powerful 10-band equalizers with flexible assignment capabilities:
- 10-band graphic full octave EQ
- 10-band parametric EQ
- Configurable EQ assignment delivers simple to complex tuning options:
- Individual EQs may be assigned to each output
- Multiple outputs may be combined and assigned to a single EQ
- 8 analog, line-level RCA output jacks (4V RMS), each with a full-featured tuning set:
- Fully variable, high-pass and low-pass filters with selectable slopes from 6 dB/octave to 48 dB/octave (in 6 dB/octave increments)
- Configurable delay settings, with separate entries for speaker distance plus offset control; expressed in time or distance units and fully linkable with other channels
- Polarity control, fully linkable with other channels
- Comprehensive level controls, fully linkable with other channels
- Optical (Toslink) jack provides a pass-through digital audio (S/PDIF) output from assignable input channels, with no signal processing applied.
- Provides a dedicated remote turn-on voltage output for activating aftermarket audio equipment.
- JLid™ Port allows connection of the included DRC-200 Digital Remote Controller to add dual configurable level controls, plus LED status reporting from the driver’s seat.
Specifications
| Power Supply Type |
Regulated DC-DC SMPS |
| Input Operating Voltage |
10 – 16 VDC |
| Standby Current Draw |
<1.5 mA |
| Operating Current Draw |
0.7 A |
| Recommended Fuse Value |
1 A |
| Input Channels |
Single Digital Input |
| Input Type |
Differential-Balanced |
| Input Voltage Range |
250 mV – 7.1 V RMS |
| Minimum Input Voltage |
10 mV RMS |
| Input Level Setting |
N/A |
| Output Channels |
Eight |
| Analog Output |
Unbalanced, stereo RCA jacks |
| Digital Output |
Optical (Toslink) output (S/PDIF) |
| Output Impedance |
450 Ω |
| S/N Ratio |
96 dB (A-Weighted, referred to 4V RMS Output) |
| THD+N @ Rated Output |
0.02% (20 Hz – 20 kHz) |
Signal Processing
| Audio Resolution |
24 bit / 48 kHz |
| Number of EQ Bands |
10 x 8 Channels |
| Remote Level Control |
Included (DRC-200) |
| Remote Level Functions |
Master Volume Control + Trim; Master Volume Control + Fader; Zone Control, LED Status Reporting |
Dimensions
| Height (H) |
1.85 in / 47 mm |
| Width (W) |
4.29 in / 109 mm |
| Depth (D) |
6.14 in / 156 mm |
| Net Weight |
2.58 lbs / 1.17 kg |
