Description
System Tuning DSP 8-ch. Analog + Digital INPUTS / 8-ch. Analog OUTPUTS
System Tuning DSP with 8-ch. Stereo RCA Inputs / 2 Digital (Optical/Toslink and Coaxial) Inputs / 8-ch. Stereo RCA Outputs / 1 Digital Optical (Toslink) Output

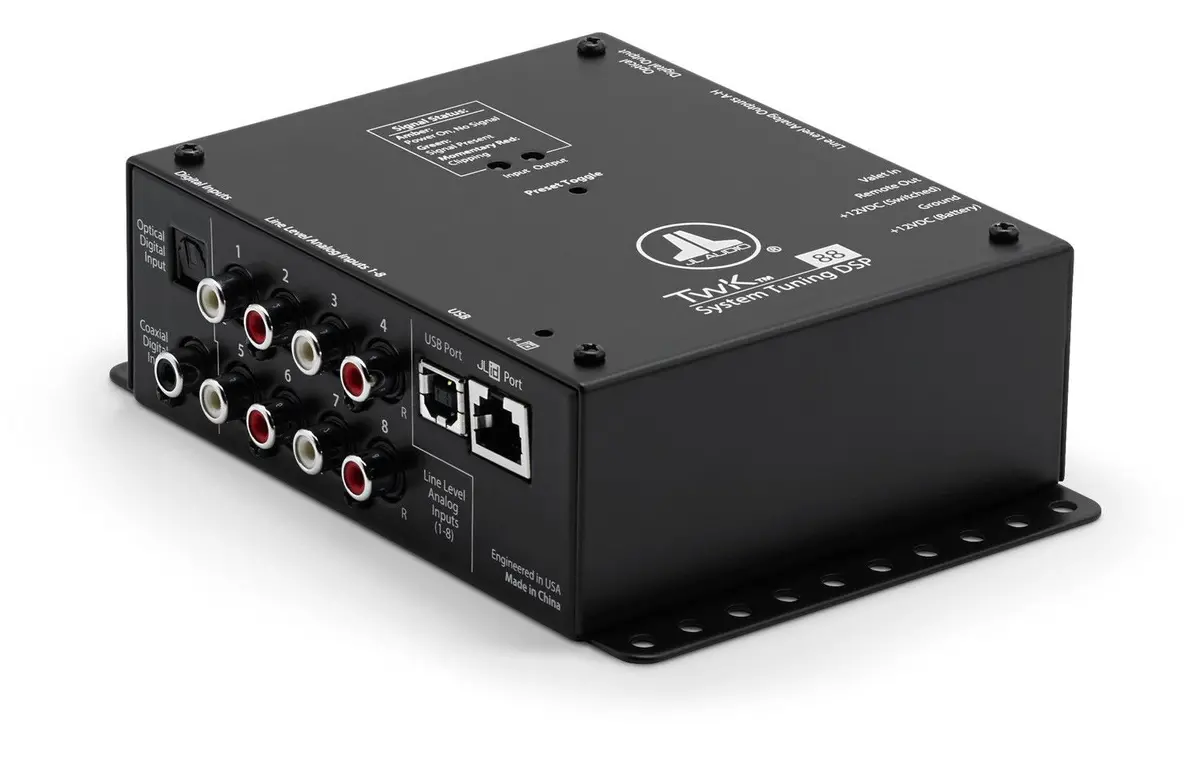

The TwK™ 88 is a state-of-the-art digital signal processor engineered to deliver world-class system tuning capabilities, in an easy-to-use format. Equipped with an advanced 24-bit DSP processor, the TwK™ 88 includes flexible input/output options, 80 total bands of equalization and powerful mixing tools. The included DRC-200 Digital Remote Controller lets you add dual configurable level controls, preset toggle, plus LED status reporting, all from the driver’s seat.
Connect your TwK™ via PC to the companion TüN™ Software Interface to take advantage these powerful features:
- Flexible input design: 8 Differential-balanced, line-level input jacks (RCA) accept most line-level signals up to 7.1V (RMS). Separate optical (Toslink) and coaxial digital inputs connect to any digital (S/PDIF) output.
- Flexible setup features: Individual level trim, linkable for tuning. Individual polarity controls, linkable for tuning.vPowerful input mixing tools
- 8 Powerful 10-band equalizers with flexible assignment capabilities:10-band graphic full octave EQ. 10-band parametric EQ
- Configurable EQ assignment delivers simple to complex tuning options: Individual EQs may be assigned to each output Multiple outputs may be combined and assigned to a single EQ
- 8 analog, line-level RCA output jacks (4V RMS), each with a full-featured tuning set: Fully variable, high-pass and low-pass filters with selectable slopes from 6 dB/octave to 48 dB/octave (in 6 dB/octave increments) Configurable delay settings, with separate entries for speaker distance plus offset control; expressed in time or distance units and fully linkable with other channels Polarity control, fully linkable with other channels Comprehensive level controls, fully linkable with other channels
- Optical (Toslink) jack provides a pass-through digital audio (S/PDIF) output from assignable input channels, with no signal processing applied.
- Provides a dedicated remote turn-on voltage output for activating aftermarket audio equipment.
- JLid™ Port allows connection of the included DRC-200 Digital Remote Controller to add dual configurable level controls, plus LED status reporting from the driver’s seat.
General Specifications
| Power Supply Type | Regulated DC-DC SMPS |
| Input Operating Voltage | 10 – 16 VDC |
| Standby Current Draw | 1.5 mA |
| Operating Current Draw | 0.7 A |
| Recommended Fuse Value | 1 A |
| Input Channels | Eight |
| Input Type | Line-level, Differential-Balanced |
| Input Voltage Range | 250 mV – 7.1 V RMS |
| Minimum Input Voltage | 10 mV RMS |
| Input Level Setting | Eleven discrete selections from 250 mV – 7.1V RMS |
| Output Channels | Eight |
| Analog Output | Unbalanced, stereo RCA jacks |
| Digital Output | Optical (Toslink) output (S/PDIF) |
| Output Impedance | 450 Ω |
| S/N Ratio | 98 dB (A-Weighted, referred to 4V RMS Output) |
| THD+N @ Rated Output | 0.02% (20 Hz – 20 kHz) |
Signal Processing
| Audio Resolution | 24 bit / 48 kHz |
| Number of EQ Bands | 10 x 8 Channels |
| Remote Level Control | Included (DRC-200) |
| Remote Level Functions | Master Volume Control + Trim; Master Volume Control + Fader; Zone Control, LED Status Reporting |
Physical Specifications
| Height (H) | 1.85 in / 47 mm |
| Width (W) | 4.29 in / 109 mm |
| Depth (D) | 6.14 in / 156 mm |
| Net Weight | 2.58 lb / 1.17 kg |
