Description

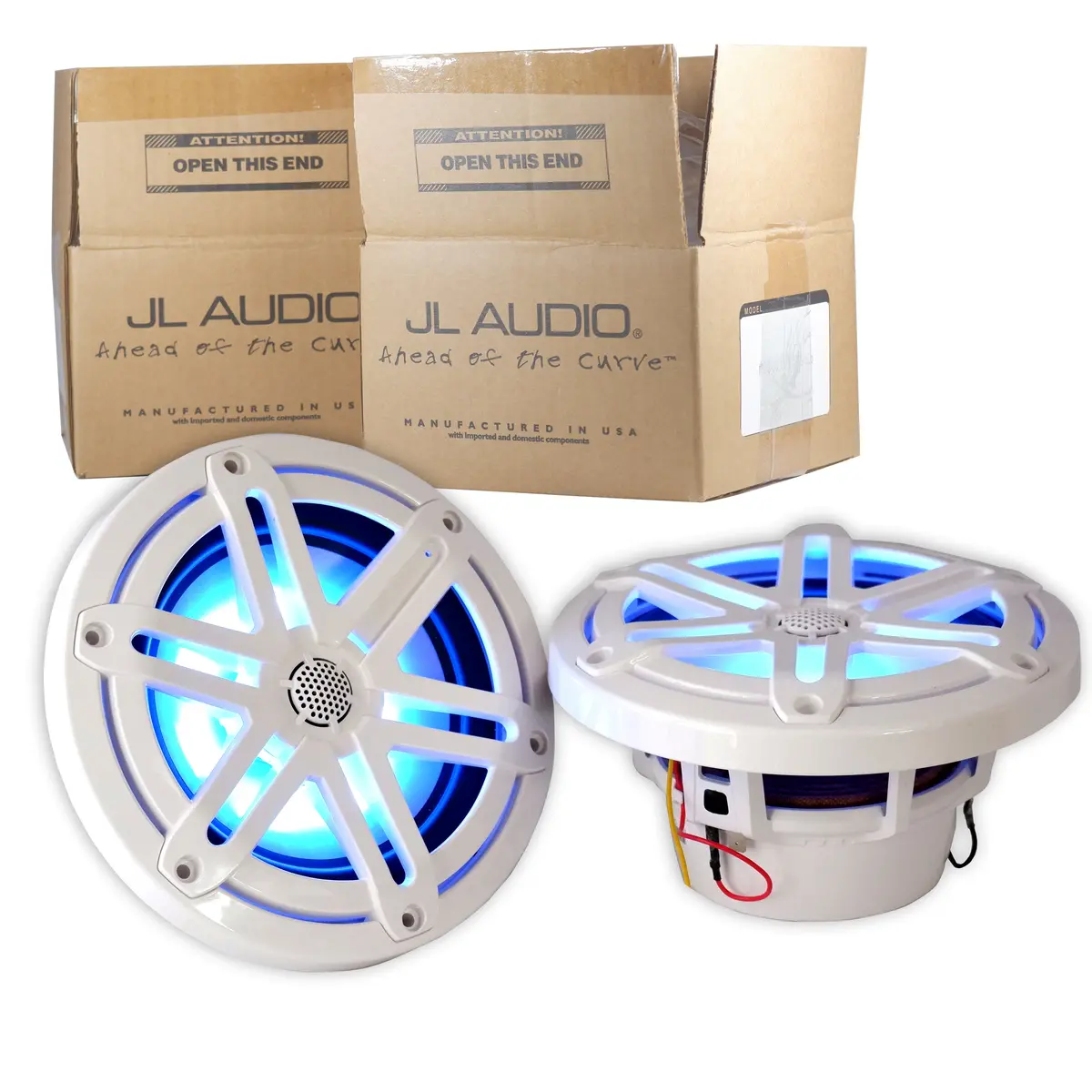

New! Available now! Bulk Packaging with Blue Only LEDs (MCS-65CCX3-4-WLD-B) is equivalent to MX650-CCX-SG-WLD-B

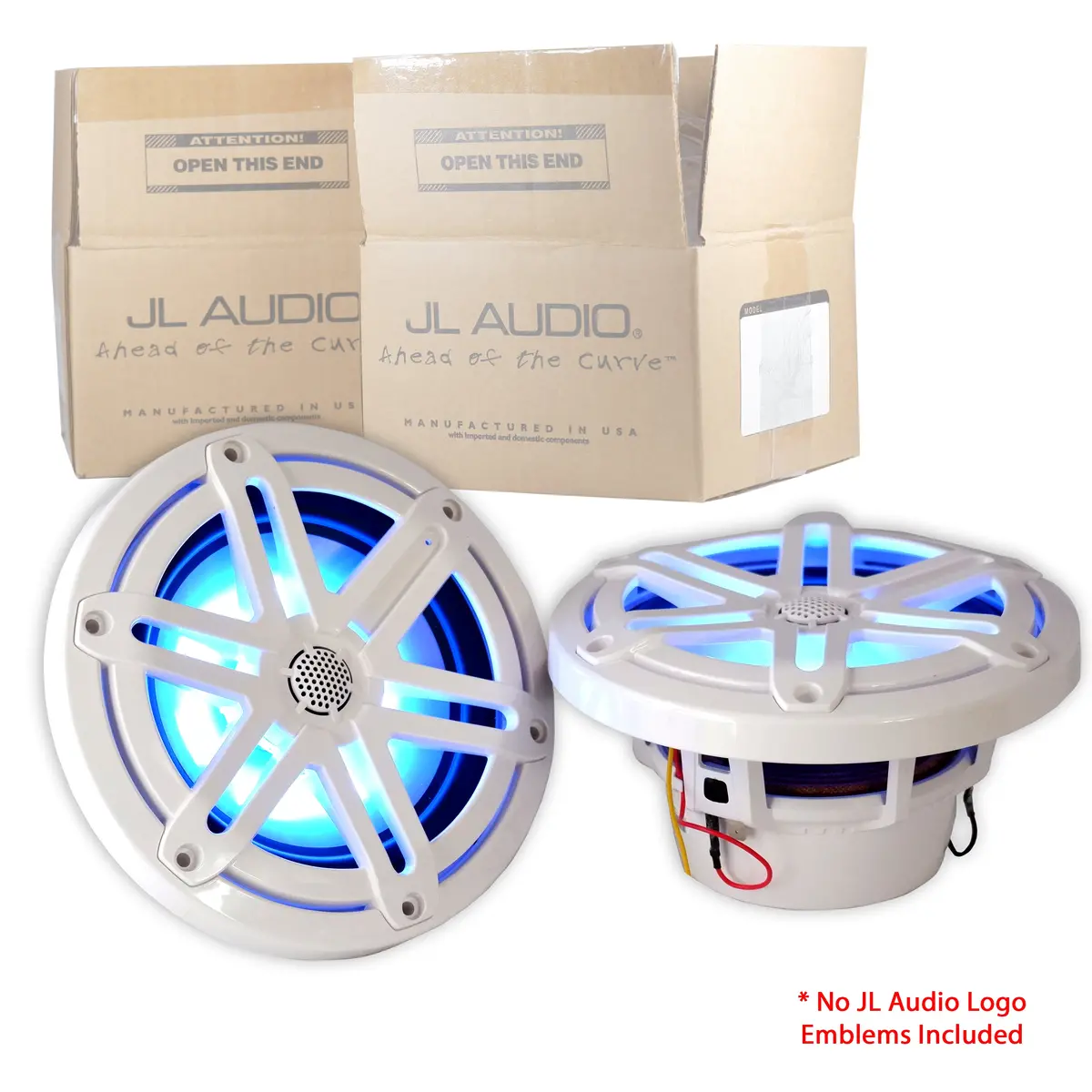

Note: The MCS-65CCX3-4-WLD-B does not come in retail packaging and does not come with JL Audio Logos or screws.

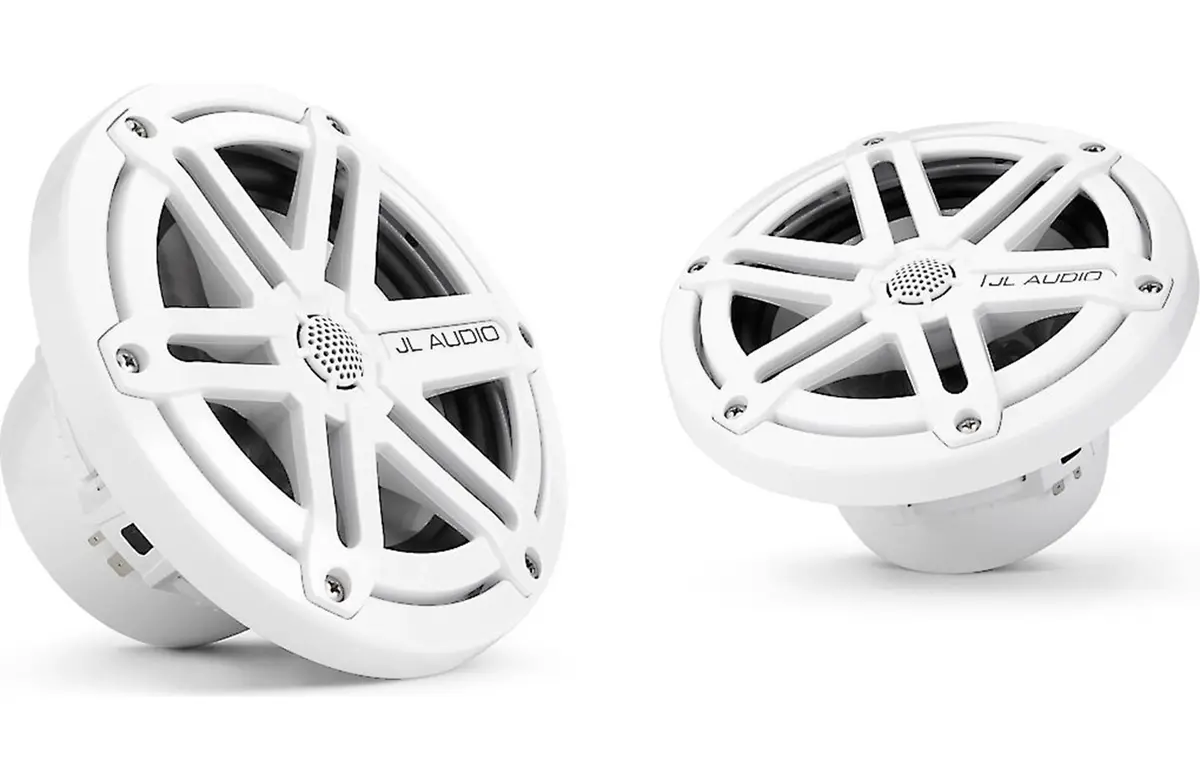

MX-Series Standard Flange 6.5-inch Marine Cockpit Coaxial System for Infinite-Baffle Use (60 W, 4 Ω) – White Classic Grille, with Blue LEDs
The MCS-65CCX3-4-WLD-B is the same speaker system in generic bulk packaging. The MCS-65CCX3-4-WLD-B is the OEM equivalent of the MX650-CCX-SG-WLD-B speaker system. JL Audio’s overstock of the MCS-65CCX3-4-WLD-B speakers that are typically sold to boat builders are now available to our customers for direct purchase at a lower price! These have only Blue LEDS.
Sold as a pair.
Purpose-engineered and built for real marine duty, MX-Series coaxial systems deliver excellent performance at a more affordable price than our maximum-performance M-Series models.
The MX650-CCX 6.5-inch coaxial speaker is designed around the standard marine 6.5-inch speaker format and features a wide mounting flange with a six hole mounting pattern.
The long excursion woofer design and excellent power handling make your music come through loud and clear at speed, or at anchor. The woofer design is optimized to operate with a large volume of air behind it (at least 2 cu. ft. / 57 l). Operating this coaxial system in less space will compromise its low frequency performance.
A 0.75-inch pure silk dome tweeter, specially treated to withstand the marine environment, handles the high-frequency duties. Silk has been chosen for its lightness, excellent damping properties and smooth response characteristics.
Integrated into the Sport Grille’s frame, the internal LED lighting assembly was meticulously designed to uniformly illuminate the woofer’s cone area with a lively blue glow, adding a dramatic visual experience to your high seas journey.
Although MX650-CCX Coaxial Systems can be used with as little as 20 W per channel, for best audio performance we recommend amplifiers capable of between 75-100 W of continuous power per channel.
Specifications
|
Continuous Power Handling (RMS) |
60 W |
|
Peak Music Power |
225 W |
|
Recommended Amplifier Power (RMS) |
20 – 125 W / Ch. |
|
System Efficiency |
89.5 dB @ 1 W / 1 m |
|
System Nominal Impedance |
4 Ω |
|
System Frequency Response |
55 Hz – 25 KHz ± 3 dB |

|
Frame Outer Diameter (A) |
6.90 in / 175 mm |
|
Bolt Hole Circle Diameter (B) |
6.125 in / 155.5 mm |
|
Motor Outer Diameter (C) |
3.85 in / 98 mm |
|
Frontal Grille Protrusion* (D) |
0.973 in / 25 mm |
|
Mounting Hole Diameter (E) |
5.00 – 5.25 in / 127 – 133 mm |
|
Mounting Depth (F) |
2.74 in / 69.5 m |
