Clarion M505B1 Marine Audio System – Receiver + Pair of 6.5-Inch Marine Speakers

Description

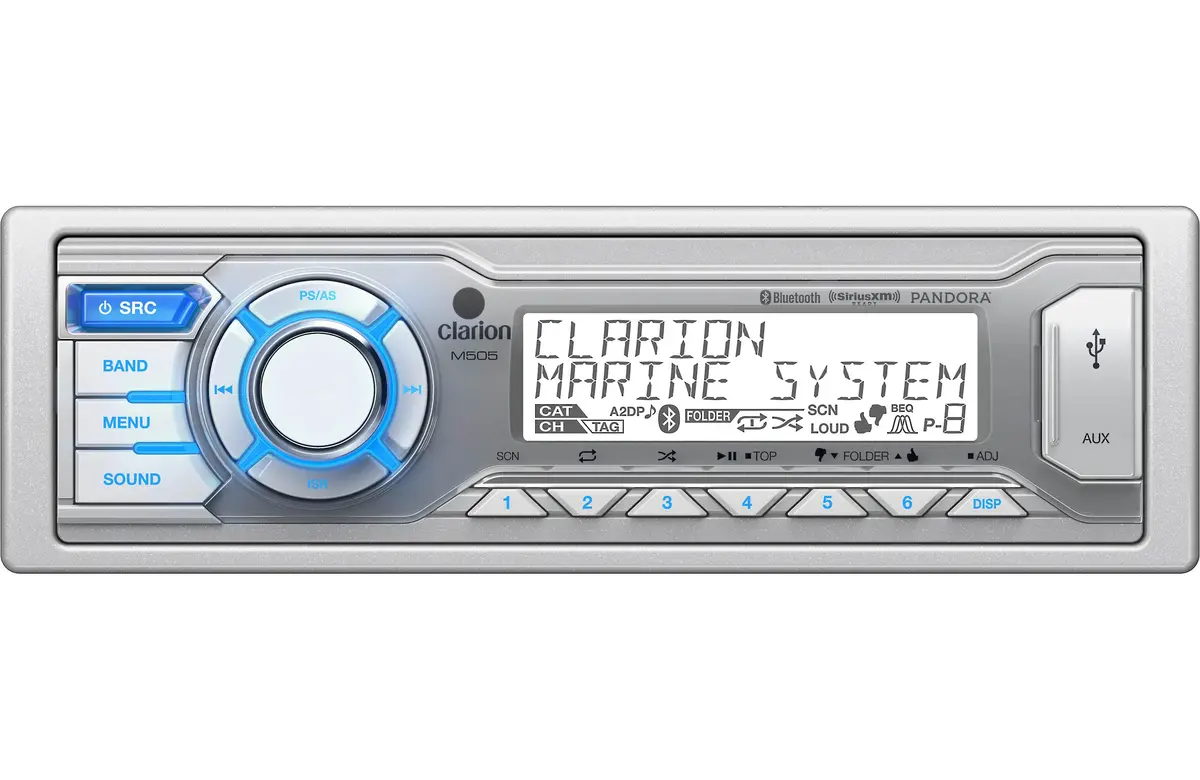

Receiver Highlights

• Marine digital media receiver with built-in amplifier (20 watts RMS/50 peak x 4 channels)
• No internal CD player — plays MP3 and WMA music files from your iPod and other external sources
• Built-in Bluetooth® for music streaming
• Bluetooth aptX for superior sound quality from Android phones
• Enjoy Pandora internet radio using your iPhone®
• 2-line black-on-white LCD display
• Marine-ready features:
  • Specially sealed against the elements for use in the marine environment
  • Conformal-coated PCB circuit board
  • Covers for front USB and AUX inputs
  • Resistant to salt, fog and UV exposure
• 3-band equalizer with 11 preset sound curves
• Fully-adjustable fader and control subwoofer controls
• Compatible with SiriusXM satellite radio tuner
• Built-in iPod control
• Inputs: front USB and AUX inputs
• Outputs: 6-channel preamp outputs (4-volt front, rear, sub)
• Wireless remote control

Speaker Highlights

• 6-1/2″ 2-way marine speakers
• Injection-molded, mica-filled polypropylene woofers with synthetic rubber surrounds
• 1-1/4″ PEI cone tweeters
• Handles up to 50 watts RMS (100 watts peak power)
• UV- and corrosion-resistant ASA plastic basket and grille
• Water-resistant componentry
• Cutout size: 5.678″ (please measure your speaker openings before ordering)
• Warranty: 1 year
• Specifications:
  • Frequency Response: 67 to 20,000 Hz
  • Power Handling: 2 to 40 watts (RMS) / 100 watts (Peak)
  • SPL Rating: 86 dB
  • Impedance: 3 ohm
• Dimensions:
  • Cutout Diameter: 5.678″
  • Mounting Depth: 2.315″
  • Mounting Height (without Grille): 0.992″
  • Frame Diameter (without Grille): 6.588″
  • Bolt Pattern (4 Holes): 4.345″ (perimeter) x 6.125″ (diagonal)
  • Grille Size: 6.955″ (diameter ) x 0.96″ (height)

Marine Features

Marine Tested: The Clarion M505 Marine digital media receiver has been engineered and tested for use in the harsh marine environment. The M505 meets ASTM B117 and ASTM D4329 guidelines ensuring the receiver’s resistant to salt, fog and UV exposure. The receiver features a drip shield chassis to keep water from dripping onto the unit’s internal circuits. In addition, the head unit’s PCB and microprocessor are conformal coated to protect them from corrosion.

High Visibility LCD: The two-line, 13-digit, high visibility LCD (with white background and black characters) on the M505 allows numbers and characters to be displayed clearly in almost any lighting condition.

IR Remote: The Clarion M505 comes supplied with an IR remote control for wireless operation of the digital media receiver. The remote provides music playback & search controls. The remote operates off of a single CR2025 Lithium cell 3-volt battery.
