Description

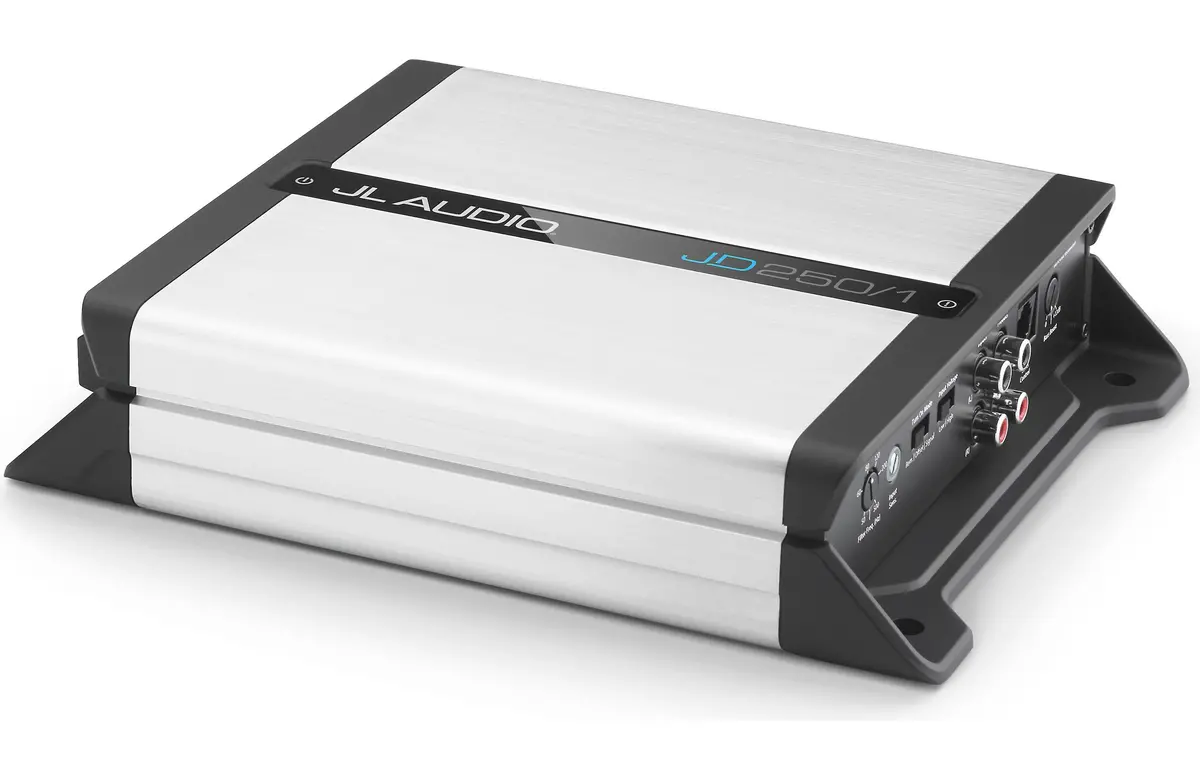

JL Audio JD250/1 Class D Amplifier and JL Audio 10W0v3-4 10″ Subwoofer Bass Promo Package
Amp Highlights
Designed to produce a healthy 250 watts into 2 ohms (14.4V, 1% THD), the JD250/1 amplifier is a great solution for powering subwoofers in a cost-conscious system. Our proprietary NexD™ switching technology delivers large amounts of real-world power output with excellent efficiency and ultra-low distortion.
The JD250/1 is also equipped with an onboard LED-clipping indicator ring, surrounding the input sensitivity control. This useful feature lets you easily set your amplifier’s input sensitivity, quickly and accurately, without special equipment. With the addition of an RBC-1 remote level control (sold separately), you can control the subwoofer level from the driver’s seat.
Amp Features
Rated Continuous (RMS) Power @ 14.4 V
| @ 4 Ω | 150 W RMS x 1 |
| @ 3 Ω | 200W RMS x 1 |
| @ 2 Ω | 250 W RMS x 1 |
| @ 1.5 Ω | N/A |
Rated Continuous (RMS) Power @ 12.5 V
| @ 4 Ω | 115 W RMS x 1 |
| @ 3 Ω | 150 W RMS x 1 |
| @ 2 Ω | 200 W RMS x 1 |
| @ 1.5 Ω | N/A |
Amp Specifications
| Frequency Response | 7 Hz – 500 Hz (+0, -1dB) |
| S/N Ratio, referred to highest rated power | >80 dB below rated power (A-weighted, 20 Hz – 20 kHz noise bandwidth) |
| S/N Ratio, referred to 1 W | >60 dB (A-weighted, 20 Hz – 20 kHz noise bandwidth) |
| Damping Factor @ 4 Ω | >1000 / 50 Hz |
| Damping Factor @ 2 Ω | >500 / 50 Hz |
| THD+N @ Rated Power | <1% @ 2 Ω per Ch. |
| Input Voltage Range @ RCA Inputs | Switchable from 200 mV – 2 V RMS (Low) to 800 mV – 8 V RMS (High) |
| Min.Copper Power / Ground Wire Gauge | 8 AWG wire |
| Fuse Rating | 30 A (AFS, AGU or MaxiFuse™) |
Amp Signal Processing
| Filter Mode(s) | Low-Pass only |
| Filter Slope(s) | 12 dB/octave |
| Filter Frequency Range | 50 Hz – 500 Hz |
| Detented, Calibrated Filter Freq. Potentiometer | No |
| Filter Defeat Function | No |
| Infrasonic Filter | No |
| Bass Boost EQ | Yes |
| Output Polarity Switch | No |
| Remote Subwoofer Level Control | Optional (RBC-1) |
| Remote Bass EQ Boost Control | No |
| Pass-Through Preamp Output | Buffered |
Subwoofer General Specifications
| Continuous Power Handling (RMS) | 300 W |
| Recommended Amplifier Power (RMS) | 75 – 300 W |
| Nominal Impedance (Znom) | 4 Ω |
Subwoofer Physical Specifications
| Nominal Diameter | 10.0 in / 250 mm |
| Overall Diameter (A) | 10.52 in / 267 mm |
| Mounting Hole Diameter (B) | 9.0625 in / 230 mm |
| Bolt Hole Circle Diameter (C) | 9.7 in / 246.5 mm |
| Motor Outer Diameter (D) | 5.05 in / 128 mm |
| Mounting Depth (E) | 4.90 in / 124 mm |
| Driver Displacement | 0.034 cu ft / 0.96 L |
| Net Weight | 7.50 lb / 3.40 kg |
Subwoofer Parameters
| Free Air Resonance (Fs) | 32.09 Hz |
| Electrical “Q” (Qes) | 0.64 |
| Mechanical “Q” (Qms) | 10.752 |
| Total Speaker “Q” (Qts) | 0.604 |
| Equivalent Compliance (Vas) | 1.095 cu ft / 31.01 L |
| One-Way Linear Excursion (Xmax)* | 0.45 in / 11.4 mm |
| Reference Efficiency (no) | 0.15% |
| Efficiency (1 W / 1 m)** | 84.07 dB SPL |
| Effective Piston Area (Sd) | 48.909 sq in / 0.0316 sq m |
| DC Resistance (Re) | 4.280 Ω |
