Complete* Kicker Amplifier and Subwoofer Bundles
*for factory radio compatibility, please contact us about line output converters
Kicker 48TRTP122 12″ Sealed Downward-firing Enclosed Shallow-mount + Kicker 46CXA800.1T Amplifier + Kicker 46CXARC Bass Knob + 8 Gauge Amplifier Wiring Kit + 17 feet 2-Channel RCA Cable – Amplifier and Subwoofer Bundle
Subwoofer Highlights
- Sealed downward-firing enclosure with one CompRT 12″ subwoofer and passive radiator
- 3/4″ medium-density fiberboard construction covered with carpet
- 2-ohm total impedance
- Power handling: 500 watts RMS (1000 watts peak power)
- Sensitivity: 98 dB
- Frequency response: 25-500 Hz
- Dimensions: 27.5″W x 6.125″H x 14.625″D
- Warranty: 1 year
Subwoofer Features

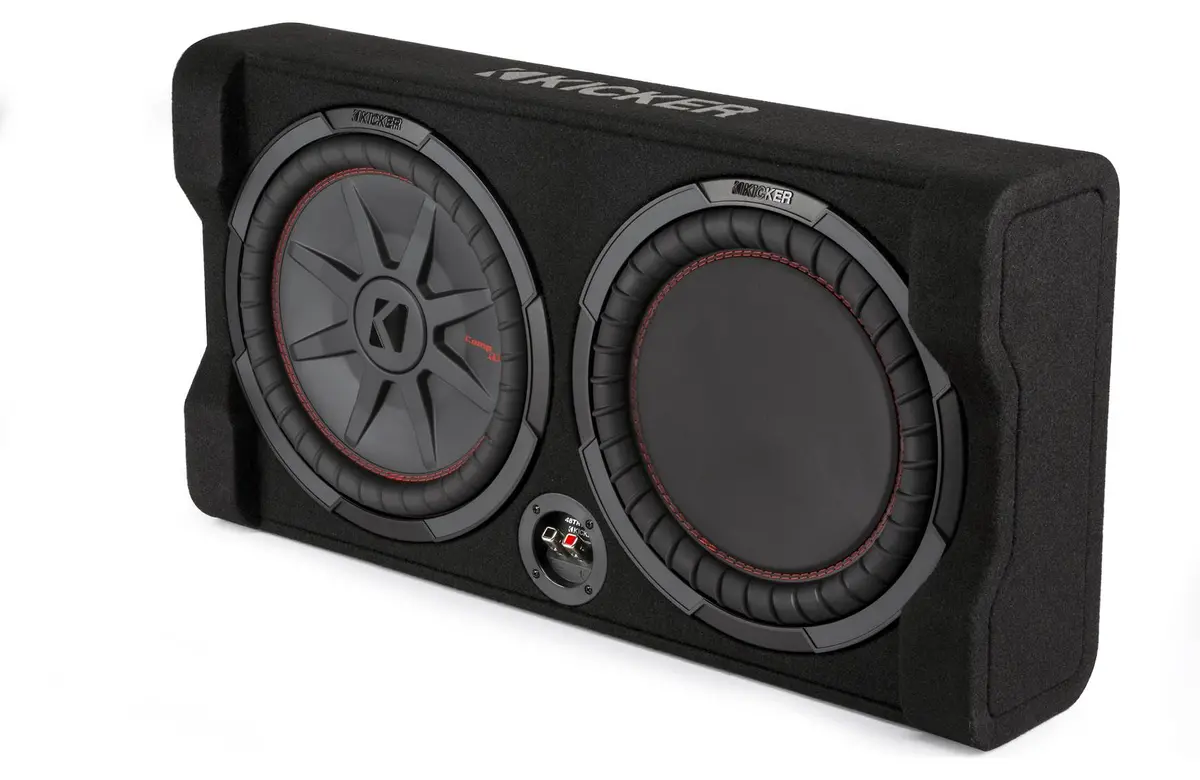

Woofer & Passive Radiator: The Kicker 48TRTP122 enclosure is loaded with one 12″ CompRT series subwoofer. The Kicker subwoofer features a polypropylene cone with a Santoprene surround. The surround and cone are attached using Kicker’s signature red double stitching, providing an outstanding bond. Along with the subwoofer, the 48TRTP122 features a 12″ Kicker reFLEX passive radiator, providing extremely low bass from a compact sealed enclosure.
Forced Air Cooling: Kicker uses their SoloKon technology to join the cone to the vented back brace, creating a single integrated unit. This forces air through the motor assembly allowing it to run 20% cooler and helping eliminate distortion.
Down-Firing Enclosure: The sealed down-firing enclosure is made of heavy-duty MDF (Medium Density Fiberboard) with extensive internal bracing, providing exceptional acoustic efficiency and deep powerful bass. The enclosure is covered in sleek black carpeting for added protection and a refined look. Its compact, down-firing form allows it to be mounted in cargo areas, or under seats.
Speaker Terminals: A single pair of spring-posts are mounted on the underside of the enclosure in a recessed terminal cup, and will accept pin connectors, single banana plugs, or bare wire up to 10 gauge.
Power: The single 2Ω CompRT subwoofer can handle 250W-500W RMS (1000W peak).
Break-in Period: Due to the complex nature of Kicker CompRT speakers, they require a break-in period in order to produce optimum low-bass response. The suspension system is very stiff out-of-the-box. Approximately two weeks of daily playing will allow the suspension to break-in and reach its optimum equilibrium. Once broken-in, the subwoofer will exhibit stronger bass performance, smoother response, and greater low-bass extension.
Subwoofer Specifications
| Woofer Size | 12″ |
| Speakers Per Box | 1 |
| Woofer Material | IMPP |
| Enclosure Type | Passive Radiator |
| Color | Black |
| Connector Type | Spring-posts |
| Frequency Response | 20-500 Hz |
| Power Range (Watts RMS) | 500 |
| Maximum Wattage | 1000 |
| Sensitivity | 98 dB |
| Impedance | 2 Ohms |
Subwoofer Measurements
| Width | 27 1/2″ |
| Height | 6 1/8″ |
| Depth | 14 5/8″ |
Amplifier Highlights
- Mono subwoofer amplifier
- 300 watts RMS x 1 at 4 ohms (600 watts RMS x 1 at 2 ohms)
- 800 watts RMS x 1 at 1 ohm
- CTA-2006 compliant
- Class D amp technology
- Frequency response: 25-200 Hz
- Variable low-pass filter (50-200 Hz, 12 dB/octave)
- Fixed subsonic filter (25 Hz, 24 dB/octave)
- Variable bass boost (0-6 dB at 40 Hz)
Amplifier Features
- Preamp inputs and outputs
- Speaker-level inputs (speaker wire to RCA adapters required)
- Optional remote bass level controller available
- 3-second delay for turn-on and turn-off
- Includes hardware for vertical mounting
- Wiring, fuse, and hardware not included with amplifier
- 4-gauge power and ground leads and an 80-amp fuse recommended
Amplifier Specifications
| Amplifier Class | D |
| Low-Pass Crossover Frequency | 50-200 Hz |
| Low-Pass Slope (dB/octave) | 12 dB/octave |
| High-Pass Crossover Frequency | N/A |
| High-Pass Slope (dB/octave) | N/A |
| Bass Boost | 0-6 dB |
| Bass Boost Frequency | 40 Hz |
| Fan Cooled | No |
| Fuse Rating | 80 |
| Speaker Level Inputs | RCA |
| Preamp Outputs | 1 pair |
46CXARC Bass Knob
Customize your bass, right from your front seat.
The CXARC is a remote bass controller, compatible with select CX and PX KICKER amplifiers equipped with a REMOTE BASS jack on its end.
8AWG Amplifier Power Kit
- True American Wire Gauge Oxygen Free Copper for High-Current Delivery
- Fine Stranding and Frosted Insulation for Superior Flexibility
- Flux Tinned for Corrosion Resistance
- Double Strength Terminal for Best Power and Reliability
- Compact Mini-ANL Fuse Block Design
This Kit Includes
- 18.5ft 8AWG Power Cable with 6ft Braided Sleeve and Ring Terminal.
- 3ft. 8AWG Ground Cable with Double Strength Terminal.
- 19ft Remote Turn-on Wire.
- (1) Mini- ANL Fuse Block.
- (1) 60A Mini-ANL Fuse.
- (1) Firewall Grommet.
- (2) 8GA Spade Terminals.
- (1) Remote Spade Terminal.
- (1) Remote Butt Connector.
- (2) Fuse Block Mounting Screws.
- (2) Self-Tapping Screws.
- (6) Cable Ties.
17 feet 2-Channel RCA Cable
- 17 ft RCA Cable.
- Coaxial construction.
- Flux Tinned OFC Wires.
- Split-tip Center Pin and Segmented Shield.
- Micro Barrel Design.
- Frosted Outer Jacket.
