Description

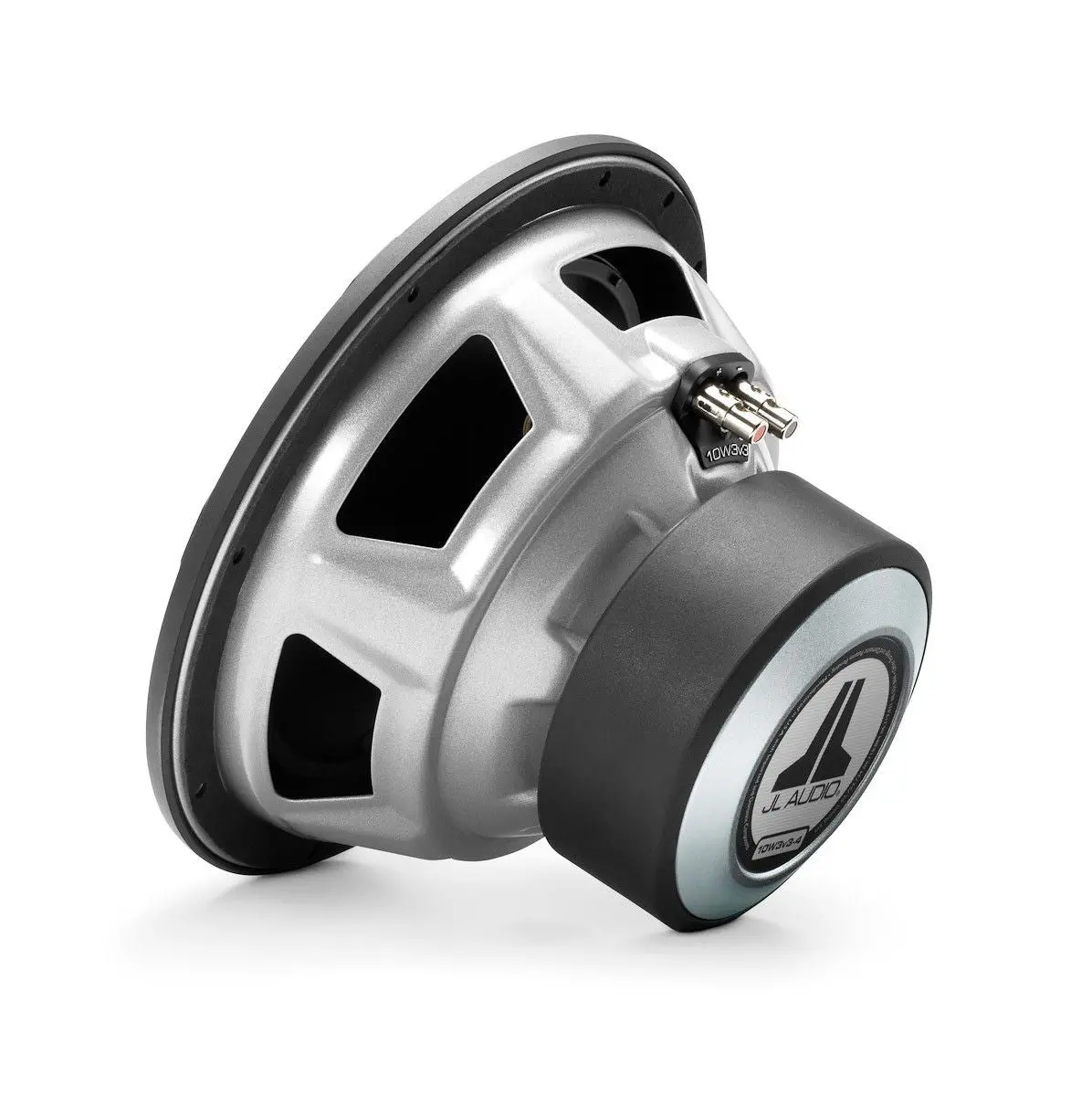

This acclaimed Subwoofer strikes an outstanding balance in power handling, enclosure requirements and excursion to deliver excellent results in medium power applications. Several exclusive JL Audio technologies and proprietary assembly techniques are applied to the 10W3v3 to enhance linearity and reliability.
The 10W3v3-2 is best used with amplifier power in the 150W – 500W range and is optimized to operate in a compact 0.625 cu. ft. (17.7 l) sealed enclosure, or a 1.25 cu. ft. (35.4 l) ported enclosure. Detailed enclosure recommendations can be found in the “Specifications” tab.
Specifications
General Specifications
| Continuous Power Handling (RMS) | 500 W |
| Recommended Amplifier Power (RMS) | 150- 500 W |
| Nominal Impedance (Znom) | 2 Ω |
Physical Specifications
| Nominal Diameter | 10.0 in / 250 mm |
| Overall Diameter (A) | 10.5 in / 267 mm |
| Mounting Hole Diameter (B) | 9.0625 in / 230 mm |
| Bolt Hole Circle Diameter (C) | 9.7 in / 246.5 mm |
| Motor Outer Diameter (D) | 5.25 in / 133 mm |
| Mounting Depth (E) | 5.93 in / 151 mm |
| Driver Displacement | 0.049 cu ft / 1.39 L |
| Net Weight | 12.25 lb / 5.56 kg |
Parameters
| Free Air Resonance (Fs) | 32.97 Hz |
| Electrical “Q” (Qes) | 0.533 |
| Mechanical “Q” (Qms) | 7.027 |
| Total Speaker “Q” (Qts) | 0.495 |
| Equivalent Compliance (Vas) | 1.136 cu ft / 32.17 L |
| One-Way Linear Excursion (Xmax)* | 0.550 in / 14.0 mm |
| Reference Efficiency (no) | 0.21% |
| Efficiency (1 W / 1 m)** | 85.37 dB SPL |
| Effective Piston Area (Sd) | 53.475 sq in / 0.0345 sq m |
| DC Resistance (Re) | 1.70 Ω |
|
* Xmax specifications are derived via one-way voice coil overhang method with no correction factors applied. |
|
