Description

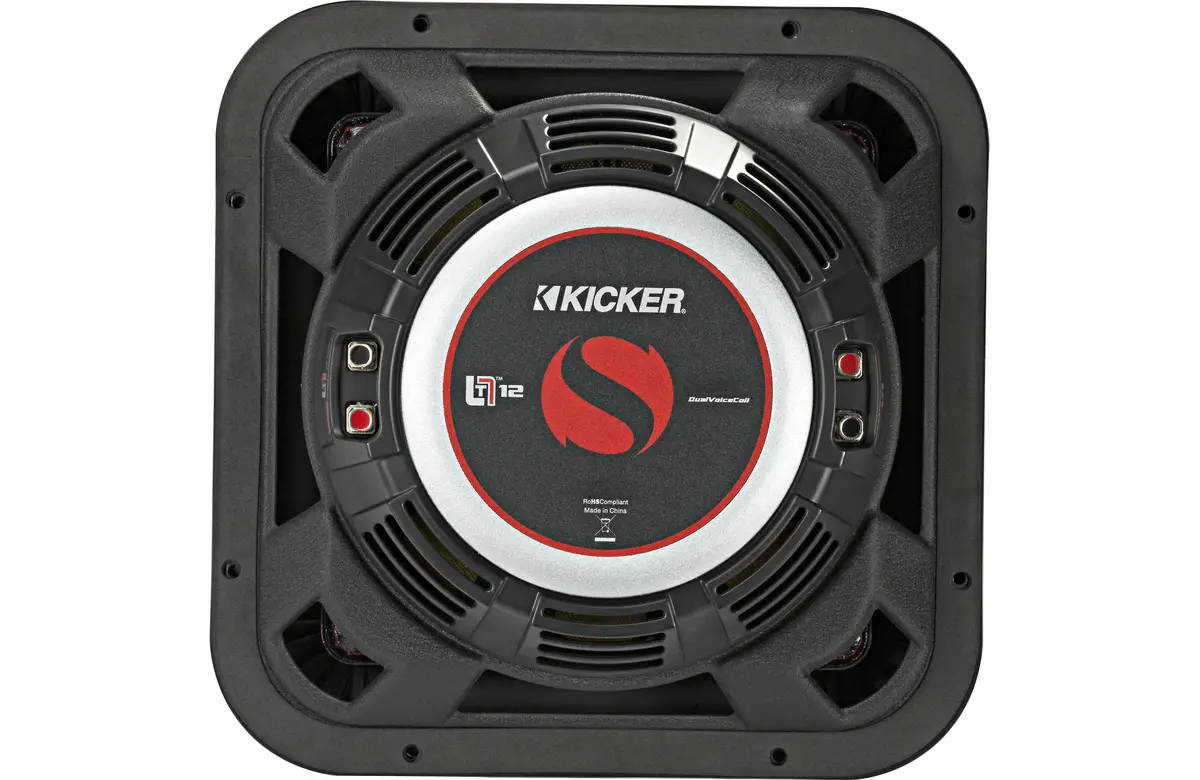

The L7T 12-inch Subwoofer is a true-bass, thin subwoofer with a pair of 4Ω voice coils.
With our custom SoloKon™ technology and the L7T’s unique interior support system, the sub sounds fat – but keeps it thin!
Features:
- Uses a Sealed or Ported Enclosure
- Square Sub Design Moves 20% More Air Than Round Subwoofers
- Easily Mounts Under or Behind a Seat
- Dual Voice Coil Design
- Ribbed Santoprene Surround Resists Heat And Degrading
- Bumped Top Plate For More Excursion & Smoother Performance
- SoloKon™ Cone With 360-Degree Back Bracing
- UniPlate™ Solid Pole Piece & Backplate For Excellent Heat Dissipation
- Durable Steel Basket
| Size (IN.,CM) | 12, 30 |
| Impedance (OHMS) | 4 DVC |
| Recommended Amplifier Power (watts RMS) | 600 |
| Peak Power (watts, per ANSI/CTA-2031-A) | 1200 |
| Sensitivity (dB 1w/1m) | 86.54 |
| Frequency Response (Hz) | 25-100 |
| Mounting Depth (IN.,CM) | 4-1/8, 9.5 |
| Mounting Cutout, Square (IN.,CM) | 11-1/16, 28.1 |
| Min Rec Sealed Box Volume (CU. FT., Liters) | .55, 15.6 |
| Max Rec Sealed Box Volume (CU. FT., Liters) | 1.25, 35.4 |
| Min Rec Vented Box Volume (CU. Ft., Liters)** | 1.75, 49.6 |
| Max Rec Vented Box Volume (CU. Ft., Liters)** | 2.25, 63.7 |
