Description
Highlights

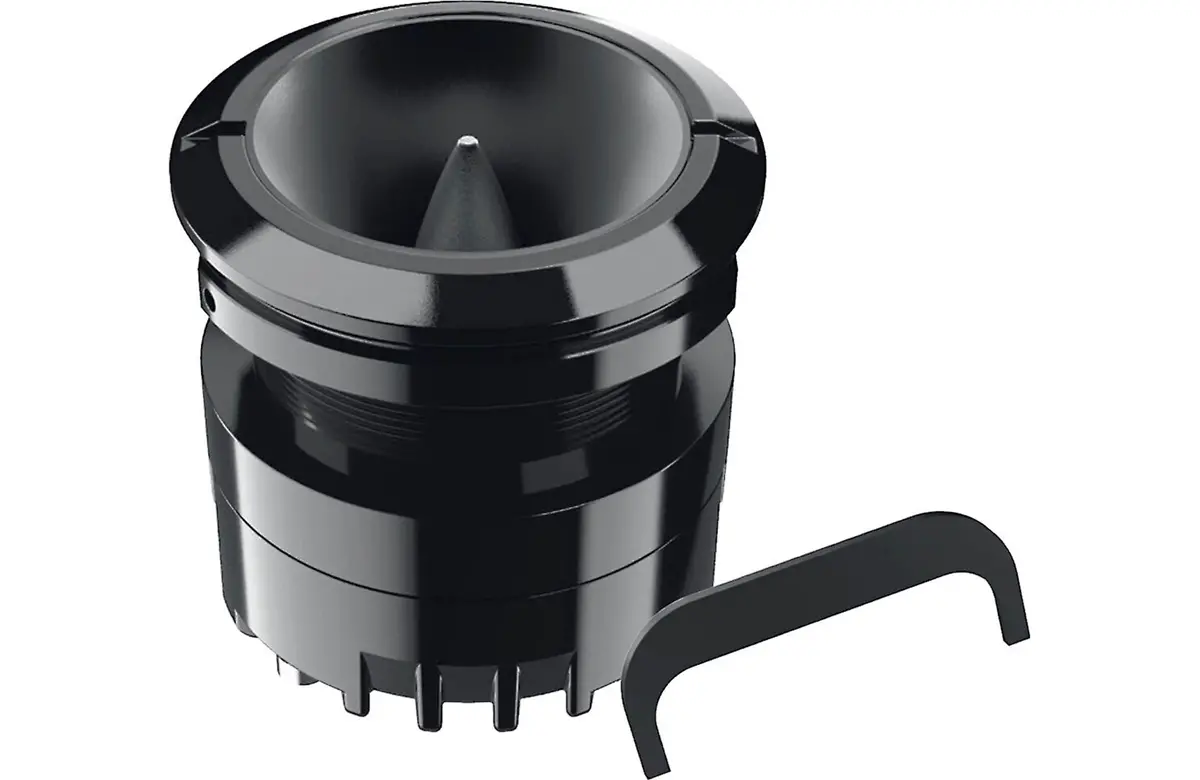

- 1-13/16″ aluminum dome bullet tweeter
- designed for SPL competition
- handles up to 50 watts RMS (100 watts peak)
- high-pass crossover point: 5,000 Hz at 12 dB per octave
- frequency response: 3,000-20,000 Hz
- impedance: 4 ohms
- sensitivity: 107 dB
- top-mount depth: 1″
- warranty: 2 years
Features
Power: The power handling specification (100 watts peak/50 watts RMS) is given when using a high-pass crossover; 5 kHz and 12 dB/octave.
Crossover: No crossover is included; the ST 25A Neo is packaged for use in an actively crossed over system.
Mounting: The ST 25 tweeters are designed to be flush mounted from the bottom, with the mounting surface sandwiched between the included threaded mounting collar and threaded trim ring. The threaded shaft is approximately 1″ tall, so the tweeter can be positioned within a range of depth/mounting height combinations.
Electro-Acoustic Specifications
| D mm | 35,5 |
| Re Ohm | 2,9 |
| Fs Hz | 3900 |
| Le mH | 0,03 |
| BL T*m | 2,05 |
| Spl dB | 107 |
Physical Specifications
| A | 57 mm | 2.24 in. |
| B | 43,5 mm | 1.7 in. |
| C | 55,5 mm | 2.19 in. |
| D | 29,7 mm | 1.17 in. |
Frequency Response
