Clarion Marine Audio System: Two Pairs of CMS-651-SWB Speakers, CM2513WL Subwoofer, and XC2510 Amplifier

Description

Clarion CMS-651-SWB x2 Pair Marine Speaker + CM2513WL Marine Subwoofer + XC2510 Marine Amplifier Bundle

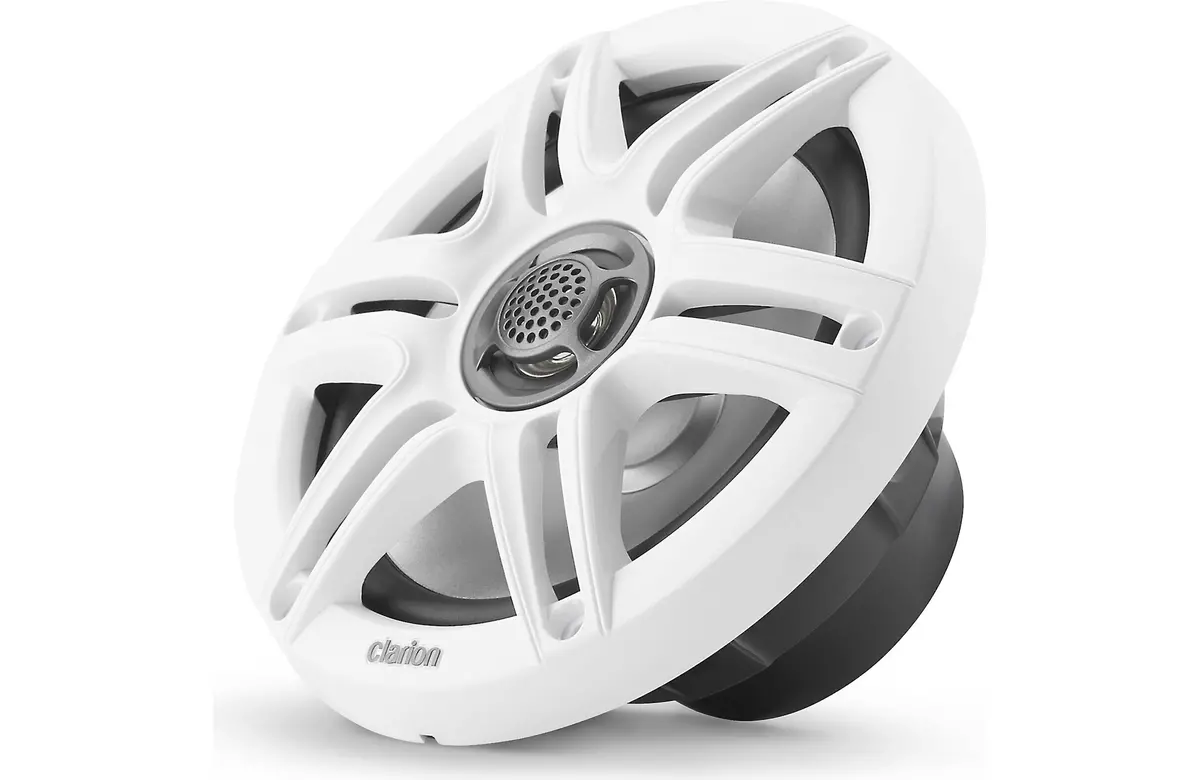

Speaker Highlights

• Includes White & Black Sport Grilles
• Salt Sun Certified
• 30W RMS power handling, perfect for source unit-powered systems
• Bridge-mounted,  ½ inch (13 mm) balanced-dome, polymer tweeter with neodymium magnet and ferrofluid cooling
• Standard cutout size and mounting hole for easy retrofitting

Speaker Features

Speaker Size	6   ½
Design	2-way
Tweeter Design	½” Balanced Dome
Tweeter Composition	PEI
Woofer Composition	Polypropylene
Woofer Surround	Rubber
Parts Warranty	1 Year
Labor Warranty	1 Year

Speaker Specifications

Sensitivity	87 dB at 1 watt
Frequency Response	55 – 20k Hz
Max RMS Power Handling	30
Peak Power Handling (Watts)	60
Impedance (Ohms)	4
Top-mount Depth (Inches)	2   ¹¹⁄₁₆
Bottom-mount Depth (Inches)	N/A
Cutout Diameter or Length (inches)	5

Sub Highlights

• Multi-Color LED Lighting
• 800 Watts Maximum Power Handling
• 250 Watts Continuous Power
• 10” (250 mm) IMPP Woofer Cone
• Dual 2 Ohm Voice Coil
• High Impact ASA Plastic Basket
• Male Waterproof Connector Built on Basket (Speaker & RGB Connector)
• Meets or Exceeds ASTM D4329 (UV Exposure)
• Meets or Exceeds ASTM B117 (Salt Fog Exposure)
• IP55 Water Ingress Protection
• Includes Silver & Black Grilles
• Includes Female Waterproof Connector for Speaker & RGB Lighting
• 8.66” (220 mm) Mounting Hole Diameter
• 5.04” (128 mm) Mounting Depth

Sub Specifications

GENERAL SPECIFICATIONS
Woofer Size	10” (250 mm)
Woofer Cone Material	Injection Molded Polypropylene (IMPP)
Woofer Surround Material	Santoprene
PERFORMANCE SPECIFICATIONS
Impedance	2 ohms DVC
SPL	87 dB
Frequency Response	30 – 800 Hz
Music Peak Power Handling	800 W
Continuous Power Handling	250 W
MARINE APPLICATION STANDARD
ASTM B117 (Salt / Fog Exposure)	MEETS OR EXCEEDS
ASTM D4329 (UV Exposure)	MEETS OR EXCEEDS
Water Ingress Protection Rating	IP55
LED COLOR COMBINATIONS
RGB Wire(s)	Color Output
Red	Red
Green	Green
Blue	Blue
Red + Green	Yellow
Red + Blue	Magenta
Green + Blue	Light Blue
Red + Green + Blue	White

Amp Highlights

• 5-channel amplifier
• 50 watts RMS x 4 + 200 watts RMS x 1 at 4 ohms
• 75 watts RMS x 4 + 300 watts RMS x 1 at 2 ohms
• 150 watts RMS x 2 bridged at 4 ohms + 300 watts RMS x 1 at 2 ohms
• CEA-2006 compliant
• Class D amp technology
• double-sided conformal-coated circuit board — suitable for power sports and marine applications (not waterproof)
• corrosion-resistant nickel-coated connections
• built-in ground loop isolation circuitry reduces input noise
• variable high-pass filters on front and rear channels (15-250 Hz, 12 dB/octave)
• variable low-pass filters on sub channel (35-250 Hz, 12 dB/octave)
• variable bass boost on sub channel (0-12 dB at 50 Hz)
• preamp and speaker-level inputs
• 8-gauge power and ground leads recommended — wiring and hardware not included with amplifier
• fuse rating: 40A x 2
• dimensions: 12-1/4″W x 1-5/8″H x 4-3/8″D
• warranty: 1 year

Amp Features

Amplifier Class	D
Low-Pass Crossover Frequency	35-250 Hz
Low-Pass Slope (dB/octave)	12 dB/octave
High-Pass Crossover Frequency	15-250 Hz
High-Pass Slope (dB/octave)	12 dB/octave
Bass Boost	0-12 dB
Bass Boost Frequency	50 Hz
Fan Cooled	No
Fuse Rating	80
Speaker Level Inputs	Harness
Preamp Outputs	No
Width (inches)	12-1/4
Height (inches)	1-5/8
Depth (inches)	4-3/8
Parts Warranty	1 Year
Labor Warranty	1 Year

Amp Specifications

RMS Power Output (Watts x Channels)	50 x 4 300 x 1
Peak Power Output (Watts x Channels)	—
Power at 2 Ohms (Watts x Channels)	75 x 4
Bridged Power (Watts x Channels)	150 x 2
Minimum Impedance Bridged	4
Minimum Impedance Unbridged	2
Minimum Impedance	2
Best Frequency Response	20-30k Hz
THD at Rated RMS Power	1%
Signal to Noise Ratio	70 dB
Input Voltage	14.4v
