Description

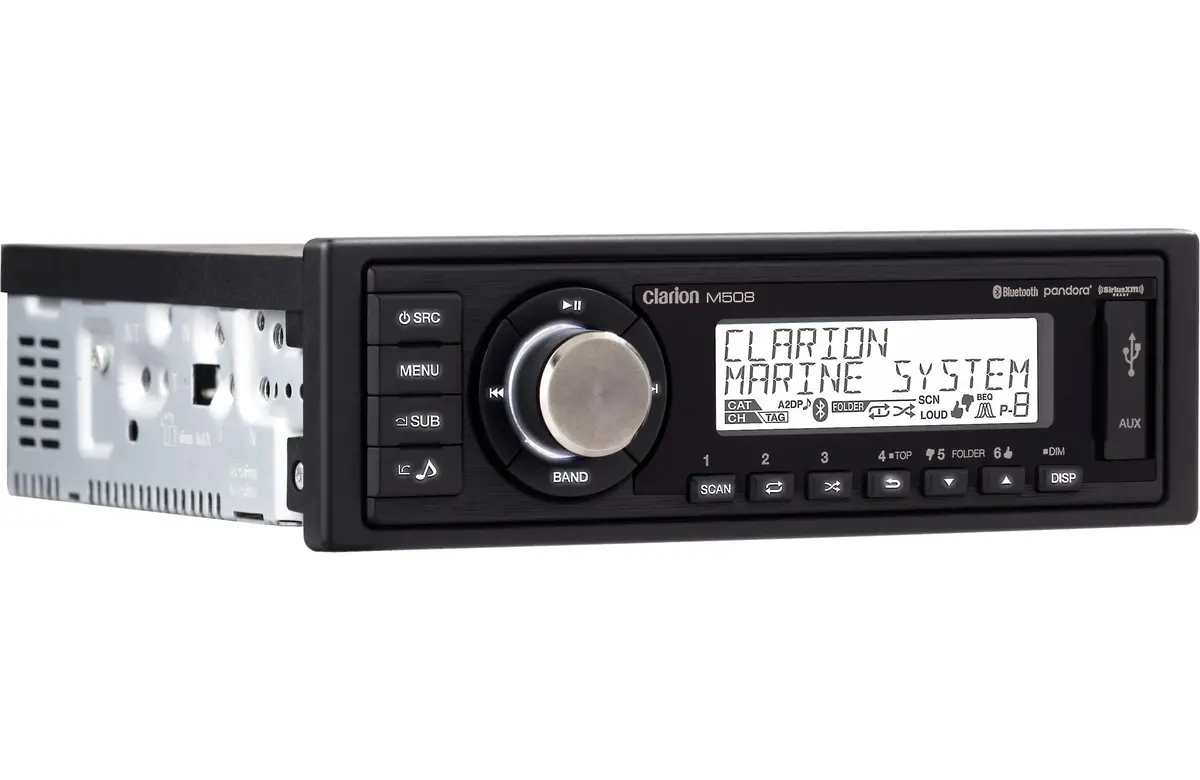

Environmentally Tough with Stylish Looks
Its single DIN chassis and face make it an excellent replacement system for smaller or older boats, while its upscale design fits right in with today’s highly stylized boat consoles and cabins. Designed for the boat environment, the two-line LCD display is able to show the information you need during day or night usage while the connectors have a protective cover to inhibit corrosion and damage.
Highlights
- 1 Year Warranty
- Water Resistant
- High Visibility Oversized LCD Display
- Built-In Bluetooth
- USB Connectors
- MP3/WMA USB File Playback
- AM/FM
- USB/iPod
- 4-Channel/2V RCA Outputs
Smartphone Features
High Quality Bluetooth Audio Streaming powered by Qualcomm® aptX™ and Hands-free Calling
Enjoy Bluetooth audio streaming with improved quality thanks to aptX codec support. This technology improves audio quality when listening to compressed audio over Bluetooth in a way that doesn’t degrade audio quality or cause latency, and reproduces the full audio bandwidth for quality sound on the waves.With Hands-free Profile, enjoy placing and taking calls through your radios sound system when connected to an optional external microphone.
Superior iPod®and iPhone®Connectivity
Enjoy the familiar control of your iPhone, through the radios display.
Simple control mode lets you easily operate the system using just the iPhone controls, including ABC search to quickly access tunes.
* For audio playback, please use the USB cable provided with your iPod and iPhone
* Depending on mobile phone.
* Please see our website for details of compatible Bluetooth mobile phones.
Front AUX Input for Convenient Connection
With AUX input connectors right on the front of the unit, it’s extremely easy to hookup an external audio source for enjoyment through your boat’s audio system.
Specifications
| TUNER | |
|---|---|
| Frequency bands | FM/AM/Weather Band |
| FM Tuner | |
| Frequency Range | USA 87.9 ～ 107.9 MHz (0.2 MHz STEP) |
| Europe 87.50 ～ 108.00 MHz (0.05 MHz STEP) | |
| Australia 87.50 ～ 108.00 MHz (0.01 MHz STEP) | |
| Other Countries 87.50 ～ 108.00 MHz (0.05 MHz STEP) | |
| AM Tuner | |
| Frequency Range | USA 530 ～ 1710 kHz (10 kHz STEP) |
| Europe 531 ～ 1602 kHz (9 kHz STEP) | |
| Australia 531 ～ 1629 kHz (9 kHz STEP) | |
| Other Countries 531 ～ 1629 kHz (9 kHz STEP) | |
| Weather Band | |
| NOAA Frequency Range | 162.400MHz ～162.550MHz |
| Channel 1 : 162.400MHz | |
| Channel 2 : 162.425MHz | |
| Channel 3 : 162.450MHz | |
| Channel 4 : 162.475MHz | |
| Channel 5 : 162.500MHz | |
| Channel 6 : 162.525MHz | |
| Channel 7 : 162.550MHz | |
| Bluetooth | |
| Profile | A2DP (Advanced Audio Distribution Profile) |
| AptX | |
| AVRCP (AV Remote Control Profile) | |
| HFP (Hands Free Profile) | |
| SPP (Serial Port Profile) | |
| SSP (Simple Secure Pairing) | |
| AUDIO | |
| Maximum Power Output | 50 W × 4 |
| Low Pass Filter (Subwoofer) | ●80 / 120 / 180 (W/O Full Range) |
| GENERAL | |
| Dimensions (W × H × D) (Inches) | 7 1/8 × 2 × 6 1/2 |
| Dimensions (W × H × D) (mm) | 180 × 50 × 165 |
| Low Consumption Mode as Power Off | <50mA when POWER=OFF (Need < 3mA when ACC=OFF) |
