Description
Highlights
- 1 Year Warranty
- Wired Remote Ready
- UV and Salt Water Resistant
- Full Dot Matrix LCD Display
- Built-In Bluetooth
- AM/FM
- Compatible with SiriusXM,
- AUX and USB/iPod
Smartphone Features
Hideaway Source Unit for Installation Flexibility

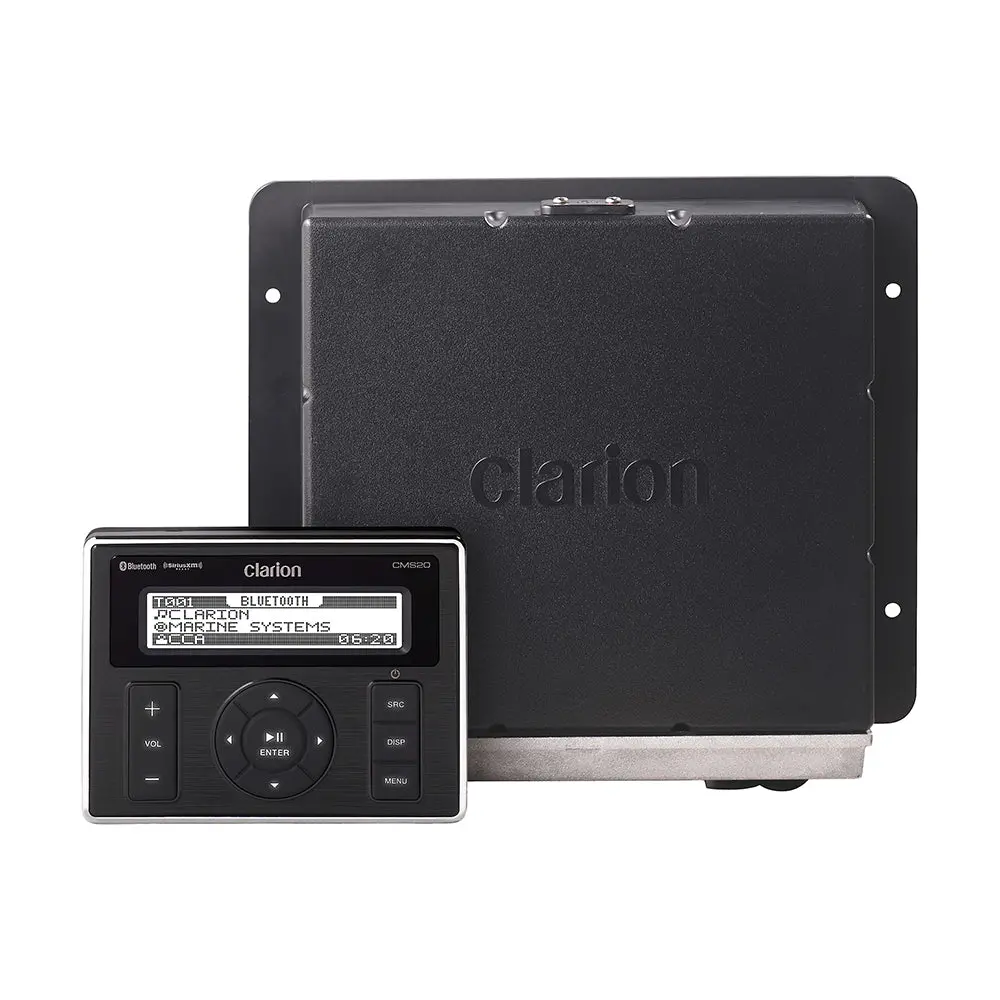

Clarion’s CMS20 is a digital media hub that has been designed specifically for boats with a compact Black Box and weather protected controller. The essentials including Bluetooth and AM / FM / Weather Band are built in, with a wide variety of connections including SiriusXM, AUX and USB/iPod® so you can create a system that gives you a custom audio listening experience.
Bluetooth Quality Streaming powered by Qualcomm® aptX™ audio
Enjoy high fidelity Bluetooth streaming thanks to aptX codec support. This technology maintains the quality of your music when enjoying it over Bluetooth and does not degrade the detail or introduce latency in your playback. Now, even while streaming wirelessly, the CMS20 can reproduce the full audio bandwidth for high quality sound while out on the water.
Stay Connected to Your Music on iPod, iPhone®, and USB Flash Memory
Get away from it all, but stay connected to your music on iPod, iPhone, and USB flash memory. Just use the cable that came with your iPod or iPhone, and connect to the USB input to display song/artist/album information on the CMS20’s display.
Please check for compatible mobile phone models “here.”
Specifications
| TUNER | |
|---|---|
| Frequency bands | FM/AM/Weather Band |
| FM Tuner with RDS | |
| Frequency Range | USA 87.9 ~ 107.9 MHz (0.2 MHz STEP) |
| Europe 87.50 ~ 108.00 MHz (0.05 MHz STEP) | |
| Australia 87.50 ~ 108.00 MHz (0.01 MHz STEP) | |
| Other Countries 87.50 ~ 108.00 MHz (0.05 MHz STEP) | |
| AM Tuner | |
| Frequency Range | USA 530 ～ 1710 kHz (10 kHz STEP) |
| Europe 531 ～ 1602 kHz (9 kHz STEP) | |
| Australia 531 ～ 1629 kHz (9 kHz STEP) | |
| Other Countries 531 ～ 1629 kHz (9 kHz STEP) | |
| Weather Band | |
| NOAA Frequency Range | 162.400MHz ～162.550MHz |
| Channel 1 : 162.400MHz | |
| Channel 2 : 162.425MHz | |
| Channel 3 : 162.450MHz | |
| Channel 4 : 162.475MHz | |
| Channel 5 : 162.500MHz | |
| Channel 6 : 162.525MHz | |
| Channel 7 : 162.550MHz | |
| Bluetooth | |
| Profile | A2DP (Advanced Audio Distribution Profile) |
| AVRCP (AV Remote Control Profile) (1.4) with TAG info display and Browse | |
| AptX | |
| SPP (Serial Port Profile) | |
| SSP (Simple Secure Pairing) | |
| Bluetooth Auto Connect | ● |
| AUDIO | |
| Maximum Power Output | 50 W × 4 |
| Low Pass Filter (Subwoofer) | ●80/120/160/Through |
| GENERAL | |
| Black Box Dimensions (W × H × D) (Inches) | 6 7⁄8 × 2 1⁄64 × 6 25⁄32 |
| Commander Dimensions (W × H) (mm) | 152.5 x 102 |
| Black Box Dimensions (W × H × D) (mm) | 174.5 × 51.3 × 172.2 |
| Low Consumption Mode as Power Off | < 50mA when POWER=OFF (Need < 3mA when ACC=OFF) |
