Description
Clarion CMS4 Hideaway Marine Digital Media Receiver w/ Bluetooth + Clarion CMS-651-CWB x2 Pair 6.5″ Marine Speakers + CMSP-101RGB-4 10″ 4-ohm Subwoofer + Clarion XC2510 Marine Amplifier
Speaker Highlights
- Includes White & Black Classic Grilles
- Salt Sun Certified
- 30W RMS power handling, perfect for source unit-powered systems
- Bridge-mounted, ½ inch (13 mm) balanced-dome, polymer tweeter with neodymium magnet and ferrofluid cooling
- Standard cutout size and mounting hole for easy retrofitting
Speaker Specifications
| Sensitivity | 87 dB at 1 watt |
| Frequency Response | 55 – 20k Hz |
| Max RMS Power Handling | 30 |
| Peak Power Handling (Watts) | 60 |
| Impedance (Ohms) | 4 |
| Top-mount Depth (Inches) | 2 ¹¹⁄₁₆ |
| Bottom-mount Depth (Inches) | N/A |
| Cutout Diameter or Length (inches) | 5 |
Sub Highlights
- Sold individually with no Grille in single 2 ohm or 4 ohm voice coil models
- Salt & Sun Certified
- Built-in RGB LED Lighting
- Optimized for infinite baffle applications, without a dedicated enclosure behind the speaker
- Long excursion, high power handling design delivers low-distortion and excellent low frequency capability
- 250W RMS power handling, ideally matched to Clarion subwoofer amplifiers
Sub Features
Marine Use: The speakers are tested to ensure they meet or surpass the ASTM-D4329 standard for UV stability and the ASTM-B117 standard for salt/fog resistance.
LEDs: There are multi colored LEDs on the back of the bridge across the subwoofer to create a glow on the cone. Depending on what combination of the LED wires is connected, they can light red, green, blue, yellow, pink, light blue, or white. A +12 volt power supply is needed to turn the LEDs on and Clarion recommends the power wire be fused at 250 mA.
Infinite-Baffle Operation: This sub is optimized for infinite-baffle operation (free air), so it can be installed in a variety of locations, without the need for a dedicated enclosure.
Terminals: Crimp-on quick slides are included for connecting the audio signal, designed for 14-16 gauge wire. A waterproof harness is included for the four 26 gauge LED wires.

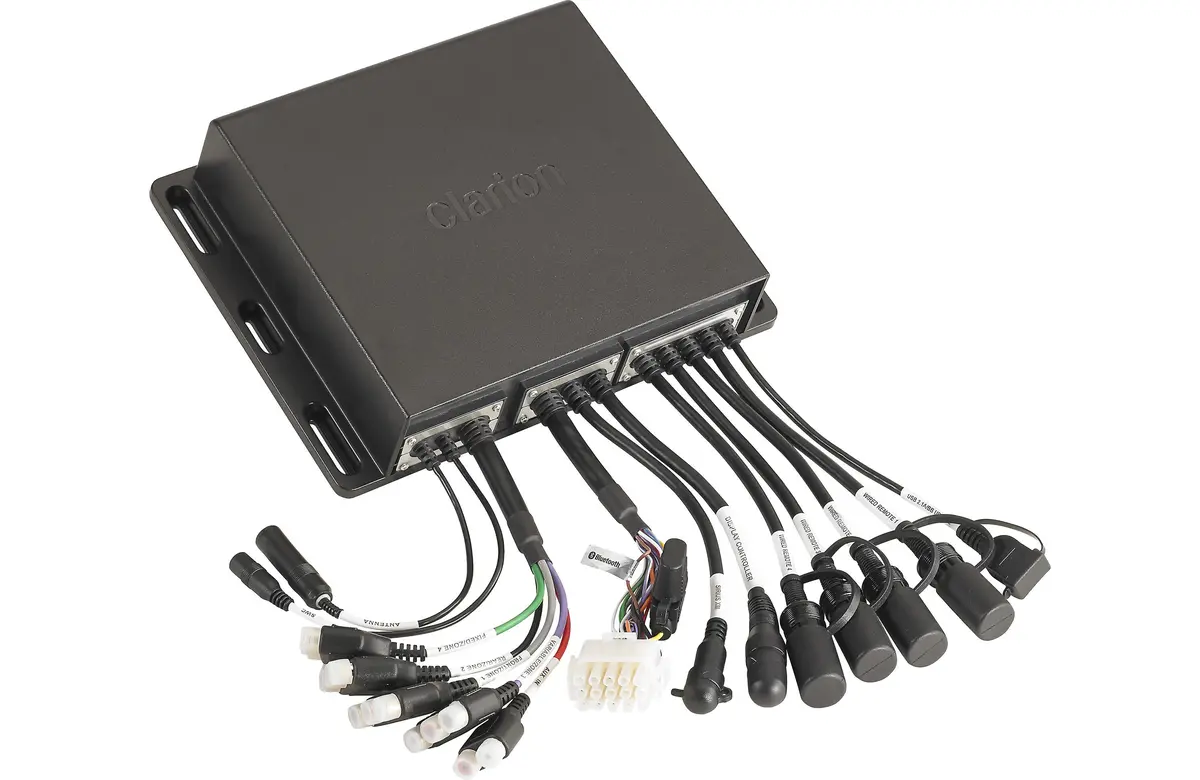

Receiver Highlights
- marine digital media receiver
- package includes compact hide-away black box and 3.5″ color LCD controller
- built-in MOSFET amp (18 watts RMS CEA-2006/70 watts peak by 4 channels)
- built-in Bluetooth with aptX
- global AM/FM/Weather Band tuner
- iPod/iPhone Direct Control via USB
- Pandora Internet radio
- Android Smartphone-compatible
- plays USB, MP3, WMA
- variable color button illumination
- high- and low-pass filters
- 4-zone source and volume control
- 7-band equalizer
Receiver Features
- compatible with SiriusXM satellite radio tuner
- inputs: RCA audio input; USB port; RCA composite camera input
- outputs: 12-channel preamp outputs (3.5 volts front and mono sub for four separate zones)
- accepts up to 4 Clarion wired marine remotes
- long memory retention for presets
- low power consumption mode when powered off
- controller dimensions: 6″ x 4″
- black box dimensions: 9-7/8″W x 8-1/16″D x 2-7/16″H
- warranty: 1 year
Amp Highlights
- 5-channel amplifier
- 50 watts RMS x 4 + 200 watts RMS x 1 at 4 ohms
- 75 watts RMS x 4 + 300 watts RMS x 1 at 2 ohms
- 150 watts RMS x 2 bridged at 4 ohms + 300 watts RMS x 1 at 2 ohms
- CEA-2006 compliant
- Class D amp technology
- double-sided conformal-coated circuit board — suitable for power sports and marine applications (not waterproof)
- corrosion-resistant nickel-coated connections
- built-in ground loop isolation circuitry reduces input noise
- variable high-pass filters on front and rear channels (15-250 Hz, 12 dB/octave)
- variable low-pass filters on sub channel (35-250 Hz, 12 dB/octave)
- variable bass boost on sub channel (0-12 dB at 50 Hz)
- preamp and speaker-level inputs
- 8-gauge power and ground leads recommended — wiring and hardware not included with amplifier
- fuse rating: 40A x 2
- dimensions: 12-1/4″W x 1-5/8″H x 4-3/8″D
- warranty: 1 year
Amp Features
| Amplifier Class | D |
| Low-Pass Crossover Frequency | 35-250 Hz |
| Low-Pass Slope (dB/octave) | 12 dB/octave |
| High-Pass Crossover Frequency | 15-250 Hz |
| High-Pass Slope (dB/octave) | 12 dB/octave |
| Bass Boost | 0-12 dB |
| Bass Boost Frequency | 50 Hz |
| Fan Cooled | No |
| Fuse Rating | 80 |
| Speaker Level Inputs | Harness |
| Preamp Outputs | No |
| Width (inches) | 12-1/4 |
| Height (inches) | 1-5/8 |
| Depth (inches) | 4-3/8 |
| Parts Warranty | 1 Year |
| Labor Warranty | 1 Year |
Amp Specifications
| RMS Power Output (Watts x Channels) | 50 x 4 300 x 1 |
| Peak Power Output (Watts x Channels) | — |
| Power at 2 Ohms (Watts x Channels) | 75 x 4 |
| Bridged Power (Watts x Channels) | 150 x 2 |
| Minimum Impedance Bridged | 4 |
| Minimum Impedance Unbridged | 2 |
| Minimum Impedance | 2 |
| Best Frequency Response | 20-30k Hz |
| THD at Rated RMS Power | 1% |
| Signal to Noise Ratio | 70 dB |
| Input Voltage | 14.4v |
