SLAM-Compatible Laser Scanner Targets: RSL632M and RSL652M

Description

Laser Scanner and SLAM Targets with Special Magnetic Base and swivel and tilt function

• Ball bearing joints allow the laser scanner target to be aligned smoothly in any direction while always remaining precisely on axis and in position.
• The target can be used as a scanner or drone target
• Available in two versions:

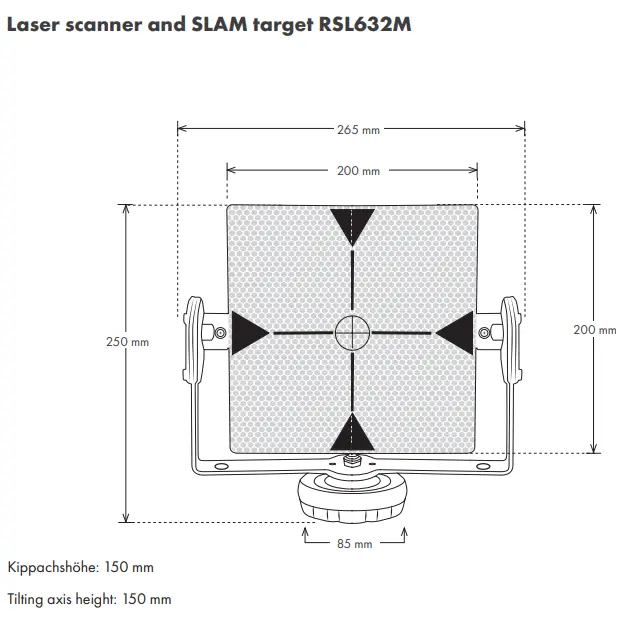

  • RSL632M – with 200 x 200 mm target, tilting axis height 150 mm
  • RSL652M – with Ø 300 mm target, tilting axis height 200 mm
• Fixed points for linking several viewpoints
• Assignment of spatial reference information to a geodata set even over longer ranges

Magnetic Base:

• Special magnetic base with 10 magnets for all metallic surfaces and other applications
• The cavity on the magnetic base for use in conjunction with the fixed point system RSFP-X90 to RSFP-X99 variants
• When using the targets in conjunction with the RSFP-X90-1, RSFP-X90-2, RSFP-X90-3 or RSA-5/8-1 adapters:
  • This allows the laser scanner target to be placed on any standard tripod or trivet.
  • This allows the laser scanner target to be placed exactly over an RS mini prism.
• Due to the dead weight, the RSFP-X99 fixed points with greater magnetic force are recommended for the use of the marks on walls or non-metallic surfaces.

Please Note that due to Manufacturer Requirements this product has a Minimum Order Quantity (MOQ) If you have questions or concerns regarding these MOQ numbers, please contact us for more information.
