Description
Highlights

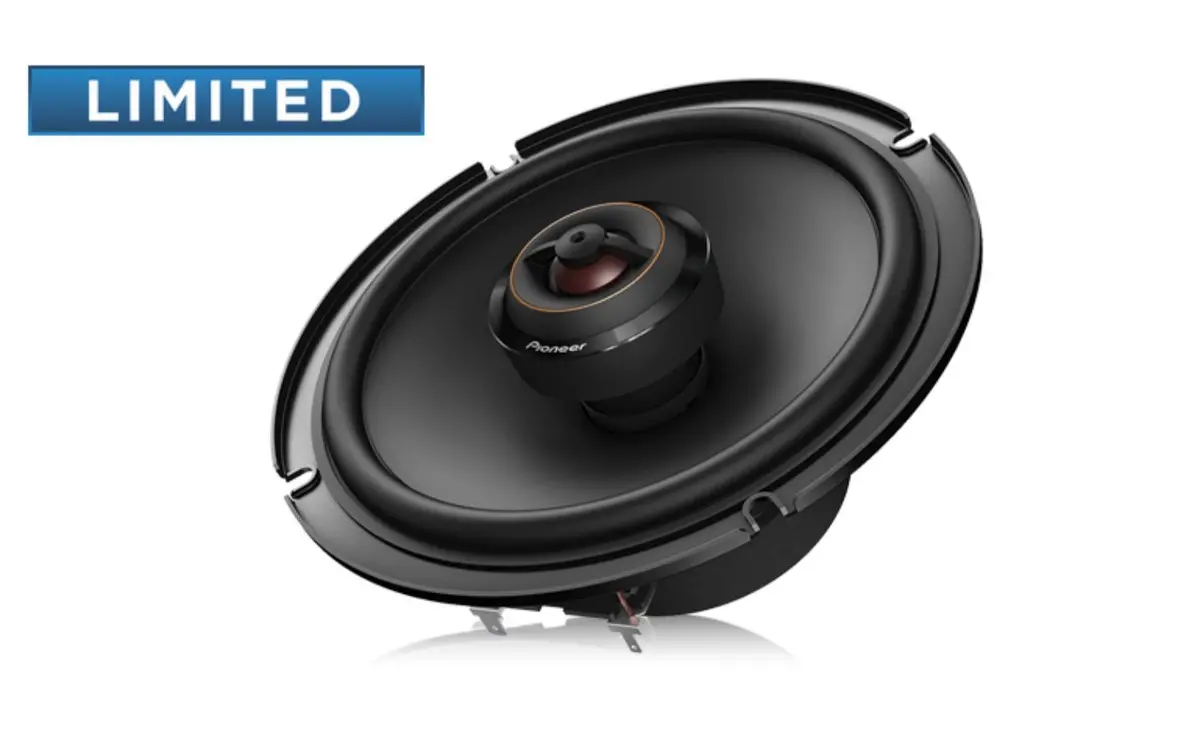

The D is a result of Pioneer’s automotive loudspeaker engineering experience and expertise, combining advanced design techniques with highly developed manufacturing capabilities.
Following Pioneer’s OPEN & SMOOTH sound concept, the D series of automotive loud speakers provides broad and balanced frequency response with a wide sound stage and amazing fidelity for the listener.
Features
- 26mm Polyester Soft Dome Tweeter with Swivel Capability
- Aramid Fiber Interlaced Injection Molded Polypropylene (IMPP) Cone Construction
- Universal Woofer Basket Design Expands Installation Flexibility for Maximum Bass and Sound Quality
Specifications
System
| System Type | 2-way Coaxial |
| Sound Pressure Level (Sensitivity) | 85dB (+- 1.5dB) |
| Frequency Range | 32 Hz to 49 kHz |
| Continuous Power Handling (RMS) | 90 Watts |
| Maximum Peak Power Handling | 270 Watts |
| Nominal Impedance | 4 ohms |
| Crossover Frequency | 3900 Hz |
Woofer
| Diameter | 6.5” |
| Cone Material | Aramid Fiber Interlaced Injection Molded Polypropylene (IMPP) |
| Surround Material | Butyl Rubber |
| Magnet Material | Ferrite |
| Magnet Weight | 11.3 oz |
Tweeter
| Type | Soft Dome |
| Diameter | 26 mm |
| Diaphragm Material | Polyester |
| Magnet Material | Neodymium |
| Magnet Weight | 6.4 g |
| Swivel Type | Yes |
