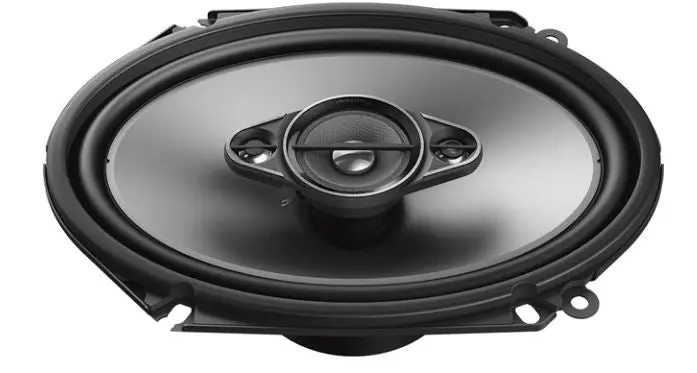

Description
Highlights
Pioneer’s A-series sound design purposely matches the subwoofer and full-range loudspeakers to provide seamless and smooth sound characteristics with dynamic, high impact bass that lets you hear and feel the music.
Pioneer’s OPEN & SMOOTH sound concept provides a seamless and smooth transition between the mid-range and tweeter drivers and delivers uniform off-axis frequency response optimized for automotive applications where one or more speakers are often aimed away from the listeners’ ears.
Features
- 350 Watts Max Power (80 Watts Nominal)
- Twin 11mm polyethylene terephthalate (PET) hard dome tweeter
- 1 ⅝” cellulose fiber cone mid-range
- 6 x 8″ carbon and mica reinforced Injection Molded Polypropylene (IMPP) cone construction
- 4,600 Hz
Specifications
System
| System Type | 4-way Coaxial |
| Sound Pressure Level (Sensitivity) | 88 dB (+- 1.5dB) |
| Frequency Range | 34 Hz to 34 kHz |
| Continuous Power Handling (RMS) | 80 Watts |
| Maximum Peak Power Handling | 350 Watts |
| Nominal Impedance | ohms |
Woofer
| Diameter | 6″ x 8″ |
| Cone Material | Carbon and mica reinforced IMPP in moonstone gray |
| Surround Material | Elastic polymer |
| Magnet Material | Ferrite |
| Magnet Weight | 7.6 oz |
| Mounting Depth | 2 ½” |
Tweeter
| Type | Twin Polyethylene terephthalate (PET) dome |
| Diameter | 11 mm |
