Pioneer TS-A1305C 5.25-Inch Component Speaker Package with Tweeters and Crossovers

Description

Highlights

For a smooth off-axis response, the TS-A1305C speakers include a soft dome tweeter/midrange driver utilizing a wave guide enclosure. The design enables mid and high frequencies to be projected in a uniform and wide dispersion pattern, resulting in a smooth on- and off-axis response.

The fiber in the diaphragm is optimized to balance lightness and rigidity, so that it achieves outstanding sound propagation with high sensitivity, speed and responsiveness.The large magnet greatly enhances drivability of the diaphragm and ensures that sound is reproduced with impressive power.

This newly developed tweeter disperses sound more widely with superior control, providing listeners with the best sound under all conditions, regardless of listening position or car. Pioneer also extends tweeter performance to much lower frequencies, creating a wider response with fuller midrange fidelity and clear, accurate vocals.

Features

• 300 Watts Max Power (50 Watts Nominal)
• New Multilayer Mica Matrix Cone Design for Optimum Sound Reproduction and Responsiveness
• Soft Dome Tweeter with Wave Guide for Increased Sensitivity

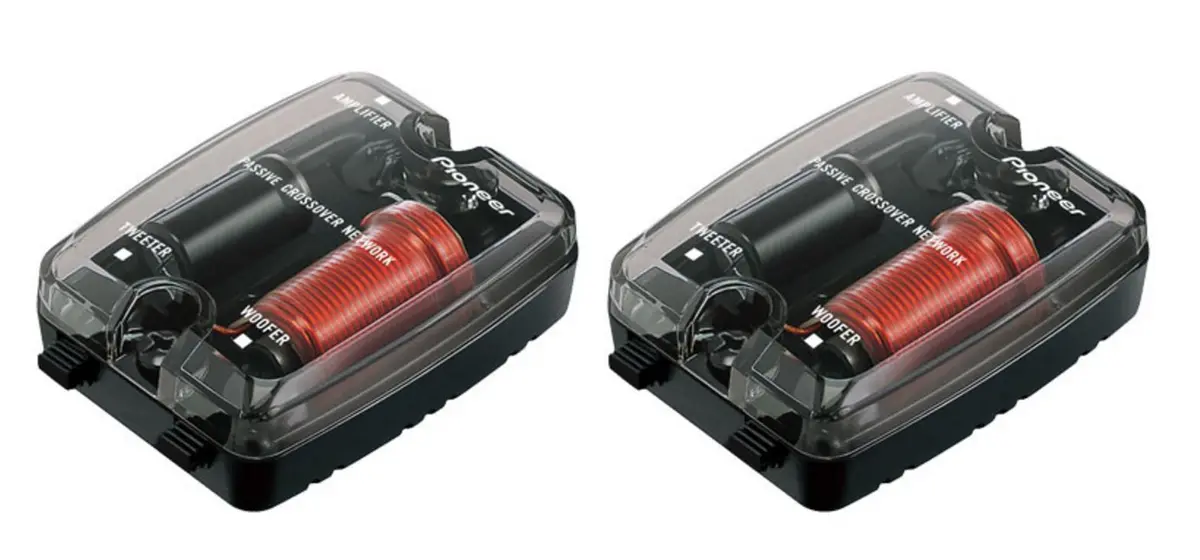

• Passive Crossover Network
• Lightweight elastic polymer surround for high sensitivity
• Smooth off-axis response
• Heat-resistant voice coil wire for heat dissipation and durability to withstand high input power
• New grille design

Specifications

• Size: 5-1/4″ (woofer), 3/4″ (tweeter)
• Max. Music Power (Nominal): 300 W (50 W)
• Cone Material: Multilayer Mica Matrix Cone
• Frequency Response: 48Hz to 32 kHz
• Sensitivity (1 W/1 m): 89 dB
• Impedance: 4 Ω
• Mounting Depth: 2-1/8″ (woofer), 3/4″ (tweeter)
• Cut-Out Dimensions: 4-3/4″
