Mobile Mapping & Ground Control Targets: RSL-X94M-RS Series

Description

Short Targets

• Available with Checkerboard or Iron Cross Pattern
• Black-and-White printed on one side
• Tilting axis height 45 mm

Tall Targets

• Available with Checkerboard or Iron Cross Pattern
• Black-and-White printed on one side
• Tilting axis height 100 mm

When using these targets with a scanner or ground control, they are recognised by the instruments from a greater distance or height.

It is also possible to measure the reference points precisely in advance with a tachymeter or total station, whereby accuracies of ±1 mm can be achieved. See reference point RSFP-X90

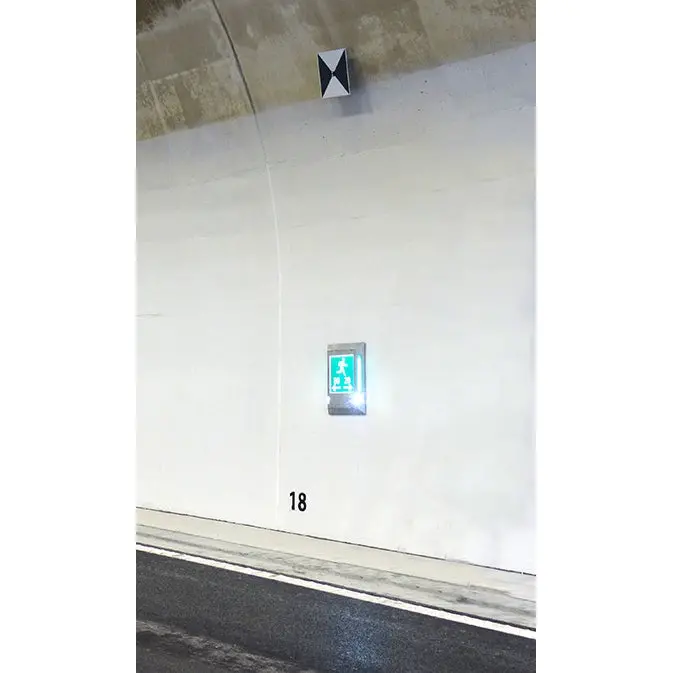

In tunnels, the reference points RSFP-X90 to RSFP-X99 are first measured with the Mini-Prism RSMP390M or RSMP395M. The reference points are then populated with the RSL-X94M or RSL-X95M target. Thus, these targets provide perfect and precise orientation for mobile mapping.

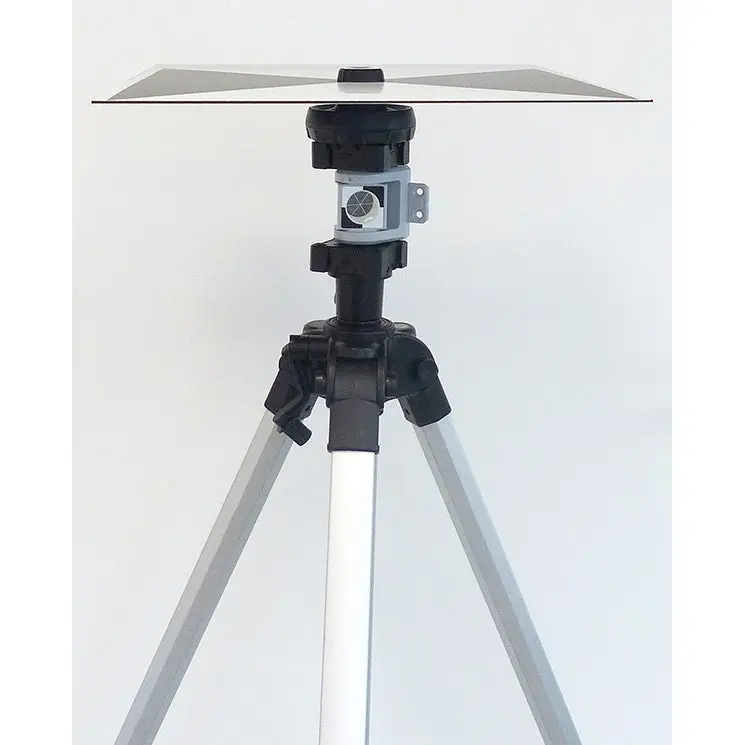

For even more precise measurements using ground controls, the targets can be placed on a tripod directly above the centre of a prism.

Please Note that due to Manufacturer Requirements this product has a Minimum Order Quantity (MOQ) If you have questions or concerns regarding these MOQ numbers, please contact us for more information.
