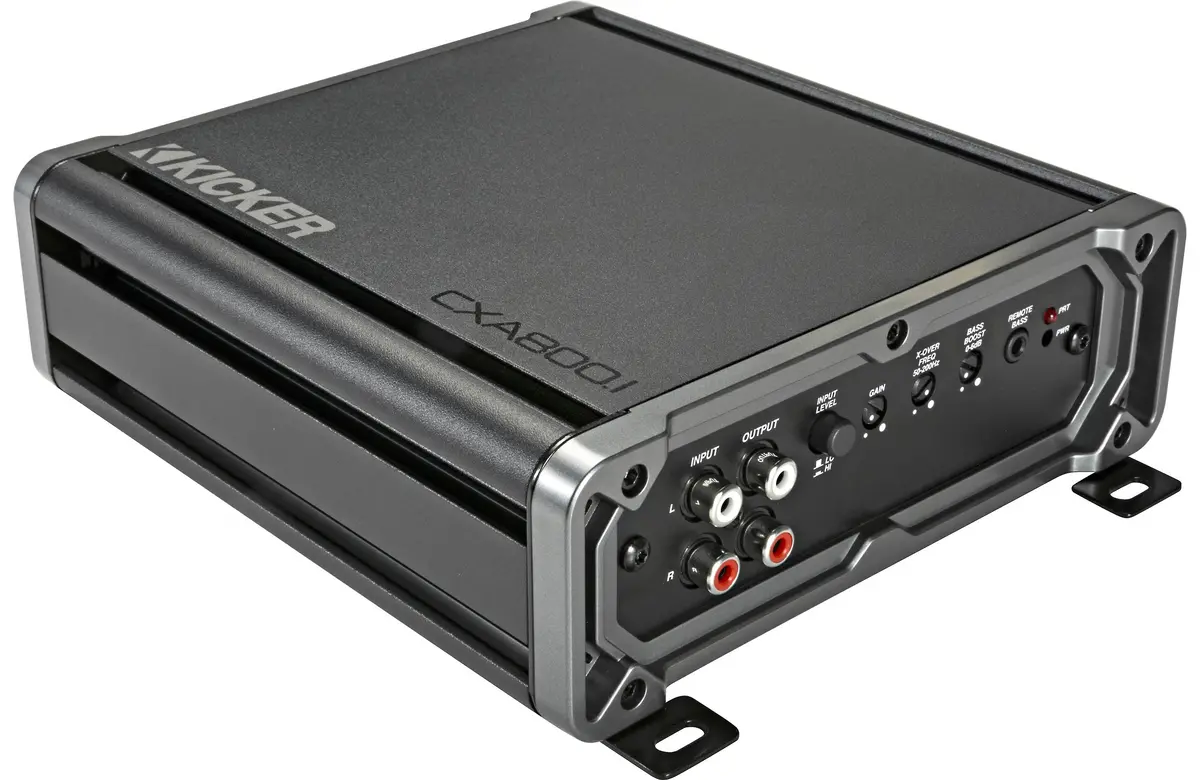

Kicker CXA800.1 — 800W Mono Class D Subwoofer Amplifier

Description

Highlights

This CX-Series Mono Amp is now one-ohm stable, giving you even more power and wiring options for your system! Using a Class-D power plant, the CXA800.1 features a variable bass boost with KickEQ™, giving you as much as a 6dB of extra bump with a simple turn of the optional CXARC Remote Bass Controller. A powerful 12dB crossover and 24dB subsonic filter is included, letting you quickly tune your system to perfection. Use the full-range outputs to expand your system with other bass amps, or a full-range amp to complete your system.

• Efficient Class-D amplifier
• Three-second turn-on/off delay to eliminate unwanted interference
• Variable 12dB crossovers provides control to dial in perfect sound
• KickEQ™ 6dB variable bass boost for those additional low frequencies
• 24dB subsonic filter for protection from potentially damaging frequencies
• FIT+™ (Fail-safe Integration Technology-PLUS) means it works with nearly every radio
• Accepts up to 40-volt input signal
• Small footprint for easier installation
• Compatible with CXARC (link to remote) Remote Bass Control
• Vertical mounting hardware included for another unique look

Amplifier Class	D
Low-Pass Crossover Frequency	50-200 Hz
Low-Pass Slope (dB/octave)	12 dB/octave
High-Pass Crossover Frequency	N/A
High-Pass Slope (dB/octave)	N/A
Bass Boost	0-6 dB
Bass Boost Frequency	40 Hz
Fan Cooled	No
Fuse Rating	80

Specifications

RMS Power Output (Watts x Channels)	300 x 1
Peak Power Output (Watts x Channels)	1600 x 1
Power at 2 Ohms (Watts x Channels)	600 x 1
Bridged Power (Watts x Channels)	N/A
Minimum Impedance Bridged	N/A
Minimum Impedance Unbridged	1
Minimum Impedance	1
Best Frequency Response	25-200 Hz
THD at Rated RMS Power	1%
Signal to Noise Ratio	75 dB
Input Voltage	14.4v

What’s in the box:

• Mono amplifier
• 2 Vertical mounting brackets
• 3mm Allen wrench
• Four 3/4″ Screws
• Owner’s manual
• Power chart
• Certified Power certificate
