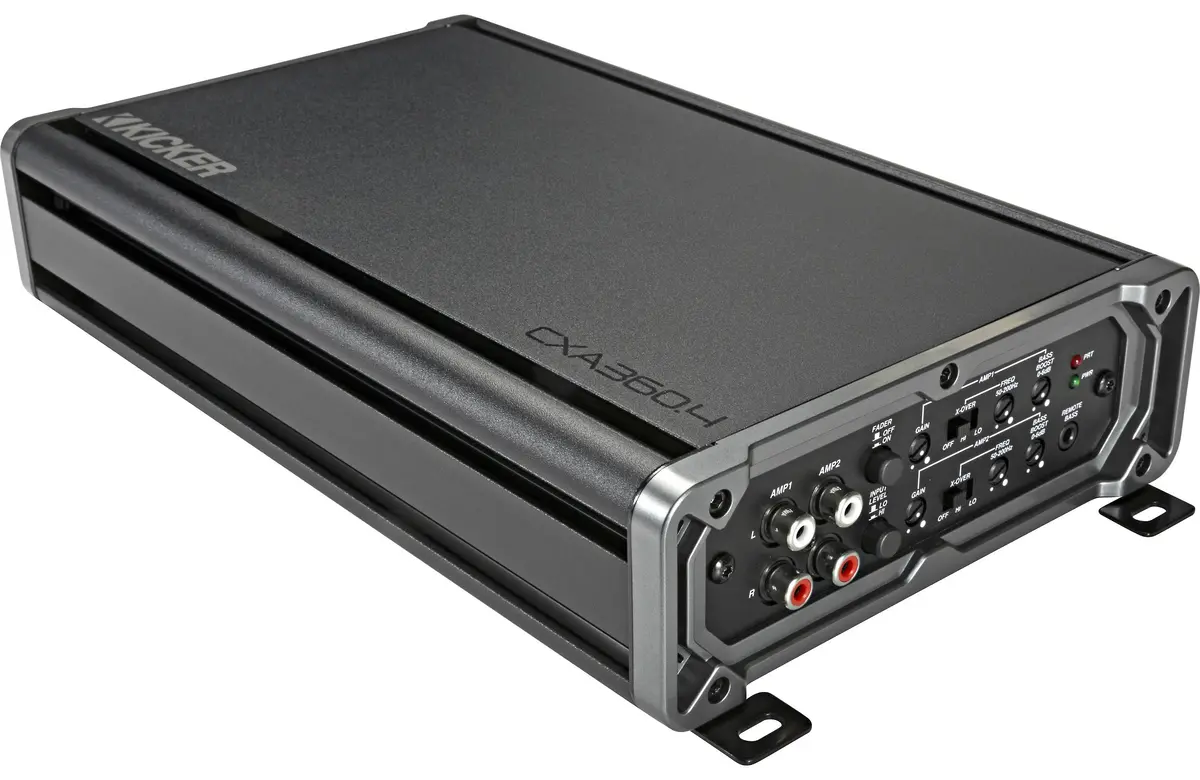

Kicker CXA360.4 4-Channel Class AB Car Audio Amplifier

Description

Highlights

• 4-channel car amplifier
  • 65 watts RMS x 4 at 4 ohms (90 watts RMS x 4 at 2 ohms)
  • 180 watts RMS x 2 bridged at 4 ohms (4-ohm stable when bridged)
• CTA-2006 compliant
• Class AB amp technology
• Frequency response: 10-20,000 Hz
• Variable high- and low-pass filters (50-200 Hz, 12 dB/octave)
• Variable bass boost (0-6 dB at 40 Hz)

Features

• Preamp and speaker-level inputs
  • Speaker-level inputs require speaker wire to RCA adapters
• Optional remote bass level controller available for rear channels
• 3-second delay for turn-on and turn-off
• Includes hardware for vertical mounting
• Wiring, fuse, and hardware not included with amplifier
• • 8-gauge power and ground leads and a 40-amp fuse recommended
• Dimensions: 12  ⅞” W x 2⅜” H x 6¾” D
• Warranty: 2 years

Specifications

Amplifier Class	AB
Low-Pass Crossover Frequency	50-200 Hz
Low-Pass Slope	12 dB / octave
High-Pass Crossover Frequency	50-200 Hz
High-Pass Slope	12 dB / octave
Bass Boost	0-6 dB
Bass Boost Frequency	40 Hz
Fuse Rating	40
Speaker Level Inputs	RCA
Preamp Outputs	No
RMS Power Output (Watts x Channels)	65 x 4
Peak Power Output (Watts x Channels)	180 x 4
Power at 2 Ohms (Watts x Channels)	90 x 4
Bridged Power (Watts x Channels)	180 x 2
Minimum Impedance Bridged	4
Minimum Impedance Unbridged	2
Minimum Impedance	2
Best Frequency Response	10-20000 Hz
THD at Rated RMS Power	1%
Signal to Noise Ratio	75 dB
Input Voltage	14.4v

Dimensions

Width	12      ⅞”
Height	2     ⅜”
Depth	6      ¾”
Parts Warranty	2 Years
Labor Warranty	2 Years
