Description

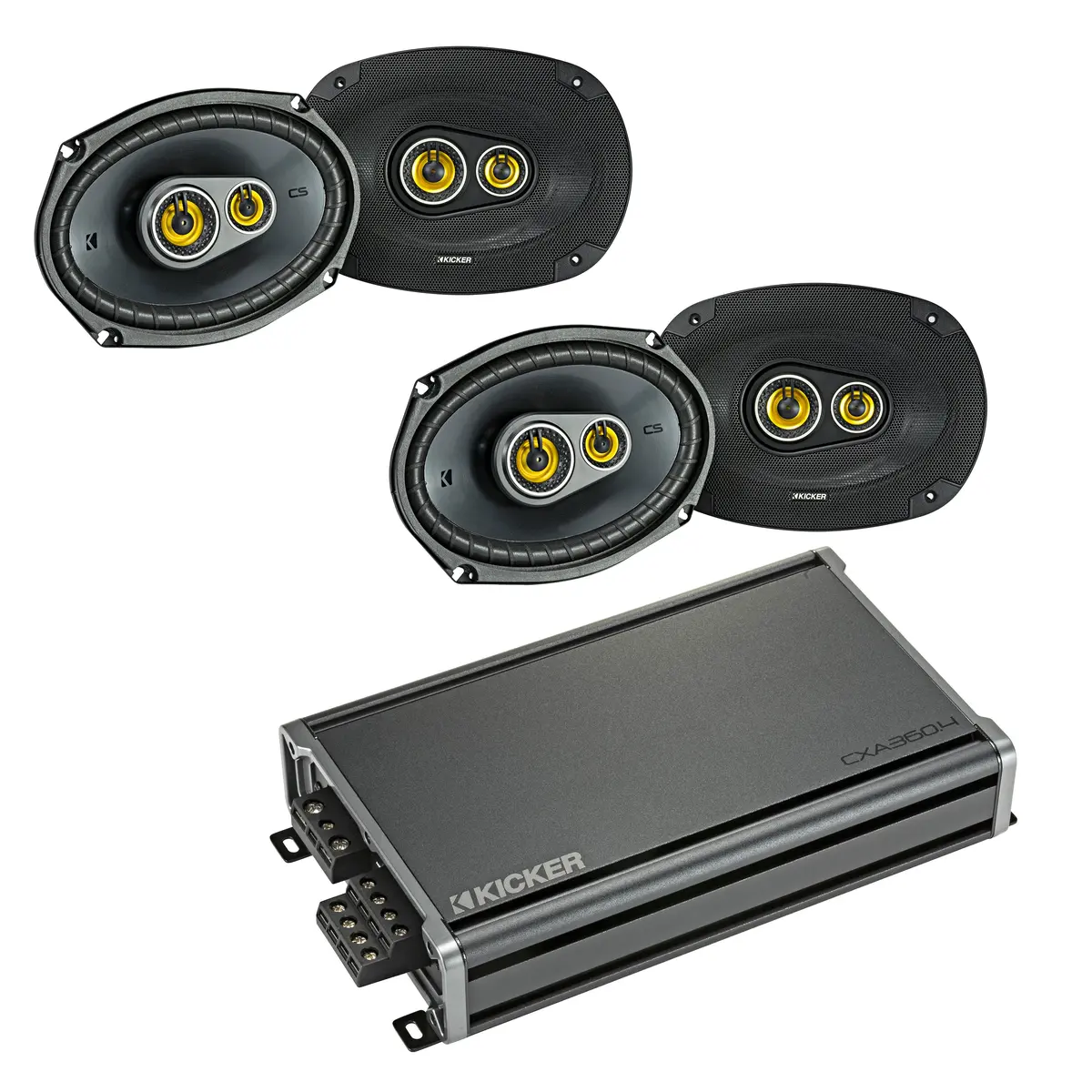

Kicker 46CSC6934 x1 Pair of 6″x9″ 3-Way Speakers + Kicker 46CSC654 x1 Pair of 6.5″ 2-Way Speakers + 46CXA3604T Marine Amplifier Bundle
46CSC6934 Highlights
CS-Series 6×9-inch 3-Way Speakers are the perfect way to upgrade your factory system.
CS-Series 3-Ways deliver remarkable performance and ultra-clean bass with a heavy-duty motor/magnet structure not found in stock speakers. A stamped-steel frame supports a rigid polypropylene cone with EVC™ (Extended Voice Coil) technology for the best sonic quality. Using zero-protrusion PEI tweeters with neodymium magnets, you get the clarity you need without interfering with factory grilles.
The rugged 6×9-inch, 3-way speaker is especially cool. With a massive 300-watt peak power rating, this triaxial driver gives you extraordinary volume, while the integrated 2-inch midrange driver and dedicated tweeter give you crisp, accurate details for the realism you crave.
These CS speakers work best with 150 watts of recommended power.
46CSC6934 Features
- Fits nearly every car made
- Zero-protrusion tweeters to fit nearly any factory depth
- Woofer EVC™ (Extended Voice Coil) tech assists with precise linear excursion
- UV-treated poly-foam surround resists heat or direct sunlight
- Large woofer magnet in a heavy-duty motor for ultra-clean bass
- Integrated 2-inch (50mm) midrange drivers gives detailed attention to mid frequencies
- PEI-tweeter construction provides superb clarity
- Neodymium tweeter magnets allow for increased volume in high frequencies
- Steel mesh grilles included for speaker protection
46CSC6934 Specifications
| Speaker Design | 3-Way |
| Woofer Size | 6 x 9″, 160 x 230 mm |
| Mid Size | 2″, 50 mm |
| Tweeter Size | ½”, 13 mm |
| DC Resistance | 3.5 ohms |
| Peak Power | 450 Watts |
| Continuous Power | 150 Watts RMS |
| Sensitivity [SPLo] | 92 dB @ 1W, 1m |
| Effective Frequency Range | 30-20k Hz |
| Mounting Hole Diameter | 5 ⅝ x 8 ⁷⁄₁₆”, 143 x 215 mm |
| Top Mount Depth | ⁷⁄₁₆”, 12 mm |
| Bottom Mount Depth | 3 ³⁄₁₆”, 81 mm |
| Tweeter Protrusion | ¹⁄₁₆”, 1 mm |
| Grilles | Yes |
| Tweeter Magnet Material | Electric Crystal Motor |
| Tweeter Dome Material | PEI |
| Tweeter Design | Balanced dome |
| Woofer Cone Material | Polypropylene |
| Woofer Surround Material | Polyester foam |
46CSC654 Highlights

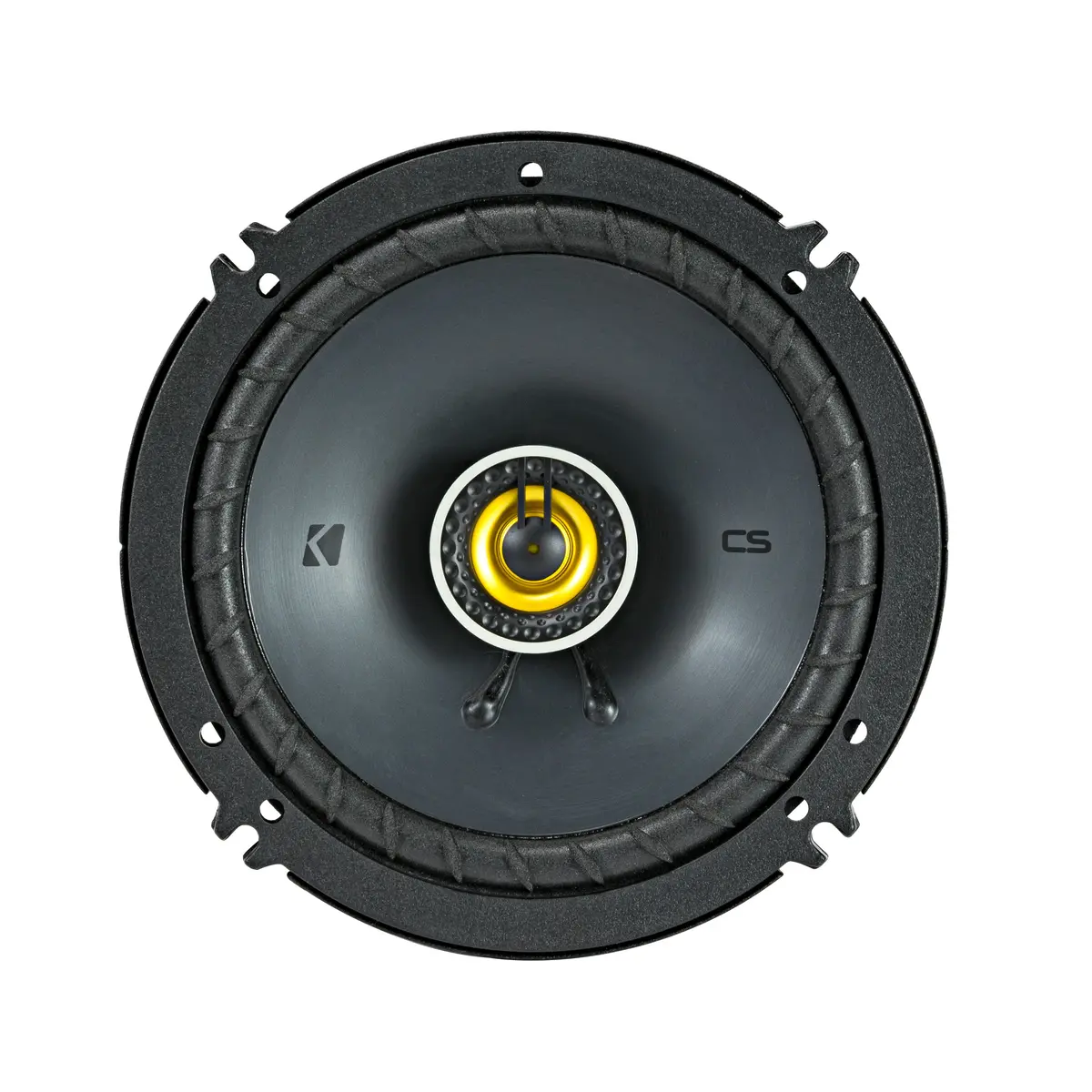

CS-Series 6-1/2-inch Coaxial Speakers are the perfect way to upgrade your factory speakers.
CS-Series Coaxials deliver remarkable performance and ultra-clean bass with a heavy-duty motor/magnet structure not found in stock speakers. The stamped-steel framework supports a rigid polypropylene cone with EVC™ (Extended Voice Coil) technology for the best sonic quality. Using zero-protrusion PEI tweeters with neodymium magnets, you get the clarity you need without interfering with factory grilles.
These CS speakers work best with 100 watts of recommended power.
46CSC654 Features
- Fits nearly every car made
- Zero-protrusion tweeters to fit nearly any factory depth
- Woofer EVC™ (Extended Voice Coil) tech assists with precise linear excursion
- UV-treated poly-foam surround resists heat or direct sunlight
- Large woofer magnet in a heavy-duty motor for ultra-clean bass
- PEI-tweeter construction provides superb clarity
- Neodymium tweeter magnets allow for increased volume in high frequencies
- Steel mesh grilles included for speaker protection
46CSC654 Specifications
| Speaker Design | 2-Way |
| Woofer Size | 6 ½”, 160 mm |
| Tweeter Size | ½”, 13 mm |
| DC Resistance | 3.3 ohms |
| Peak Power | 300 Watts |
| Continuous Power | 100 Watts RMS |
| Sensitivity [SPLo] | dB @ 1W, 1m 90 |
| Effective Frequency Range | Hz 40-20k |
| Mounting Hole Diameter | 4 ¹³⁄₁₆”, 123 mm |
| Top Mount Depth | ⅜”, 9 mm |
| Bottom Mount Depth | 1 ¹¹⁄₁₆”, 43 mm |
| Tweeter Protrusion | 0 |
| Grilles | Yes |
| Tweeter Magnet Material | Neodymium |
| Tweeter Dome Material | PEI [polyether imide |
| Tweeter Design | Balanced dome |
| Woofer Cone Material | Polypropylene |
| Woofer Surround Material | Polyester foam |
Amplifier Highlights
- 4-channel car amplifier
- 65 watts RMS x 4 at 4 ohms (90 watts RMS x 4 at 2 ohms)
- 180 watts RMS x 2 bridged at 4 ohms (4-ohm stable when bridged)
- CTA-2006 compliant
- Class AB amp technology
- Frequency response: 10-20,000 Hz
- Variable high- and low-pass filters (50-200 Hz, 12 dB/octave)
- Variable bass boost (0-6 dB at 40 Hz)
Amplifier Features
- Preamp and speaker-level inputs
- speaker-level inputs require speaker wire to RCA adapters
- Optional remote bass level controller available for rear channels
- 3-second delay for turn-on and turn-off
- Includes hardware for vertical mounting
- Wiring, fuse, and hardware not included with amplifier
-
- 8-gauge power and ground leads and a 40-amp fuse recommended
- Dimensions: 12 ⅞”W x 2 ⅜”H x 6 ¾”D
- Warranty: 2 years
Amplifier Specifications
| Amplifier Class | AB |
| Low-Pass Crossover Frequency | 50-200 Hz |
| Low-Pass Slope | 12 dB / octave |
| High-Pass Crossover Frequency | 50-200 Hz |
| High-Pass Slope | 12 dB / octave |
| Bass Boost | 0-6 dB |
| Bass Boost Frequency | 40 Hz |
| Fuse Rating | 40 |
| Speaker Level Inputs | RCA |
| Preamp Outputs | No |
| RMS Power Output (Watts x Channels) | 65 x 4 |
| Peak Power Output (Watts x Channels) | 180 x 4 |
| Power at 2 Ohms (Watts x Channels) | 90 x 4 |
| Bridged Power (Watts x Channels) | 180 x 2 |
| Minimum Impedance Bridged | 4 |
| Minimum Impedance Unbridged | 2 |
| Minimum Impedance | 2 |
| Best Frequency Response | 10-20000 Hz |
| THD at Rated RMS Power | 1% |
| Signal to Noise Ratio | 75 dB |
| Input Voltage | 14.4v |
Dimensions
| Width | 12 ⅞” |
| Height | 2 ⅜” |
| Depth | 6 ¾” |
| Parts Warranty | 2 Years |
| Labor Warranty | 2 Years |
