Description
Highlights

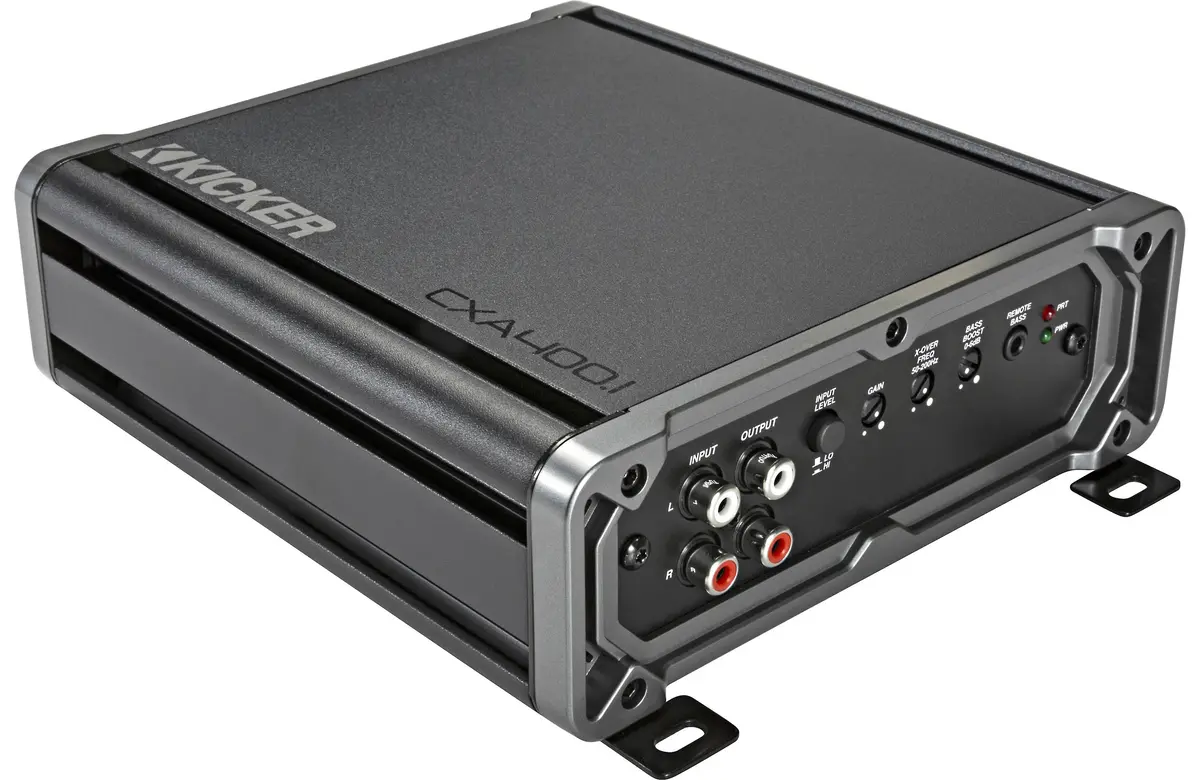

CX-Series Mono Amps are now one-ohm stable, giving you even more power and wiring options for your system! Using efficient Class-D power, the CXA400.1 features a variable bass boost with KickEQ™, giving you as much as a 6dB of extra bump with a simple turn of the optional CXARC Remote Bass Controller. A powerful 12dB crossover and 24dB subsonic filter is included, letting you quickly tune your system to perfection. Use the full-range outputs to expand your system with other bass amps, or a full-range amp to complete your system.
- Efficient Class-D amplifier
- Three-second turn-on/off delay to eliminate unwanted interference
- Variable 12dB crossovers provides control to dial in perfect sound
- KickEQ™ 6dB variable bass boost for those additional low frequencies
- 24dB subsonic filter for protection from potentially damaging frequencies
- FIT+™ (Fail-safe Integration Technology-PLUS) means it works with nearly every radio
- Accepts up to 40-volt input signal
- Small footprint for easier installation
- Compatible with CXARC (link to remote) Remote Bass Control
- Vertical mounting hardware included for another unique look
Features
| RMS Power Output (Watts x Channels) | 150 x 1 |
| Peak Power Output (Watts x Channels) | 800 x 1 |
| Power at 2 Ohms (Watts x Channels) | 300 x 1 |
| Bridged Power (Watts x Channels) | N/A |
| Minimum Impedance Bridged | N/A |
| Minimum Impedance Unbridged | 1 |
| Minimum Impedance | 1 |
| Best Frequency Response | 25-200 Hz |
| THD at Rated RMS Power | 1% |
| Signal to Noise Ratio | 75 dB |
| Input Voltage | 14.4v |
Specifications
| Amplifier Class | D |
| Low-Pass Crossover Frequency | 50-200 Hz |
| Low-Pass Slope (dB/octave) | 12 dB/octave |
| High-Pass Crossover Frequency | N/A |
| High-Pass Slope (dB/octave) | N/A |
| Bass Boost | 0-6 dB |
| Bass Boost Frequency | 40 Hz |
| Fan Cooled | No |
| Fuse Rating | 40 |
| Speaker Level Inputs | Yes |
| Preamp Outputs | 2 |
| Width (inches) | 8-1/2 |
| Height (inches) | 2-3/8 |
| Depth (inches) | 6-3/4 |
| Parts Warranty | 2 Years |
| Labor Warranty | 2 Years |
What’s in the box:
- Mono amplifier
- 2 Vertical mounting brackets
- Four 3/4″ Screws
- Owner’s manual
- Power chart
- Certified Power certificate
