Description
Highlights

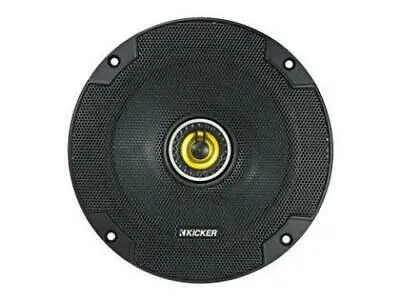

CS-Series 5¼-Inch Coaxial Speakers are an excellent upgrade from factory speakers.
A significant upgrade from your factory sound, the stamped-steel framework supports a rigid polypropylene cone with EVC™ (Extended Voice Coil) technology for the best sonic quality. Using zero-protrusion PEI tweeters with neodymium magnets, you get the clarity you need without interfering with factory grilles.
These CS speakers work best with 75 watts of recommended power. See below for more details.
- Fits nearly every car made
- Zero-protrusion tweeters to fit nearly any factory depth
- Woofer EVC™ (Extended Voice Coil) tech assists with precise linear excursion
- UV-treated poly-foam surround resists heat or direct sunlight
- Large woofer magnet in a heavy-duty motor for ultra-clean bass
- PEI-tweeter construction provides superb clarity
- Neodymium tweeter magnets allow for increased volume in high frequencies
- Steel mesh grilles included for speaker protection
Specifications
| Speaker Design | 2-Way |
| Woofer Size | 5 ¼” / 130 mm |
| Tweeter Size | ½” / 13 mm |
| DC Resistance | 3.4 ohms |
| Peak Power | 225 watts |
| Continuous Power | 75 watts RMS |
| Sensitivity | 90 dB @ 1W, 1m |
| Effective Frequency Range | 45-20k Hz |
| Mounting Hole Diameter | 4 ½” / 115 mm |
| Top Mount Depth | ¼” / 7 mm |
| Bottom Mount Depth | 1 ¾” / 45 mm |
| Grilles | Yes |
| Tweeter Protrusion | 0 |
| Tweeter Magnet Material | Neodymium |
| Tweeter Dome Material | PEI |
| Tweeter Design | Balanced Dome |
| Woofer Cone Material | Polypropylene |
| Woofer Surround Material | Polyester foam |
