Description
Highlights

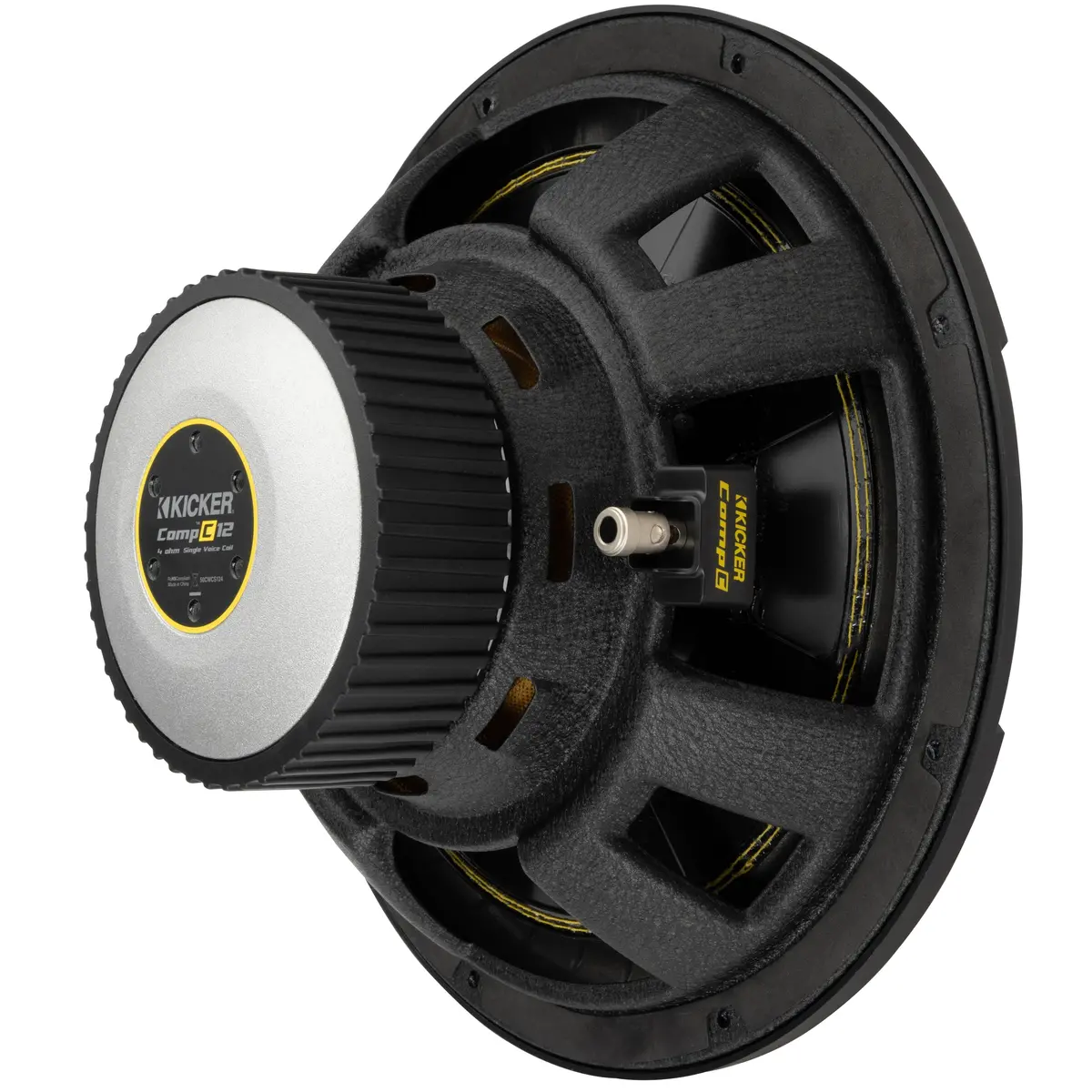

The single-voice-coil CompC Subwoofers make wiring easy with spring-loaded terminals, for easy optimizing of a CX-Series Amplifier. Big power and big bass are easy to get.
- Single Four-Ohm Voice Coil and Reengineered for Increased Excursion and Deeper Bass
- Injection-Molded Polypropylene Cone
- Forced-Air Cooling™ for Outstanding Durability
- Ribbed Polyurethane Surround
- Signature Yellow Surround Stitching
- High-Strength Spiralead™ Tinsel Leads
- Stamped Steel Basket
- High Temp Voice Coil
- Spring-Loaded Speaker Terminals
*The CompC 12-Inch Subwoofer works best with a sealed or ported enclosure and 300 watts of recommended power. See below for more details.
Specifications
| Size | 12 in |
| Recommended Amplifier Power [Watts RMS] |
150-300 |
| Peak Power Handling [watts] |
600 |
| Sensitivity [dB 1w/1m] | 87.3 |
| Rate Impedance [Ohms] |
4 SVC |
| Fs [Hz] |
30.4 |
| Frequency Response (Hz) | 27-500 |
| Outer Frame Dimension [in, cm] | 12-5/8, 32 |
| Mounting Depth [in, cm] | 5-3/4, 14.6 |
| Mounting Cutout [in, cm] | 11, 27.9 |
| Max Rec Sealed Box Vol [cu. ft, liters] | 3.5, 99.1 |
| Min Rec Sealed Box Vol [cu. ft, liters] | 1.25, 35.4 |
| Max Rec Sealed Box Vol [cu. ft, liters] | 2.25, 63.7 |
| Min Rec Vented box Vol [cu. ft, liters] |
2.25, 63.7 |
| Warranty | 1 Year |
Whats in the Box
- One 12″ Single 4-ohm voice coil subwoofer (Grille NOT Included)
- Kicker logo sticker
- 4 Adhesive backed screw covers
- Manual (English/ Spanish/ German/ French)
- Template on box
