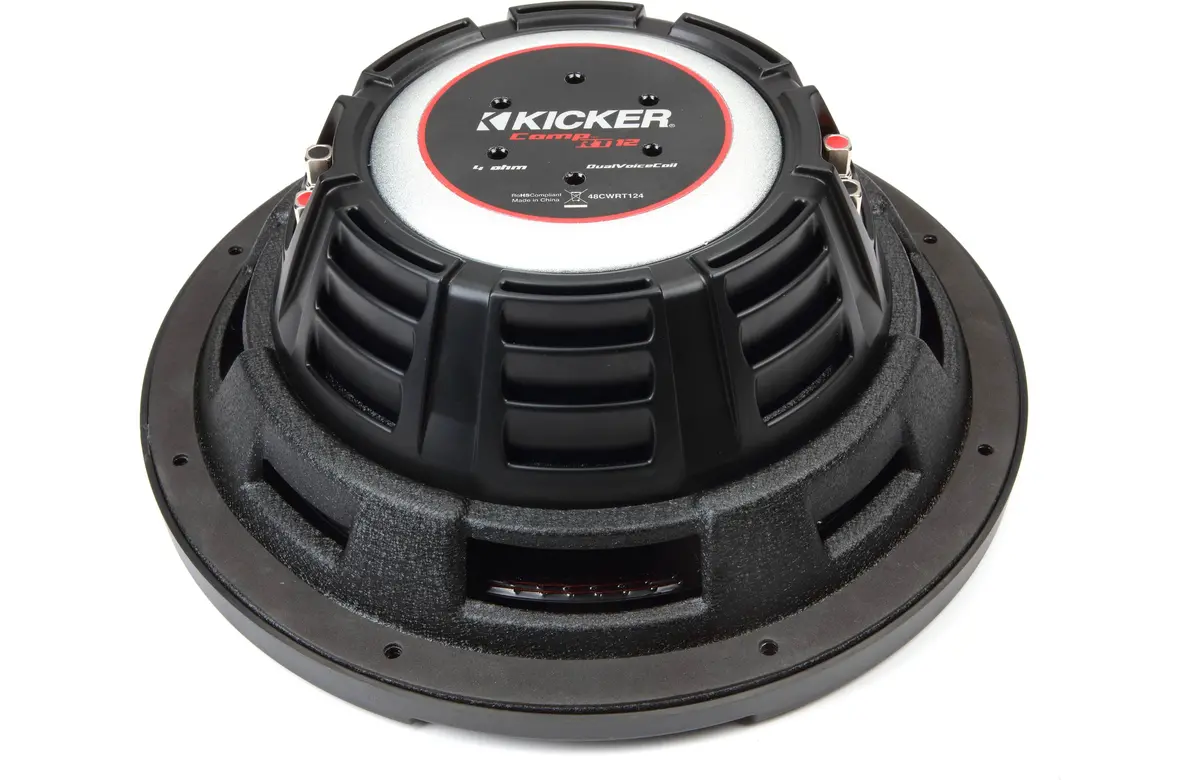

Kicker 48CWR124 12-Inch Shallow-Mount Subwoofer with Dual 4-Ohm Voice Coils

Description

Highlights

• 12″ shallow-mount subwoofer with dual 4-ohm voice coils
• Power handling: 500 watts RMS (1000 watts peak)
• Injection-molded polypropylene cone
• Rubber surround
• Frequency response: 25-500 Hz
• Sensitivity: 85.5 dB
• Top-mount depth: 3.75″
• Sealed box volume: 0.55 – 2.0 cu. ft.
• Ported box volume: 1.6 – 2.25 cu. ft.
• Grille not included

Features

Dual Voice Coils: This woofer features dual 4Ω voice coils, offering wiring flexibility. When the voice coils are wired in parallel, the woofer presents a 2Ω load. When the voice coils are wired in series, the woofer presents an 8Ω load.

Shallow-Mount: Kicker’s CompRT series is designed to minimize depth, giving you subwoofer options where standard enclosures don’t fit.

All-Weather: Although not marine certified, Kicker describes the CompRT series as weatherproof.

Cooling: Kicker engineers developed a Forced Air Cooling system, using the motor structure to pull air across the voice coils, helping the sub run up to 20% cooler than the previous model.

Sealed Enclosures: Sealed enclosures provide the most control over a woofer and provide accurate sonic reproduction, making them suitable to all types of music. Kicker recommends sealed enclosures from 0.55 ft³ to 2.0 ft³.

Vented Enclosures: Vented (or ported) enclosures typically provide better overall efficiency than sealed so they are suitable for use with smaller amplifiers, giving you more bass output from a given amount of power. Kicker recommends the following ported enclosures:

• Minimum Enclosure Volume: 1.75 ft³ with a 12½” x 2½” x 20″ slot port
• Maximum Enclosure Volume: 2.25 ft³ with a 12½” x 3″ x 20½” slot port

Specifications
