Description
Kicker 46CWTB82 8″ 2-Ohm Subwoofer with Weather-Proof Enclosure + 46CXA4001T 400 watt Mono-channel Amplifier + 46CXARCT Bass Tuner Knob + 8 Gauge Amplifier Wiring Kit + 17′ 2-Channel RCA Cable – Amplifier and Subwoofer Bundle
Subwoofer Highlights

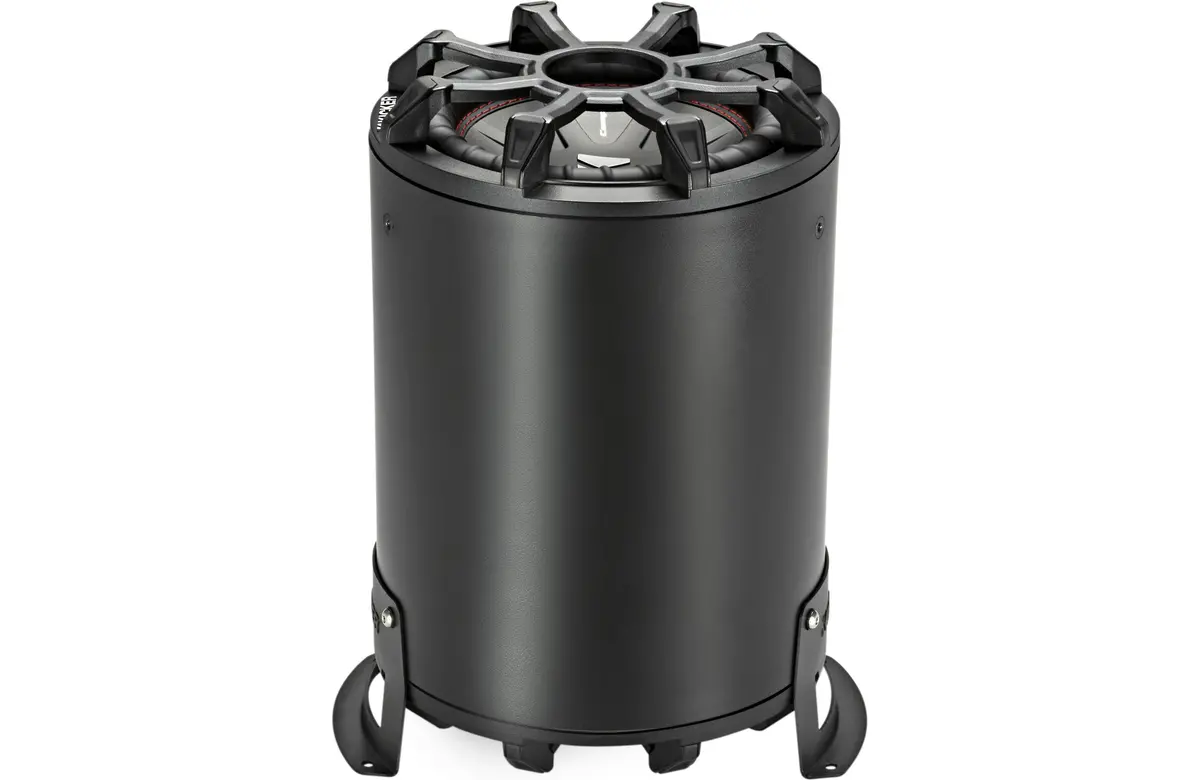

Kicker built the 46CWTB82 tube-shaped enclosure out of tough ABS plastic that’ll stand up to the stresses of car life. The tubular shape pushes bass frequencies into the air like a cannon, pumping deep, resonant sound into your vehicle and your ears. You can mount the enclosure vertically or horizontally, letting it tuck neatly into a corner of your trunk or cargo area. Spring-loaded wiring terminals make it easy to connect the wiring from your amp.
Subwoofer Features
- Sealed enclosure with one 8″ CompR subwoofer and passive radiator
- Tube-shaped ABS plastic enclosure
- Vertical or horizontal mounting
- Mounting brackets, grilles, and hardware included
- Passive radiator augments bass response without port noise
- 2-ohm total impedance
- Power handling: 300 watts RMS (600 watts peak)
- Frequency response: 30-500 Hz
- Sensitivity: 84.4 dB
- Dimensions: 8-1/2″W x 12-7/8″D
- Enclosure height: 8-5/8″ (horizontal), 13-7/16″ (vertical)
Subwoofer Specifications
- Enclosure Type: Reflex
- Driver: 8″ CompR
- Power (RMS/Peak): 300/600 Watts
- Impedance: 2Ω
- Sensitivity (dB 1w/1m): 84.4
- Dimensions: Length – 12.750″, Diameter – 8.50″
Amp Highlights
- Mono subwoofer amplifier.
- 150 watts RMS x 1 at 4 ohms (300 watts RMS x 1 at 2 ohms).
- 400 watts RMS x 1 at 1 ohm.
- CTA-2006 compliant.
- Class D amp technology.
- Frequency response: 25-200 Hz.
- Variable low-pass filter (50-200 Hz, 12 dB/octave).
- Fixed subsonic filter (25 Hz, 24 dB/octave).
- Variable bass boost (0-6 dB at 40 Hz).
Amp Features
- Preamp inputs and outputs.
- Speaker-level inputs (speaker wire to RCA adapters required)
- Optional remote bass level controller available.
- 3-second delay for turn-on and turn-off.
- Includes hardware for vertical mounting.
- Wiring, fuse, and hardware not included with amplifier.
- 8-gauge power and ground leads and a 50-amp fuse recommended.
Amp Specifications
| Amplifier Class | D |
| Low-Pass Crossover Frequency | 50-200 Hz |
| Low-Pass Slope (dB/octave) | 12 dB/octave |
| High-Pass Crossover Frequency | N/A |
| High-Pass Slope (dB/octave) | N/A |
| Bass Boost | 0-6 dB |
| Bass Boost Frequency | 40 Hz |
| Fan Cooled | No |
| Fuse Rating | 40 |
| Speaker Level Inputs | RCA |
| Preamp Outputs | 1 pair |
Kicker 46CXARC Bass Knob
Customize your bass, right from your front seat.
The CXARC is a remote bass controller, compatible with select CX and PX KICKER amplifiers equipped with a REMOTE BASS jack on its end.
8AWG Amplifier Power Kit
- True American Wire Gauge Oxygen Free Copper for High-Current Delivery
- Fine Stranding and Frosted Insulation for Superior Flexibility
- Flux Tinned for Corrosion Resistance
- Double Strength Terminal for Best Power and Reliability
- Compact Mini-ANL Fuse Block Design
This Kit Includes
- 18.5ft 8AWG Power Cable with 6ft Braided Sleeve and Ring Terminal.
- 3ft. 8AWG Ground Cable with Double Strength Terminal.
- 19ft Remote Turn-on Wire.
- (1) Mini- ANL Fuse Block.
- (1) 60A Mini-ANL Fuse.
- (1) Firewall Grommet.
- (2) 8GA Spade Terminals.
- (1) Remote Spade Terminal.
- (1) Remote Butt Connector.
- (2) Fuse Block Mounting Screws.
- (2) Self-Tapping Screws.
- (6) Cable Ties.
M117 17 feet 2-Channel RCA Cable
- 17 ft RCA Cable.
- Coaxial construction.
- Flux Tinned OFC Wires.
- Split-tip Center Pin and Segmented Shield.
- Micro Barrel Design.
- Frosted Outer Jacket.
