Kicker 44L7S122 12-Inch Dual 2-Ohm Voice Coil Subwoofer

Description

Highlights

• 12″ subwoofer with dual 2-ohm voice coils
• Square SoloKon™ polypropylene cone with Santoprene rubber surround
• Cast aluminum basket
• Power handling: 350-750 watts RMS
• Peak power: 1500 watts
• Frequency response: 20-100 Hz
• Sensitivity: 86.9 dB
• Mounting depth: 6-13/16″
• Sealed box volume: 1.25-2.0 cubic feet
• Ported box volume: 1.75-3.25 cu. ft.
• Grille not included
• Warranty: 1 year

Features

Dual Voice Coils: For increased system flexibility, the woofer has two 2Ω voice coils. When the voice coils are wired in parallel, the woofer presents a 1Ω load; when wired in series, the woofer presents a 4Ω load.

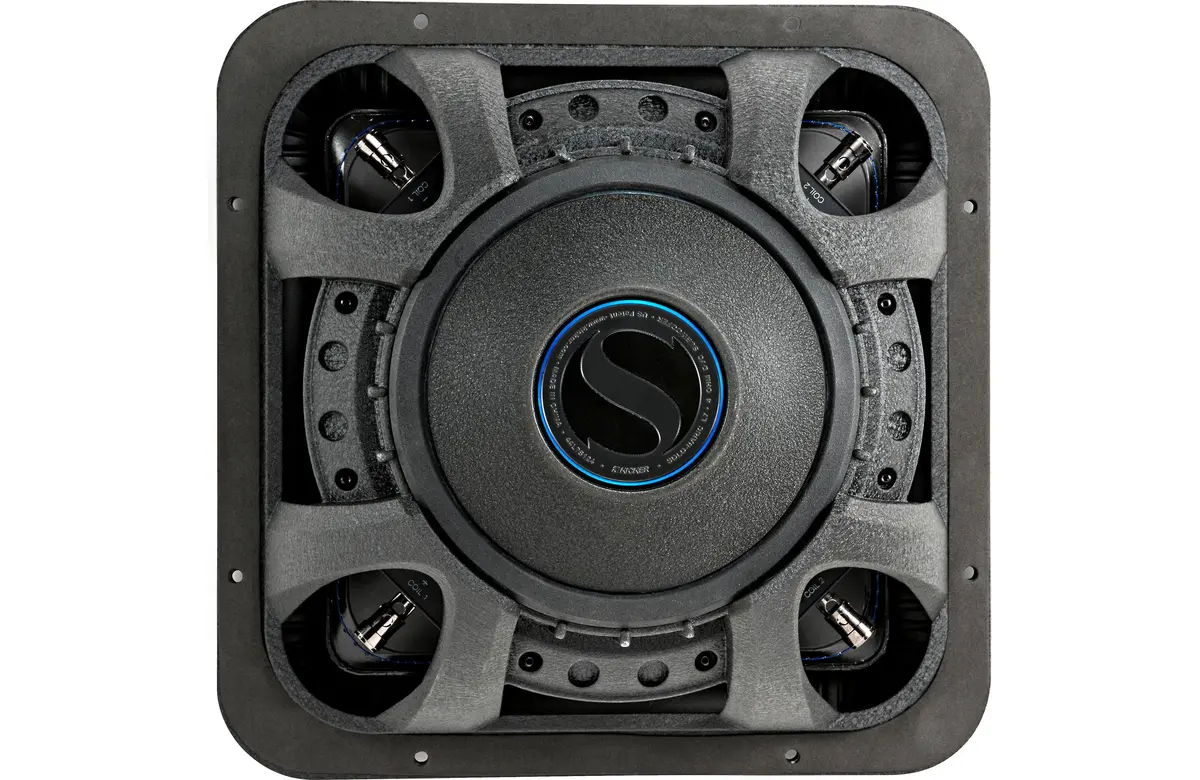

Square Design: By making the Solo-Baric square, Kicker is giving you the most possible cone area (Sd) for a given size baffle, 16% to 20% more area than a conventional round subwoofer. More cone area means the cone moves more air, resulting in louder, deeper bass.

Cone Material: The square SoloKon design is a unique one-piece construction, using injection molded polypropylene that moves as a lightweight piston, for improved control. A rear cone brace integrates into the cone with a continuous contact perimeter weld, which improves strength and resistance to deformation under pressure.

Surround: The tough, flexible Santoprene rubber surround has a long-throw, positive-roll design, which controls extreme cone excursion and is tear-resistant. The corners of the surround are ribbed to ensure linear cone motion. The surround is stitched to the reinforced cone edge to improve durability.

Speaker Terminals: The terminals are spring loaded and nickel plated for solid connections with speaker wire up to 10 gauge.

Break-in Period: Due to the complex nature of Kicker Solo-Baric L7S woofers, they require a break-in period in order to produce optimum bass response. The high-performance suspension system makes the speakers very stiff out-of-the-box. Approximately two weeks of daily playing will allow the suspension to break-in and reach its optimum equilibrium. A broken-in subwoofer will exhibit stronger bass performance, smoother response, and greater low-bass extension.
